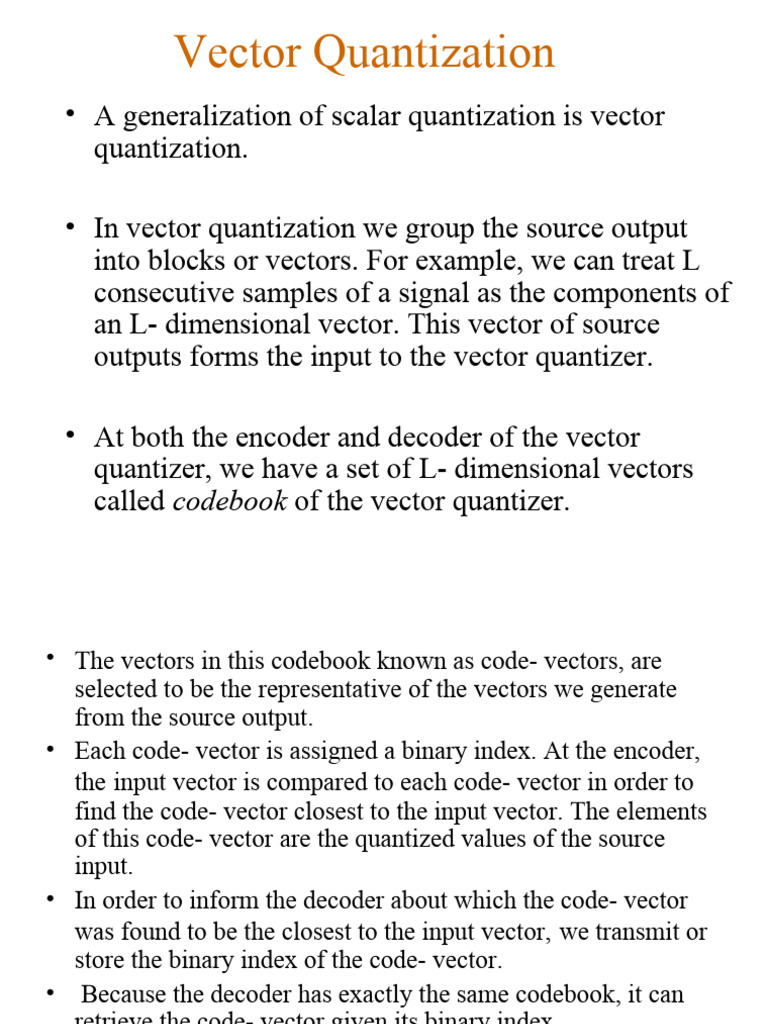

• A generalization of scalar quantization is vector
quantization.
• In vector quantization we group the source output
into blocks or vectors. For example, we can treat L consecutive samples of a signal as the components of an L- dimensional vector. This vector of source outputs forms the input to the vector quantizer.
• At both the encoder and decoder of the vector
quantizer, we have a set of L- dimensional vectors called codebook of the vector quantizer. • The vectors in this codebook known as code- vectors, are selected to be the representative of the vectors we generate from the source output. • Each code- vector is assigned a binary index. At the encoder, the input vector is compared to each code- vector in order to find the code- vector closest to the input vector. The elements of this code- vector are the quantized values of the source input. • In order to inform the decoder about which the code- vector was found to be the closest to the input vector, we transmit or store the binary index of the code- vector. • Because the decoder has exactly the same codebook, it can retrieve the code- vector given its binary index Encoder Decoder
Source output
Reconstruction
Group into Final closest Table lookup
vectors code vector
Unblock
Code book Index Index Code book
Generalized Lloyd Algorithm K-Means Algorithm for VQ (Linde -Buzo –Gray (LBG algo.) (Same as GLA(Scalar & VQ)) Problem Training Samples 4,6,5,10,9,6,8,9,3,9,10,10,2,8,8,4,5,1,4,2 Dimension of VQ = 2 Size of the code book = 3 Initial Code Vectors : c1 = [ 5 3 ], c2 =[6, 9], c3 = [10,7] Use Squared Error Distortion Design the codebook such that average distortion is less than 4.5. Solution • Using Squared error distortion, three clusters are obtained as :
Centroids of clusters – c1’, c2’, c3’, calculate D2 &
continue until D becomes less than 4.5.
Obtain the final code book
Initial set of Vectors Splitting Method Codebook Searching 1. Final Code words distributed symmetrically Quadrant Approach (less symmetrical) To reduce Searching time – Tree structure Design of Tree Structured VQ Instead of imposing the tree structure after the design of the code book, we can design the code book within the frame work of the tree structure.
Identical to splitting technique discussed earlier.
Mean of all training vectors – First vector
Perturb it to obtain a second vector Test Vector 0 & Test Vector 1
Obtain Group 0 and Group 1
• Use the training set vectors in Group 0 alone to design 2 –level VQ with output points 00 & 01 • Group 1 training set to design 2 –level VQ with 0utput points 10 &11 • Vectors in Group 0 split into Group 00 & Group 01 • Vectors in Group 1 split into Group 10 & 11. • Now vectors 00,01,10 & 11 form 4 level VQ. • Continue this until we get the required number of output points(code vectors) Differential Encoding (Self Study) • DPCM • ADPCM • DM • ADM
