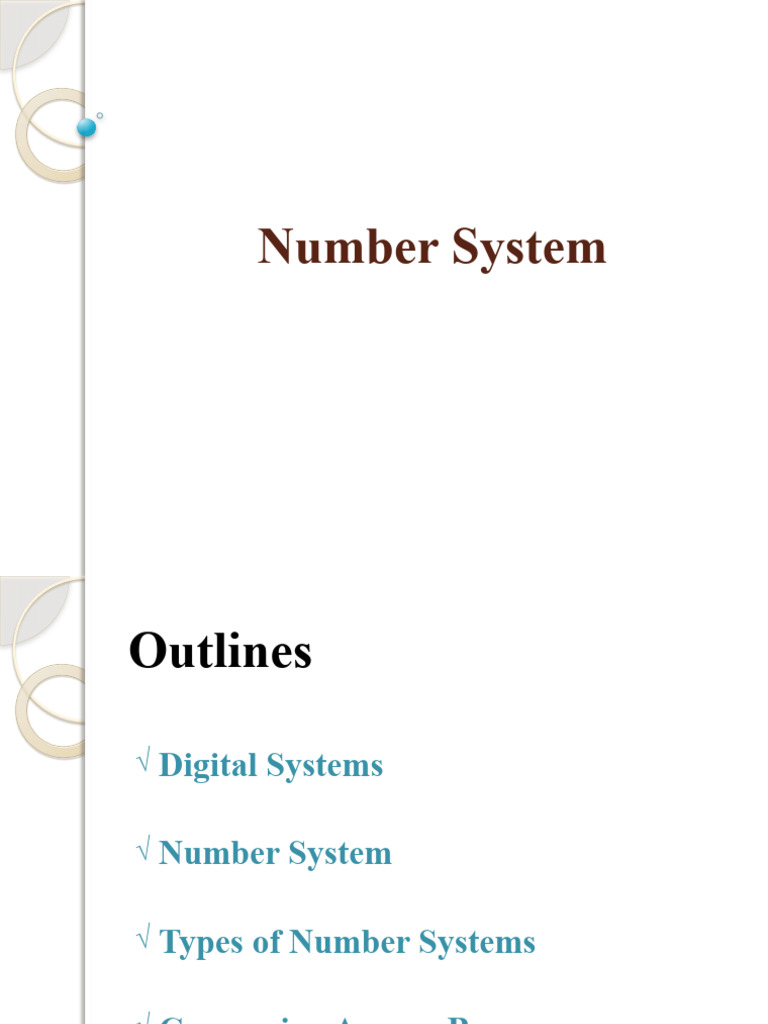

Number System

Outlines

√ Digital Systems

√ Number System

√ Types of Number Systems

√ Conversion Among Bases

 DIGITAL SYSTEMS
• Digital means electronic technology that generates, stores,

and processes data in terms of two states: +ve and -ve.

• digital system is a data technology that uses discrete
(discontinuous) values represented by high and low states
known as bits. By contrast, non-digital (or analog) systems
use a continuous range of values to represent information.
• Although it’s representations can be discrete(i.e, numbers,
letters or icons) or continuous, such as; sounds, images, and
others
 Introduction
• Number system can be defined as the method or
format which is used for denoting a numerical value
• We are all familiar with the number system in which
an ordered set of ten symbols 0, 1, 2, 3, 4, 5, 6, 7, 8,
9 which are known as digits are used to specify any
number.
• Digital computer represent all kinds of data and
information in binary numbers
◦ Includes audio, graphics, video, text and numbers
 Total number of digits used in the number system is
called its base or radix
Con’t ...
• Positional Notation:
For example decimal numbering system uses the
base or radix as 10 whereas hexadecimal system
uses 16 as base
Example: 1234 = 1 (103) + 2 (102) + 3(101)
+4(100)
In this example, the base or radix used is 10
Con’t ...
•Weights:
In a number system weight denotes the
positional value of each digit in the
number.
For example, suppose to denote the number
3125 we can also write it as:
(3 * 1000) + (1 * 100) + (2 * 10) + (5 * 1)
Types of Number Systems
• There are various types of number system
√ Decimal Number System
√ Binary Number System
√ Octal Number System
√ Hexadecimal Number System
◦ Decimal number system is used in general
◦ Computers used binary number system
◦ Octal and hexadecimal number system are also used in
computer systems
Decimal Number System
• Decimal system consists of 10 digits
starting from 0 to 9. This number system
has ten as its base.
• Now consider the example 246.45, this
value is formed by adding each digit
which are multiplied by the base in the
power of digit position. It is represented as
follows
2 * 102 + 4 * 101 + 6 * 100 . 4 * 10-1 + 5
*10-2
Binary Number System
• It is the simplest form of number system.
It consists of only two digits in base
which are 0 and 1 or on and off
respectively
• Each single digit in the binary system is
called as a bit (i.e; 2-bit,4-bit, 8-bit(byte))
& etc.
Octal Number System

• It is one of the most commonly used number

system in computers.
• It is used in programming because of its
similarity to binary number system
• A single octal digit is equal to three binary
digits. Octal Number System uses the base as
8
For Example convert (23) 8 to decimal
equivalent
(23)8 = 2(81) + 3(80) = 19
Octal Number System ...
Convert Octal to Binary
1.(65)8=(?)2
2.(23)8=(?)2
Convert Binary to Octal
1.(1110)2=()8
2.(1011)2=()8
Hexadecimal Number System

• This number system is used for larger

numbers.
• Hexadecimal number system uses the
base as 16
• In hexadecimal number system the
number 0 to 9 are denoted normally then
the numbers 10 to 15 are denoted by
alphabets A through F respectively
Hexadecimal Number System ...
• Convert Hexdecimal number to Decimal
number
1.(AD)16=(?)10
2.(BC4)16=(?)10
SIGNED BINARY NUMBERS
• In mathematics, positive numbers are represented as
unsigned numbers. That is we do not put the +ve sign in
front of them to show that they are positive numbers.
• However, when dealing with negative numbers we do use
a -ve sign in front of the number to show that the number
is negative in value, so same is true with signed binary
numbers
• However, in digital circuits there is no provision made to
put a plus or even a minus sign to a number ...
Con’t ...
• For signed binary numbers the most
significant bit (MSB) is used as the sign.
• If the sign bit is “0” +ve, If the sign bit is
“1” then -ve.
• The remaining bits are used to represent
the magnitude of the binary number.
Conversion Among Bases
 The possibilities:

Decimal Octal

Binary Hexadecimal
Quick Example

2510 = 110012 = 318 = 1916

Base
Decimal to Decimal

Decimal Octal

Binary Hexadecimal
 Weight

12510 => 5 x 100 = 5

2 x 101 = 20
1 x 102 = 100
125

Base
Binary to Decimal

Decimal Octal

Binary Hexadecimal
Binary to Decimal
 Technique
◦ Multiply each bit by 2n, where n is the “weight” of the bit
◦ The weight is the position of the bit, starting from 0 on the
right
◦ Add the results
Example

Bit “0”

1010112 => 1 x 20 = 1
1 x 21 =
2
0 x 22 =
0
1 x 23 =
8
0 x 24 =
0
1 x 25 =
32
Octal to Decimal

Decimal Octal

Binary Hexadecimal
Octal to Decimal
 Technique
◦ Multiply each bit by 8n, where n is the “weight” of the bit
◦ The weight is the position of the bit, starting from 0 on the
right
◦ Add the results
Example

7248 => 4 x 80 = 4
2 x 81 = 16
7 x 82 = 448
46810
Hexadecimal to Decimal

Decimal Octal

Binary Hexadecimal
Hexadecimal to Decimal
 Technique
◦ Multiply each bit by 16n, where n is the “weight” of
the bit
◦ The weight is the position of the bit, starting from 0 on the
right
◦ Add the results
Example

ABC16 => C x 160 = 12 x 1 = 12

B x 161 = 11 x 16 = 176
A x 162 = 10 x 256 = 2560
274810
Decimal to Binary

Decimal Octal

Binary Hexadecimal
Decimal to Binary
 Technique
◦ Divide by two, keep track of the remainder
◦ First remainder is bit 0 (LSB, least-significant bit)
◦ Second remainder is bit 1
◦ Etc.
Example
12510 = ?2 2 125
2 62 1
2 31 0
2 15 1 12510 = 11111012
2 7 1
2 3 1
2 1 1
0 1
Octal to Binary

Decimal Octal

Binary Hexadecimal
Octal to Binary
 Technique
◦ Convert each octal digit to a 3-bit equivalent binary
representation
Example

7058 = ?2

7 0 5

111 000 101

7058 = 1110001012
Hexadecimal to Binary

Decimal Octal

Binary Hexadecimal
Hexadecimal to Binary
 Technique
◦ Convert each hexadecimal digit to a 4-bit equivalent binary
representation
Example

10AF16 = ?2

1 0 A F

0001 0000 1010 1111

10AF16 = 00010000101011112
Decimal to Octal

Decimal Octal

Binary Hexadecimal
Decimal to Octal
 Technique
◦ Divide by 8
◦ Keep track of the remainder
Example

123410 = ?8
8 1234
8 154 2
8 19 2
8 2 3
0 2

123410 = 23228
Decimal to Hexadecimal

Decimal Octal

Binary Hexadecimal
Decimal to Hexadecimal
 Technique
◦ Divide by 16
◦ Keep track of the remainder
Example

123410 = ?16

16 1234
16 77 2
16 4 13 = D
0 4

123410 = 4D216
Binary to Octal

Decimal Octal

Binary Hexadecimal
Binary to Octal
 Technique
◦ Group bits in threes, starting on right
◦ Convert to octal digits
Example
10110101112 = ?8

1 011 010 111

1 3 2 7

10110101112 = 13278
Binary to Hexadecimal

Decimal Octal

Binary Hexadecimal
Binary to Hexadecimal
 Technique
◦ Group bits in fours, starting on right
◦ Convert to hexadecimal digits
Example
10101110112 = ?16

10 1011 1011

2 B B

10101110112 = 2BB16
Octal to Hexadecimal

Decimal Octal

Binary Hexadecimal
Octal to Hexadecimal
 Technique
◦ Use binary as an intermediary
Example
10768 = ?16

1 0 7 6

001 000 111 110

2 3 E

10768 = 23E16
Hexadecimal to Octal

Decimal Octal

Binary Hexadecimal
Exercise – Convert ...

Hexa-
Decimal Binary Octal decimal
33
1110101
703
1AF
Exercise – Convert …
Hexa-
Decimal Binary Octal decimal
33 100001 41 21
117 1110101 165 75
451 111000011 703 1C3
431 110101111 657 1AF
Binary Codes
BINARY CODES
• The digital data is represented, stored and
transmitted as group of binary bits. This group
is also called as binary code.
• The binary code is represented by the number as
well as alphanumeric letter.
√ Advantages of Binary Code
• Suitable for the computer applications
• Suitable for the digital communications
• It make the analysis and designing of digital
circuits if we use the binary codes.
• Since only 0 & 1 are being used,
implementation becomes easy
Classification of binary codes
• Broadly categorized into following categories:
√ Weighted Codes
√ Non-Weighted Codes
√ Binary Coded Decimal
√ Alphanumeric Codes
√ Error Detecting Codes
√ Error Correcting Codes
Weighted Codes

• Those binary codes which obey the positional

weight principle.
• Each position of the number represents a
specific weight.
• In these codes each decimal digit is represented
by a group of four bits.
Non-Weighted Codes
• In this type of binary codes, the positional
weights are not assigned.
• The examples of non-weighted codes are
Excess-3 code and Gray code.
Excess-3 code:
• The Excess-3 code is also called as XS-3
code.
• It is non-weighted code used to express
decimal numbers
Con’t ...
• The Excess-3 code words are derived from
the 8421 BCD code words adding (0011)2
or (3)10 to each code word in 8421.
Gray Code:
• It is the non-weighted code and it is not
arithmetic codes. That means there are no
specific weights assigned to the bit
position.
• It has a very special feature that, only one
bit will change each time the decimal
number is incremented
BCD Code

• BCD stands for Binary Coded Decimal. It

combines some of the characteristics of
both the binary and decimal systems
• The BCD code represents the decimal
digits 0 through 9 with a four bit binary
code.
• It uses the standard 8421 position
weighing system of the pure Binary code.
For example, the number 834 in BCD
would be 1000 0011 0100.
BCD Code ...
• In the BCD, with four bits we can
represent sixteen numbers (0000 to 1111).
• But in BCD code only first ten of these
are used (0000 to 1001).
• The remaining six code combinations i.e.
1010 to 1111 are invalid in BCD
Advantages of BCD Codes
• It is very similar to decimal system
• We need to remember binary equivalent
of decimal numbers 0 to 9 only
Disadvantages of BCD Codes:
√ The addition and subtraction of BCD have
different rules
√ The BCD arithmetic is little more complicated.
√ BCD needs more number of bits than binary to
represent the decimal number.
Alphanumeric codes
• A binary digit or bit can represent only two
symbols as it has only two states '0' or '1'.
• But this is not enough for communication
between two computers
• So, more symbols are required to represent
26 alphabets with capital and small letters,
numbers from 0 to 9, punctuation marks and
other symbols.
• An alphanumeric code should at least
represent 10 digits and 26 letters of alphabet
Alphanumeric codes ...

The following three alphanumeric codes are very

commonly used for the data representation:
a. American Standard Code for Information
Interchange (ASCII) 7-bit.
b. Extended Binary Coded Decimal Interchange
Code (EBCDIC) 8-bit.
c. Five bit Baudot Code.
Error Codes:
• There are binary code techniques available to
detect and correct data during data transmission
Excess-3 to BCD Conversion

• Step 1 -- Subtract (0011)2 from each 4 bit of

excess-3 digit to obtain the corresponding BCD
code.
• Example − convert (10011010)XS-3 to BCD.
Given XS-3 number = 1 0 0 1 1 0 1 0
Subtract (0011)2 = 0 0 1 1 0 0 1 1
Result
(10011010)XS-3 = ( ? )BCD
COMPLIMENTS
• Compliments are used in digital
computers to simplify the subtraction
operation and for logical manipulation.
• Simplifying operations leads to simpler,
less expensive circuits to implement the
operations.
• There are 2 types of complements for
each base r system
• (1) The radix complement (r’s)
• (2) Diminished radix compliment r-1’s
Con’t ...
• The (r-1)'s Complement: Subtract each digit
of a number from (r-1)
Example: -
- 9's complement of 83510 is 16410
- 1's complement of 10102 is 01012(bit by bit
complement operation)
• The r's Complement: Add 1 to the low-order
digit of its (r-1)'s complement
Example:
- 10's complement of 83510 is 16410 + 1 = 16510
- 2's complement of 10102 is 01012 + 1 = 01102
Binary Subtraction Using 2's Complement

• Before we start binary subtraction, we

first need to understand what 1’s and 2’s
complement is.
• All information in the system memory is
stored in binary, meaning all integers are
stored in the memory in various
combinations of 0’s and 1’s.
• 1’s complement is taken by inverting all
the binary digits in the number, i.e.
replacing 0’s with 1’s and 1’s with 0’s.
Cont ...
• For example, the 1’s complement of
(100101)2 is (011010)2
• 2’s complement on the other hand enables
us to denote both positive numbers and
negative numbers in the binary system.
• The most significant bit in the 2’s
complement representation of a binary
number denotes its sign, i.e. whether it is
+ve or -ve.
Cont ...
• 2’s complement of a number can be found
by adding a 1 to the 1’s complement of a
number
From the example above, we find the 1’s
complement of (100101)2​to be (011010)2
Now, the 2’s complement of (100101)2​is
(011011)2
• A point to note is that 1’s and 2’s
complement are used to represent signed
numbers. ... MSB
Cont ...

• As we can see here, the number (−6)10 will be

denoted as (11010)2 and (6)10 will be denoted as
(00110)2
Cont ...
• In computers, subtraction of numbers is
done using addition of one number with
the 2’s complement of the other.
e.g: (X-Y) = X + (2’s complement of Y)
• Note: both the binary numbers must have
the same number of bits.
• If they do not, then we need to pad the
shorter number with 0’s to its left.
Cont ...
• The addition of binary bits is as follows:

• note: from the table above is that binary addition and

subtraction is the same as XOR operation.
Exercise
let us subtract 5 from 7; (hint: use binary
subtraction)

Ans: ?
