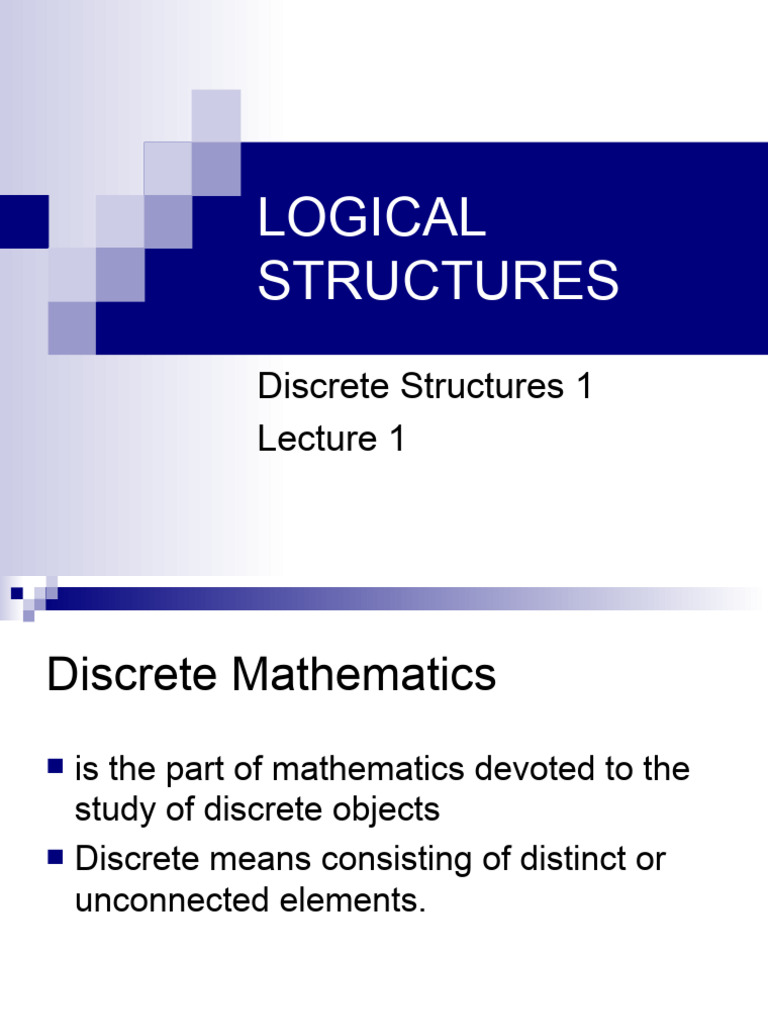

LOGICAL

STRUCTURES
Discrete Structures 1
Lecture 1
Discrete Mathematics
 is the part of mathematics devoted to the
study of discrete objects
 Discrete means consisting of distinct or
unconnected elements.

Discrete Mathematics and Its Applicatio 2

ns by Kenneth H. Rosen
LOGIC
 is the study of reasoning.
 is specially concerned with whether
reasoning is correct
 focuses on the relationship among
statements as opposed to the content of
any particular statement

Discrete Mathematics and Its Applicatio 3

ns by Kenneth H. Rosen
PROPOSITION
 A proposition is a declarative sentence
that is either true or false, but not both.
 Example:
 Manila is the capital of the Philippines.
 1 + 1 = 3.
 2 < 5.
 Today is Friday.

Discrete Mathematics and Its Applicatio 4

ns by Kenneth H. Rosen
PROPOSITION
 Consider the following sentences:
 What time is it?
 Read this carefully.
 x + 1 = 2.
 x + y = z.
 Sentences 1&2 are not propositions because
they are not declarative sentences. Sentences
3&4 are not propositions because they are
neither true nor false, since the variables in
these sentences have not been assigned
values.

Discrete Mathematics and Its Applicatio 5

ns by Kenneth H. Rosen
PROPOSITION
 An atomic proposition is a proposition
whose truth or falsity is independent of any
other propositions.
 A compound proposition is formed from
existing propositions using logical
operators.

Discrete Mathematics and Its Applicatio 6

ns by Kenneth H. Rosen
PROPOSITION
 Conventional letters used to denote
propositions are p, q, r, s,…
 The truth value of a proposition is true,
denoted by T, if it is true and false,
denoted by F, if it is a false proposition.

Discrete Mathematics and Its Applicatio 7

ns by Kenneth H. Rosen
Propositional Logic
Operators
NEGATION
 Let p be a proposition. The statement
“It is not the case that p”
is another proposition called the negation
of p.
 The negation of p is denoted by p. The
proposition is read “not p.”

Discrete Mathematics and Its Applicatio 9

ns by Kenneth H. Rosen
NEGATION
 Example:
p: Today is Friday.
p: It is not the case that today is
Friday.
or
Today is not Friday.

Discrete Mathematics and Its Applicatio 10

ns by Kenneth H. Rosen
NEGATION
 Truth Table

p p

T F

F T

Discrete Mathematics and Its Applicatio 11

ns by Kenneth H. Rosen
Exercise
Give the negation of the following
propositions:
1. John missed the final examinations.
2. Mary is a vegetarian.
3. 1 + 5 = 9.
4. 4 > 0.

Discrete Mathematics and Its Applicatio 12

ns by Kenneth H. Rosen
CONJUNCTION
 Let p and q be propositions. The
proposition “p and q”, denoted p  q, is the
proposition that is true when both p and q
are true and is false otherwise. The
proposition p  q is called the conjunction
of p and q.

Discrete Mathematics and Its Applicatio 13

ns by Kenneth H. Rosen
CONJUNCTION
 Example:
p: Today is Friday.
q: It is raining today.
p  q: Today is Friday and it is raining
today.

Discrete Mathematics and Its Applicatio 14

ns by Kenneth H. Rosen
CONJUNCTION
 Truth Table:

p q pq
T T T
T F F
F T F
F F F

Discrete Mathematics and Its Applicatio 15

ns by Kenneth H. Rosen
Exercise
 Let p and q be the propositions
p: It is below freezing.
q: It is snowing.
Write these propositions using p and q and
logical connectives.
a. It is below freezing and snowing.
b. It is below freezing but not snowing.
c. It is not below freezing and it is not snowing.

Discrete Mathematics and Its Applicatio 16

ns by Kenneth H. Rosen
Exercise
 Calculate the truth values:
a. (1>0)  (2<1)
b. (0<1)  (1<2)
 Write out the truth tables for
a. p  (q)
b. (p  q)  r

Discrete Mathematics and Its Applicatio 17

ns by Kenneth H. Rosen
DISJUNCTION
 Let p and q be propositions. The
proposition “p or q”, denoted p  q, is the
proposition that is false when p and q are
both false and true otherwise. The
proposition p  q is called the disjunction
of p and q.

Discrete Mathematics and Its Applicatio 18

ns by Kenneth H. Rosen
DISJUNCTION
 Example 1:
p: Today is Friday.
q: It is raining today.
p  q: Today is Friday or it is raining today.
 Example 2:
r: I want to eat chicken.
s: I want to eat spaghetti.
r  s: I want to eat chicken or spaghetti.

Discrete Mathematics and Its Applicatio 19

ns by Kenneth H. Rosen
DISJUNCTION
 Truth Table:

p q pq
T T T
T F T
F T T
F F F

Discrete Mathematics and Its Applicatio 20

ns by Kenneth H. Rosen
Exercise
 Let p and q be the propositions
p: The election is decided.
q: The votes have been counted.
Express each of these compound
propositions as an English sentence:
a. p  q
b. q  (p  q)

Discrete Mathematics and Its Applicatio 21

ns by Kenneth H. Rosen
Exercise
 Calculate the truth values (assuming p =
T, q = F, r = F)
a.  p  (q  r)
b. (p  q)  (p  r)
 Write out the truth tables for
a. p  (p  q)
b. (q  r)  (p  q)

Discrete Mathematics and Its Applicatio 22

ns by Kenneth H. Rosen
EXCLUSIVE OR
 Let p and q be propositions. The exclusive
or of p and q, denoted by pq, is the
proposition that is true when exactly one of
p and q is true and false otherwise.

Discrete Mathematics and Its Applicatio 23

ns by Kenneth H. Rosen
EXCLUSIVE OR
 Example:
p: Students who have taken calculus
can enroll in this class.
q: Students who have taken computer
science can enroll in this class.
p  q: Students who have taken
calculus or computer science,
but not both, can enroll in this class.

Discrete Mathematics and Its Applicatio 24

ns by Kenneth H. Rosen
EXCLUSIVE OR
 Truth Table:

p q pq
T T F
T F T
F T T
F F F

Discrete Mathematics and Its Applicatio 25

ns by Kenneth H. Rosen
IMPLICATION
 Let p and q be propositions. The
implication p  q is the proposition that is
false when p is true and q is false, and
true otherwise. In this implication p is
called the hypothesis (or antecedent or
premise) and q is called the conclusion (or
consequent).

Discrete Mathematics and Its Applicatio 26

ns by Kenneth H. Rosen
IMPLICATION
 Example:
p: I am elected.
q: I will lower taxes.

p  q: If I am elected, then I will

lower taxes.

Discrete Mathematics and Its Applicatio 27

ns by Kenneth H. Rosen
IMPLICATION
 Ways to express implication:

“if p, then q” “p implies q”

“if p, q” “p only if q”
“q if p” “q whenever p”
“q when p” “q is necessary for p”
“q follows from p”“p is sufficient for q”
“a sufficient condition for q is p”
“a necessary condition for p is q”

Discrete Mathematics and Its Applicatio 28

ns by Kenneth H. Rosen
Exercise
 State each statement in the form “if p, then
q” in English:
a. It snows whenever the wind blows from the
northeast.
b. The apple trees will bloom if it stays warm for a
week.
c. It is necessary to walk 8 miles to get to the top
of Long’s Peak.
d. To get tenure as a professor, it is sufficient to be
world-famous.
e. Your guarantee is good only if you bought your
CD player less than 90 days ago.

Discrete Mathematics and Its Applicatio 29

ns by Kenneth H. Rosen
IMPLICATION
 Truth Table:

p q pq
T T T
T F F
F T T
F F T

Discrete Mathematics and Its Applicatio 30

ns by Kenneth H. Rosen
IMPLICATION
 q  p is called the converse of p  q.

 q  p is called the contrapositive of

pq.

 p  q is called the inverse of pq

Discrete Mathematics and Its Applicatio 31

ns by Kenneth H. Rosen
IMPLICATION
 What is the contrapositive, converse, and
inverse of the ff. propositions
a. The home team wins whenever it is raining.
b. That you get a job implies that you had the best
credentials.
c. To be a citizen of this country, it is sufficient that
you were born in the Philippines.
d. I will remember to send you the address only if
you send me an e-mail message.

Discrete Mathematics and Its Applicatio 32

ns by Kenneth H. Rosen
IMPLICATION
 The contrapositive, q  p, of an
implication p  q has the same truth value
(or equivalent) as p  q.
 Neither the converse nor the inverse have
the same truth value as p  q for all
possible truth values of p and q.

Discrete Mathematics and Its Applicatio 33

ns by Kenneth H. Rosen
Exercise
 Determine whether these implications
are true or false:
a. If 1+1=2, then 2+2=5.
b. If 1+1=3, then 2+2=4.
c. If pigs can fly, then 1+1=3.
d. If 1+1=3, then pigs can fly.

Discrete Mathematics and Its Applicatio 34

ns by Kenneth H. Rosen
Exercise
 Construct the truth table for each of
these compound propositions:
a. (p  q)  (p q)
b. (p  q)  (p  q)
c. p  (q  r)
d. (p  q)  (p  r)

Discrete Mathematics and Its Applicatio 35

ns by Kenneth H. Rosen
BICONDITIONAL
 Let p and q be propositions. The
biconditional p  q is the proposition that
is true when p and q have the same truth
values, and is false otherwise.

Discrete Mathematics and Its Applicatio 36

ns by Kenneth H. Rosen
BICONDITIONAL
 Example:
p: You can take the flight.
q: You buy a ticket.

p  q: You can take the flight if and

only if you buy a ticket.

Discrete Mathematics and Its Applicatio 37

ns by Kenneth H. Rosen
BICONDITIONAL
 Ways to express biconditional statement:

“p if and only if q”
“p is necessary and sufficient for q”
“if p then q, and conversely”
“p if q”

Discrete Mathematics and Its Applicatio 38

ns by Kenneth H. Rosen
BICONDITIONAL
 Truth Table:

p q pq
T T T
T F F
F T F
F F T

Discrete Mathematics and Its Applicatio 39

ns by Kenneth H. Rosen
Exercise
 Express each proposition in the form “p if
and only if q” in English.
a. For you to get a 5.0 in this course, it is
necessary and sufficient that you learn how to
solve discrete mathematics problems.
b. It rains if it is a weekend day, and it is a
weekend day if it rains.
c. You can see the wizard only if the wizard is not
in, and the wizard is not in only if you can see
him.

Discrete Mathematics and Its Applicatio 40

ns by Kenneth H. Rosen
Precedence of Logical Operators

Operator Precedence

 1
 2
 3
 4
 5

Discrete Mathematics and Its Applicatio 41

ns by Kenneth H. Rosen
PROPOSITIONAL
EQUIVALENCES
Definitions
 A compound proposition that is always
true, no matter what the truth values of the
propositions that occur in it, is called a
tautology.
 A compound proposition that is always
false is called a contradiction.
 A proposition that is neither a tautology
nor a contradiction is called a contingency.

Discrete Mathematics and Its Applicatio 43

ns by Kenneth H. Rosen
Tautologies and Contradictions
 Examples of Tautology and Contradiction:
p  p and p  p

p p p  p p  p

T F T F
F T T F

Discrete Mathematics and Its Applicatio 44

ns by Kenneth H. Rosen
LOGICAL EQUIVALENCES
 The propositions p and q are called
logically equivalent if p  q is a tautology.
The notation p  q denotes that p and q
are logically equivalent.

Discrete Mathematics and Its Applicatio 45

ns by Kenneth H. Rosen
LOGICAL EQUIVALENCES
 Example: Show that (p  q) and p  q are
logically equivalent. (one of De Morgan’s
laws)
p q p  q (p  q) p q p  q
T T T F F F F
T F T F F T F
F T T F T F F
F F F T T T T

Discrete Mathematics and Its Applicatio 46

ns by Kenneth H. Rosen
Exercise
 Show that p  q and p  q are logically
equivalent.

 Show that p  (q  r) and (p  q)(p  r)

are logically equivalent.

Discrete Mathematics and Its Applicatio 47

ns by Kenneth H. Rosen
Logical Equivalences
Equivalence Name
pTp Identity laws
pFp
pTT Domination laws
pFF
ppp Idempotent laws
ppp
(p)  p Double negation law
Discrete Mathematics and Its Applicatio 48
ns by Kenneth H. Rosen
Logical Equivalences
Equivalence Name
pqqp Commutative laws
pqqp
(p  q)  r p  (q  r) Associative laws
(p  q)  r  p  (q  r)
p  (q  r)  (p  q)  (p  r) Distributive laws
p  (q  r)  (p  q)  (p  r)
(p  q)  p  q De Morgan’s laws
(p  q)  p  q
Discrete Mathematics and Its Applicatio 49
ns by Kenneth H. Rosen
Logical Equivalences
p  (p  q)  p Absorption laws
p  (p  q)  p
p  p  T Negation laws
p  p  F

Discrete Mathematics and Its Applicatio 50

ns by Kenneth H. Rosen
Logical Equivalences Involving
Implications
 p  q  p  q
 p  q  q  p
 p  q  p  q
 p  q  (p   q)
 (p  q)  p   q
 (p  q)  (p  r)  p  (q  r)
 (p  r)  (q  r)  (p  q)  r
 (p  q)  (p  r)  p  (q  r)
 (p  r)  (q  r)  (p  q)  r

Discrete Mathematics and Its Applicatio 51

ns by Kenneth H. Rosen
Logical Equivalences Involving
Biconditionals
 p  q  (p  q)  (q  p)
 p  q  p   q
 p  q  (p  q)  (p  q)
 (p  q)  p  q

Discrete Mathematics and Its Applicatio 52

ns by Kenneth H. Rosen
Equational Reasoning
 Show that (p  q)  (p  q) is a tautology.
 Show that (p  (p  q)) and p  q are
logically equivalent.
 Show that (p  q)  (~p  q) is a
tautology.
 Show that (p  q)  p and (q  p) are
logically equivalent.

Discrete Mathematics and Its Applicatio 53

ns by Kenneth H. Rosen
