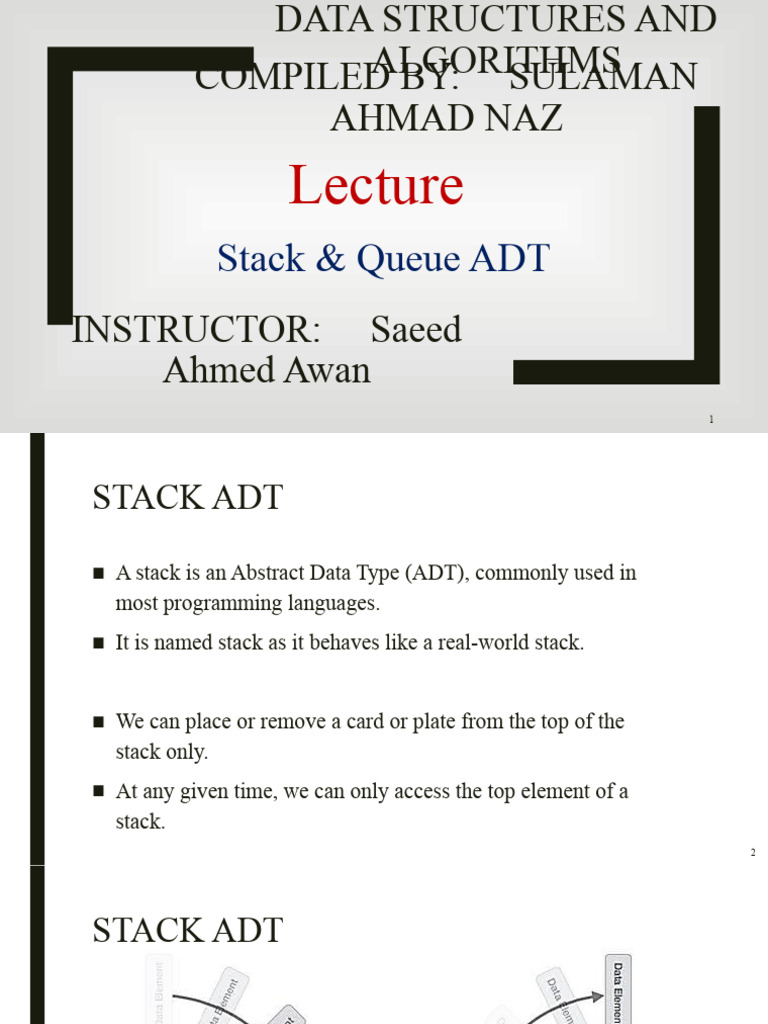

DATA STRUCTURES AND

ALGORITHMS
COMPILED BY: SULAMAN
AHMAD NAZ
Lecture
Stack & Queue ADT
INSTRUCTOR: Saeed
Ahmed Awan
1
STACK ADT
■ A stack is an Abstract Data Type (ADT), commonly used in
most programming languages.
■ It is named stack as it behaves like a real-world stack.
Recall Lecture # 12, 13 & 14
■ We can place or remove a card or plate from the top of the
stack only.
■ At any given time, we can only access the top element of a
stack.
2
STACK ADT

3
Implementation
■ A stack can be implemented by:
– Arrays
– Linked List

■ In the first case, it will be of fixed size because arrays are

basically static.
■ In the second case, stack will be of dynamic size.

■ Each has its own merits & demerits.

4
Basic Operations on LIST ADT
■ Push() To insert at the top of stack
■ Pop() To access and remove the top of stack
■ Peek() To access the top of stack without removal

■ The stack will be full when its top reaches the maximum limit.
■ The stack will be considered empty, if there is no element in the
stack.

5
Array Based Implementation ― Push()
Algorithm Push(value)
//MAX is the maximum size of Array (Stack)
If Top == MAX Then return FALSE
Top++
Stack[Top] = value
return TRUE
End Push

6
 MAX = 5
Push() Value = 10

Algorithm Push(value) 5
//MAX is the maximum size of Array (Stack) 4
If Top == MAX Then return FALSE
Top++ 3
Stack[Top] = value
2
return TRUE
End Push 1

Top 0
7
 MAX = 5
Push() Value = 10

Algorithm Push(value) 5
//MAX is the maximum size of Array (Stack) 4
If Top == MAX Then return FALSE
Top++ 3
Stack[Top] = value
2
return TRUE
End Push 1

Top 0
8
 MAX = 5
Push() Value = 10

Algorithm Push(value) 5
//MAX is the maximum size of Array (Stack) 4
If Top == MAX Then return FALSE
Top++ 3
Stack[Top] = value
2
return TRUE
End Push Top 1

0
9
 MAX = 5
Push() Value = 10

Algorithm Push(value) 5
//MAX is the maximum size of Array (Stack) 4
If Top == MAX Then return FALSE
Top++ 3
Stack[Top] = value
2
return TRUE
End Push Top 1 10

0
10
 MAX = 5
Push() Value = 10

Algorithm Push(value) 5
//MAX is the maximum size of Array (Stack) 4
If Top == MAX Then return FALSE
Top++ 3
Stack[Top] = value
2
return TRUE
End Push Top 1 10

0
11
 MAX = 5
Push() Value = 5

Algorithm Push(value)
Top 5 12

//MAX is the maximum size of Array (Stack) 4 11

If Top == MAX Then return FALSE

Top++ 3 -5

Stack[Top] = value
2 4
return TRUE
End Push 1 10

0
12
 MAX = 5
Push() Value = 5

Algorithm Push(value)
Top 5 12

//MAX is the maximum size of Array (Stack) 4 11

If Top == MAX Then return FALSE

Top++ 3 -5

Stack[Top] = value
2 4
return TRUE
End Push 1 10

0
13
Array Based Implementation ― Pop()
Algorithm Pop()
//MAX is the maximum size of Array (Stack)
If Top == 0 Then return NULL
value = Stack[Top]
Top ― ―
return value
End Pop

14
 MAX = 5
Pop()
Algorithm Pop() 5
//MAX is the maximum size of Array (Stack) 4
If Top == 0 Then return NULL
value = Stack[Top] 3
Top ― ―
2
return value
End Pop Top 1 10

0
15
 MAX = 5
Pop()
Algorithm Pop() 5
//MAX is the maximum size of Array (Stack) 4
If Top == 0 Then return NULL
value = Stack[Top] 3
Top ― ―
2
return value
End Pop Top 1 10

0
16
 MAX = 5
Pop()
value = 10

Algorithm Pop() 5
//MAX is the maximum size of Array (Stack) 4
If Top == 0 Then return NULL
value = Stack[Top] 3
Top ― ―
2
return value
End Pop Top 1 10

0
17
 MAX = 5
Pop()
value = 10

Algorithm Pop() 5
//MAX is the maximum size of Array (Stack) 4
If Top == 0 Then return NULL
value = Stack[Top] 3
Top ― ―
2
return value
End Pop 1 10

Top 0
18
 MAX = 5
Pop()
value = 10

Algorithm Pop() 5
//MAX is the maximum size of Array (Stack) 4
If Top == 0 Then return NULL
value = Stack[Top] 3
Top ― ―
2
return value
End Pop 1 10

Top 0
19
 MAX = 5
Pop()
value = 10
return 10 5
Algorithm Pop()
//MAX is the maximum size of Array (Stack) 4
If Top == 0 Then return NULL
value = Stack[Top] 3
Top ― ―
2
return value
End Pop 1 10

Top 0
20
 MAX = 5
Pop()
Algorithm Pop() 5
//MAX is the maximum size of Array (Stack) 4
If Top == 0 Then return NULL
value = Stack[Top] 3
Top ― ―
2
return value
End Pop 1

Top 0
21
 MAX = 5
Pop()
return NULL

Algorithm Pop() 5
//MAX is the maximum size of Array (Stack) 4
If Top == 0 Then return NULL
value = Stack[Top] 3
Top ― ―
2
return value
End Pop 1

Top 0
22
Array Based Implementation ― Peek()
Algorithm Peek() 5
//MAX is the maximum size of Array (Stack) 4
If Top == 0 Then return NULL
return Stack[Top] Top 3 5

End Peek
2 2

1 -3

0
23
Linked List Based Implementation ― Push()
Algorithm Push(value) //Initially Position is 0, when stack is empty
If Position == MAX
return FALSE
Create New Node NewNode
NewNode.data = value
If Head == NULL
Head = NewNode
Else
Top.Next = NewNode
End If
Top = NewNode
Position++
return TRUE
End Push 24
Push()
Algorithm Push(value) //Initially Size is 0, when stack is empty
If Size == MAX
return FALSE
Create New Node NewNode

Head

Top
NewNode.data = value
If Head == NULL
Head = NewNode
Else

NULL
Top.Next = NewNode 12 4 0
End If
Top = NewNode
Size++
return TRUE
End Push 25
Push()
Algorithm Push(value) //Initially Size is 0, when stack is empty
If Size == MAX NULL
return FALSE
Create New Node NewNode
Top 0
NewNode.data = value
If Head == NULL
Head = NewNode
Else 4
Top.Up = NewNode
End If
Top = NewNode Head 12
Size++
return TRUE
End Push 26
 Value = 10
Push() MAX = 4

Algorithm Push(value) //Initially Size is 0, when stack is empty

If Size == MAX NULL
return FALSE Size = 3
Create New Node NewNode
Top 0
NewNode.data = value
If Head == NULL
Head = NewNode
Else 4
Top.Up = NewNode
End If
Top = NewNode Head 12
Size++
return TRUE
End Push 27
 Value = 10
Push() MAX = 4

Algorithm Push(value) //Initially Size is 0, when stack is empty

If Size == MAX NULL
return FALSE Size = 3
Create New Node NewNode
Top 0
NewNode.data = value
If Head == NULL
Head = NewNode
Else 4
Top.Up = NewNode
End If
Top = NewNode Head 12
Size++
return TRUE
End Push 28
 Value = 10 NULL
Push() MAX = 4
NewNode
Algorithm Push(value) //Initially Size is 0, when stack is empty
If Size == MAX NULL
return FALSE Size = 3
Create New Node NewNode
Top 0
NewNode.data = value
If Head == NULL
Head = NewNode
Else 4
Top.Up = NewNode
End If
Top = NewNode Head 12
Size++
return TRUE
End Push 29
 Value = 10 NULL
Push() MAX = 4
10 NewNode
Algorithm Push(value) //Initially Size is 0, when stack is empty
If Size == MAX NULL
return FALSE Size = 3
Create New Node NewNode
Top 0
NewNode.data = value
If Head == NULL
Head = NewNode
Else 4
Top.Up = NewNode
End If
Top = NewNode Head 12
Size++
return TRUE
End Push 30
 Value = 10 NULL
Push() MAX = 4
10 NewNode
Algorithm Push(value) //Initially Size is 0, when stack is empty
If Size == MAX NULL
return FALSE Size = 3
Create New Node NewNode
Top 0
NewNode.data = value
If Head == NULL
Head = NewNode
Else 4
Top.Up = NewNode
End If
Top = NewNode Head 12
Size++
return TRUE
End Push 31
 Value = 10 NULL
Push() MAX = 4
10 NewNode
Algorithm Push(value) //Initially Size is 0, when stack is empty
If Size == MAX
return FALSE Size = 3
Create New Node NewNode
Top 0
NewNode.data = value
If Head == NULL
Head = NewNode
Else 4
Top.Up = NewNode
End If
Top = NewNode Head 12
Size++
return TRUE
End Push 32
 Value = 10 NULL
Push() MAX = 4
Top 10 NewNode
Algorithm Push(value) //Initially Size is 0, when stack is empty
If Size == MAX
return FALSE Size = 3
Create New Node NewNode
0
NewNode.data = value
If Head == NULL
Head = NewNode
Else 4
Top.Up = NewNode
End If
Top = NewNode Head 12
Size++
return TRUE
End Push 33
 Value = 10
NULL
Push() MAX = 4

Algorithm Push(value) //Initially Size is 0, when stack is empty Top 10 NewNode

If Size == MAX
return FALSE Size = 4
Create New Node NewNode
0
NewNode.data = value
If Head == NULL
Head = NewNode
Else 4
Top.Up = NewNode
End If
Top = NewNode Head 12
Size++
return TRUE
End Push 34
 Value = 10
NULL
Push() MAX = 4

Algorithm Push(value) //Initially Size is 0, when stack is empty Top 10 NewNode

If Size == MAX
return FALSE Size = 4
Create New Node NewNode return TRUE
0
NewNode.data = value
If Head == NULL
Head = NewNode
Else 4
Top.Up = NewNode
End If
Top = NewNode Head 12
Size++
return TRUE
End Push 35
 Value = 15
NULL
Push() MAX = 4

Algorithm Push(value) //Initially Size is 0, when stack is empty Top 10

If Size == MAX
return FALSE Size = 4
Create New Node NewNode
0
NewNode.data = value
If Head == NULL
Head = NewNode
Else 4
Top.Up = NewNode
End If
Top = NewNode Head 12
Size++
return TRUE
End Push 36
 Value = 15
NULL
Push() MAX = 4

Algorithm Push(value) //Initially Size is 0, when stack is empty Top 10

If Size == MAX
return FALSE Size = 4
Create New Node NewNode
0
NewNode.data = value
If Head == NULL
Head = NewNode
Else 4
Top.Up = NewNode
End If
Top = NewNode Head 12
Size++
return TRUE
End Push 37
 Value = 15
NULL
Push() MAX = 4

Algorithm Push(value) //Initially Size is 0, when stack is empty Top 10

If Size == MAX
return FALSE Size = 4
Create New Node NewNode return FALSE
0
NewNode.data = value
If Head == NULL
Head = NewNode
Else 4
Top.Up = NewNode
End If
Top = NewNode Head 12
Size++
return TRUE
End Push 38
 Value = 20
Push() MAX = 4

Algorithm Push(value) //Initially Size is 0, when stack is empty

If Size == MAX
return FALSE Size = 0
Create New Node NewNode
NewNode.data = value
If Head == NULL
Head = NewNode
Else
Top.Up = NewNode
End If Top
Top = NewNode Head NULL
Size++
return TRUE
End Push 39
 Value = 20
Push() MAX = 4

Algorithm Push(value) //Initially Size is 0, when stack is empty

If Size == MAX
return FALSE Size = 0
Create New Node NewNode
NewNode.data = value
If Head == NULL
Head = NewNode
Else
Top.Up = NewNode
End If Top
Top = NewNode Head NULL
Size++
return TRUE
End Push 40
 Value = 20
Push() MAX = 4

Algorithm Push(value) //Initially Size is 0, when stack is empty

If Size == MAX
return FALSE Size = 0
Create New Node NewNode
NewNode.data = value
If Head == NULL NULL
Head = NewNode
Else NewNode
Top.Up = NewNode
End If Top
Top = NewNode Head NULL
Size++
return TRUE
End Push 41
 Value = 20
Push() MAX = 4

Algorithm Push(value) //Initially Size is 0, when stack is empty

If Size == MAX
return FALSE Size = 0
Create New Node NewNode
NewNode.data = value
If Head == NULL NULL
Head = NewNode
Else NewNode
20
Top.Up = NewNode
End If Top
Top = NewNode Head NULL
Size++
return TRUE
End Push 42
 Value = 20
Push() MAX = 4

Algorithm Push(value) //Initially Size is 0, when stack is empty

If Size == MAX
return FALSE Size = 0
Create New Node NewNode
NewNode.data = value
If Head == NULL NULL
Head = NewNode
Else NewNode
20
Top.Up = NewNode
End If Top
Top = NewNode Head NULL
Size++
return TRUE
End Push 43
 Value = 20
Push() MAX = 4

Algorithm Push(value) //Initially Size is 0, when stack is empty

If Size == MAX
return FALSE Size = 0
Create New Node NewNode
NewNode.data = value
If Head == NULL NULL
Head = NewNode
Else NewNode
20
Top.Up = NewNode
End If Top
Top = NewNode Head NULL
Size++
return TRUE
End Push 44
 Value = 20
Push() MAX = 4

Algorithm Push(value) //Initially Size is 0, when stack is empty

If Size == MAX
return FALSE Size = 0
Create New Node NewNode
NewNode.data = value
If Head == NULL NULL
Head = NewNode
Else NewNode
20
Top.Up = NewNode
Top
End If
Top = NewNode Head
Size++
return TRUE
End Push 45
 Value = 20
Push() MAX = 4

Algorithm Push(value) //Initially Size is 0, when stack is empty

If Size == MAX
return FALSE Size = 1
Create New Node NewNode
NewNode.data = value
If Head == NULL NULL
Head = NewNode
Else NewNode
20
Top.Up = NewNode
Top
End If
Top = NewNode Head
Size++
return TRUE
End Push 46
 Value = 20
Push() MAX = 4

Algorithm Push(value) //Initially Size is 0, when stack is empty

If Size == MAX
return FALSE Size = 1
Create New Node NewNode return TRUE
NewNode.data = value
If Head == NULL NULL
Head = NewNode
Else NewNode
20
Top.Up = NewNode
Top
End If
Top = NewNode Head
Size++
return TRUE
End Push 47
Linked List Based Implementation ― Pop()
Algorithm Pop( )
If Size == 0 Then return NULL
value = Top.data
If Size == 1
Delete Top
Top = Head = NULL
Else
CurrentNode=Head
While CurrentNode.Up != Top
CurrentNode = CurrentNode.Up
CurrentNode.Up = NULL
Delete Top
Top = CurrentNode
End If
Size ― ―
return value 48
Pop()
Size = 1
Algorithm Pop( )
If Size == 0 Then return NULL
value = Top.data
If Size == 1
Delete Top
Top = Head = NULL
Else NULL
CurrentNode=Head
While CurrentNode.Up != Top
CurrentNode = CurrentNode.Up 20
CurrentNode.Up = NULL
Top
Delete Top
Top = CurrentNode Head
End If
Size ― ―
return value 49
Pop()
Size = 1
Algorithm Pop( )
If Size == 0 Then return NULL
value = Top.data
If Size == 1
Delete Top
Top = Head = NULL
Else NULL
CurrentNode=Head
While CurrentNode.Up != Top
CurrentNode = CurrentNode.Up 20
CurrentNode.Up = NULL
Top
Delete Top
Top = CurrentNode Head
End If
Size ― ―
return value 50
Pop()
Size = 1
Algorithm Pop( )
value = 20
If Size == 0 Then return NULL
value = Top.data
If Size == 1
Delete Top
Top = Head = NULL
Else NULL
CurrentNode=Head
While CurrentNode.Up != Top
CurrentNode = CurrentNode.Up 20
CurrentNode.Up = NULL
Top
Delete Top
Top = CurrentNode Head
End If
Size ― ―
return value 51
Pop()
Size = 1
Algorithm Pop( )
value = 20
If Size == 0 Then return NULL
value = Top.data
If Size == 1
Delete Top
Top = Head = NULL
Else NULL
CurrentNode=Head
While CurrentNode.Up != Top
CurrentNode = CurrentNode.Up 20
CurrentNode.Up = NULL
Top
Delete Top
Top = CurrentNode Head
End If
Size ― ―
return value 52
Pop()
Size = 1
Algorithm Pop( )
value = 20
If Size == 0 Then return NULL
value = Top.data
If Size == 1
Delete Top
Top = Head = NULL
Else
CurrentNode=Head
While CurrentNode.Up != Top NULL
CurrentNode = CurrentNode.Up
CurrentNode.Up = NULL
Top
Delete Top
Top = CurrentNode Head
End If
Size ― ―
return value 53
Pop()
Size = 1
Algorithm Pop( )
value = 20
If Size == 0 Then return NULL
value = Top.data
If Size == 1
Delete Top
Top = Head = NULL
Else
CurrentNode=Head
While CurrentNode.Up != Top NULL
CurrentNode = CurrentNode.Up
CurrentNode.Up = NULL
Top
Delete Top
Top = CurrentNode Head
End If
Size ― ―
return value 54
Pop()
Size = 0
Algorithm Pop( )
value = 20
If Size == 0 Then return NULL
value = Top.data
If Size == 1
Delete Top
Top = Head = NULL
Else
CurrentNode=Head
While CurrentNode.Up != Top NULL
CurrentNode = CurrentNode.Up
CurrentNode.Up = NULL
Top
Delete Top
Top = CurrentNode Head
End If
Size ― ―
return value 55
Pop()
Size = 0
Algorithm Pop( )
value = 20
If Size == 0 Then return NULL
value = Top.data
return 20
If Size == 1
Delete Top
Top = Head = NULL
Else
CurrentNode=Head
While CurrentNode.Up != Top NULL
CurrentNode = CurrentNode.Up
CurrentNode.Up = NULL
Top
Delete Top
Top = CurrentNode Head
End If
Size ― ―
return value 56
Pop()
Size = 4
Algorithm Pop( )
If Size == 0 Then return NULL
NULL
value = Top.data
If Size == 1
Top 10
Delete Top
Top = Head = NULL
Else
CurrentNode=Head 0
While CurrentNode.Up != Top
CurrentNode = CurrentNode.Up
CurrentNode.Up = NULL
Delete Top 4
Top = CurrentNode
End If
Size ― ― Head 12
return value 57
Pop()
Size = 4
Algorithm Pop( )
If Size == 0 Then return NULL
NULL
value = Top.data
If Size == 1
Top 10
Delete Top
Top = Head = NULL
Else
CurrentNode=Head 0
While CurrentNode.Up != Top
CurrentNode = CurrentNode.Up
CurrentNode.Up = NULL
Delete Top 4
Top = CurrentNode
End If
Size ― ― Head 12
return value 58
Pop()
Size = 4
Algorithm Pop( )
value = 10 NULL
If Size == 0 Then return NULL
value = Top.data
If Size == 1
Top 10
Delete Top
Top = Head = NULL
Else
CurrentNode=Head 0
While CurrentNode.Up != Top
CurrentNode = CurrentNode.Up
CurrentNode.Up = NULL
Delete Top 4
Top = CurrentNode
End If
Size ― ― Head 12
return value 59
Pop()
Size = 4
Algorithm Pop( )
value = 10 NULL
If Size == 0 Then return NULL
value = Top.data
If Size == 1
Top 10
Delete Top
Top = Head = NULL
Else
CurrentNode=Head 0
While CurrentNode.Up != Top
CurrentNode = CurrentNode.Up
CurrentNode.Up = NULL
Delete Top 4
Top = CurrentNode
End If
Size ― ― Head 12
return value 60
Pop()
Size = 4
Algorithm Pop( )
value = 10 NULL
If Size == 0 Then return NULL
value = Top.data
If Size == 1
Top 10
Delete Top
Top = Head = NULL
Else
CurrentNode=Head 0
While CurrentNode.Up != Top
CurrentNode = CurrentNode.Up
CurrentNode.Up = NULL
Delete Top 4
Top = CurrentNode
End If
Size ― ― Current
Head 12
return value Node
61
Pop()
Size = 4
Algorithm Pop( )
value = 10 NULL
If Size == 0 Then return NULL
value = Top.data
If Size == 1
Top 10
Delete Top
Top = Head = NULL
Else
CurrentNode=Head 0
While CurrentNode.Up != Top
CurrentNode = CurrentNode.Up
CurrentNode.Up = NULL
Delete Top 4
Top = CurrentNode
End If
Size ― ― Current
Head 12
return value Node
62
Pop()
Size = 4
Algorithm Pop( )
value = 10 NULL
If Size == 0 Then return NULL
value = Top.data
If Size == 1
Top 10
Delete Top
Top = Head = NULL
Else
CurrentNode=Head 0
While CurrentNode.Up != Top
CurrentNode = CurrentNode.Up
CurrentNode.Up = NULL Current
Delete Top 4
Node
Top = CurrentNode
End If
Size ― ― Head 12
return value 63
Pop()
Size = 4
Algorithm Pop( )
value = 10 NULL
If Size == 0 Then return NULL
value = Top.data
If Size == 1
Top 10
Delete Top
Top = Head = NULL
Else
CurrentNode=Head 0
While CurrentNode.Up != Top
CurrentNode = CurrentNode.Up
CurrentNode.Up = NULL Current
Delete Top 4
Node
Top = CurrentNode
End If
Size ― ― Head 12
return value 64
Pop()
Size = 4
Algorithm Pop( )
value = 10 NULL
If Size == 0 Then return NULL
value = Top.data
If Size == 1
Top 10
Delete Top
Top = Head = NULL
Else
CurrentNode=Head Current
0
Node
While CurrentNode.Up != Top
CurrentNode = CurrentNode.Up
CurrentNode.Up = NULL
Delete Top 4
Top = CurrentNode
End If
Size ― ― Head 12
return value 65
Pop()
Size = 4
Algorithm Pop( )
value = 10 NULL
If Size == 0 Then return NULL
value = Top.data
If Size == 1
Top 10
Delete Top
Top = Head = NULL
Else
CurrentNode=Head Current
0
Node
While CurrentNode.Up != Top
CurrentNode = CurrentNode.Up
CurrentNode.Up = NULL
Delete Top 4
Top = CurrentNode
End If
Size ― ― Head 12
return value 66
Pop()
Size = 4
Algorithm Pop( )
value = 10 NULL
If Size == 0 Then return NULL
value = Top.data
If Size == 1
Top
Delete Top
Top = Head = NULL
Else
CurrentNode=Head Current
0
Node
While CurrentNode.Up != Top
CurrentNode = CurrentNode.Up
CurrentNode.Up = NULL
Delete Top 4
Top = CurrentNode
End If
Size ― ― Head 12
return value 67
Pop()
Size = 4
Algorithm Pop( )
value = 10
If Size == 0 Then return NULL
value = Top.data
If Size == 1
Delete Top NULL
Top = Head = NULL
Else
CurrentNode=Head Current
Top 0
Node
While CurrentNode.Up != Top
CurrentNode = CurrentNode.Up
CurrentNode.Up = NULL
Delete Top 4
Top = CurrentNode
End If
Size ― ― Head 12
return value 68
Pop()
Size = 3
Algorithm Pop( )
value = 10
If Size == 0 Then return NULL
value = Top.data
If Size == 1
Delete Top NULL
Top = Head = NULL
Else
CurrentNode=Head Current
Top 0
Node
While CurrentNode.Up != Top
CurrentNode = CurrentNode.Up
CurrentNode.Up = NULL
Delete Top 4
Top = CurrentNode
End If
Size ― ― Head 12
return value 69
Pop()
Size = 3
Algorithm Pop( )
value = 10
If Size == 0 Then return NULL
value = Top.data
return 10
If Size == 1
Delete Top NULL
Top = Head = NULL
Else
CurrentNode=Head Current
Top 0
Node
While CurrentNode.Up != Top
CurrentNode = CurrentNode.Up
CurrentNode.Up = NULL
Delete Top 4
Top = CurrentNode
End If
Size ― ― Head 12
return value 70
Applications of Stack
■ Stacks can be used for expression evaluation.

■ Stacks can be used to check parenthesis matching in an expression.

■ Stacks can be used for Conversion from one form of expression to

another.

■ Stacks can be used for Memory Management.

71
Applications of Stack
■ Stack data structures are used in backtracking problems.

■ Many compilers use a stack for parsing the syntax of expressions.

■ Stack is used to reverse a string or any other array.

■ Stack is used to keep information about the active functions or

subroutines.

■ Keeping track of operations for managing the UNDO function. 72

Practice Question
■ We have implemented a stack using arrays and singly linked list.

■ Construct algorithms for basic stack operations if stack is

implemented using a doubly linked list.

■ Consider UP and DOWN pointers instead of PREVIOUS and NEXT

for your convenience.

73
QUEUE ADT
■ A queue is an Abstract Data Type (ADT).
■ Unlike stacks, a queue is open at both its ends.
■ It is named queue as it behaves like a real-world queue.
■ One end is always used to insert data (enqueue) and the
other is used to remove data (dequeue).
■ Queue follows First-In-First-Out methodology, i.e., the data
item stored first will be accessed first.

74
QUEUE ADT

75
QUEUE ADT

76
Basic Operations

77
Queue vs. Stack
■ Both does not support random access.
■ Queue is FIFO, while Stack is LIFO.

78
Representation of Queue

Rear Front

79
Implementation
■ Just like a stack, a queue can also be implemented by:
– Arrays
– Linked List

■ In the first case, it will be of fixed size because arrays are

basically static.

■ In the second case, stack will be of dynamic size.

80
Enqueue()

81
Array Based Implementation ― Enqueue()
Algorithm Enqueue(value)
//MAX is the maximum size of Array (Queue)
If Rear == MAX Then return FALSE
Rear++
Queue[Rear] = value
return TRUE
End Enqueue

82
 Stack
Enqueue()
Algorithm Enqueue(value) 5 5

//MAX is the maximum size of Array (Queue) 4 8

If Rear == MAX Then return FALSE

Rear++ 3 6

Queue[Rear] = value
2 21
return TRUE
End Enqueue 1 12

Top 0
83
Enqueue()
Algorithm Enqueue(value)
//MAX is the maximum size of Array (Queue)
If Rear == MAX Then return FALSE Stack
Rear++
Queue[Rear] = value To
0 p
return TRUE
12 21 6 8 5
End Enqueue 1

2
84
Enqueue()
Algorithm Enqueue(value)
//MAX is the maximum size of Array (Queue)
If Rear == MAX Then return FALSE Queue
Rear++
Queue[Rear] = value Fron Rea
t 0 r
return TRUE
12 21 6 8 5
End Enqueue 1

2
85
Linked List Based Implementation
of Enqueue()
NULL Stack

Top 0

Head

Top
4

NULL
12 4 0

Head 12

86
Linked List Based Implementation
of Enqueue()

Stack Queue

Front
Head

Rear
Top

NULL

NULL
12 4 0 12 4 0

87
Dequeue()

88
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value)
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ―
return value
End Dequeue
89
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value)
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ―
Fron Rea
return value t 0 r

End Dequeue
12 21 6 8 5
1
90
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value)
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ―
Fron Rea
return value t 0 r

End Dequeue
12 21 6 8 5
1
91
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value) value = 12
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ―
Fron Rea
return value t 0 r

End Dequeue
12 21 6 8 5
1
92
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value) value = 12
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ― i i+1
Fron Rea
return value t 0 r

End Dequeue
12 21 6 8 5
1
93
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value) value = 12
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ― i i+1
Fron Rea
return value t 0 r

End Dequeue
21 21 6 8 5
1
94
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value) value = 12
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ― i i+1
Fron Rea
return value t 0 r

End Dequeue
21 21 6 8 5
1
95
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value) value = 12
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ― i i+1
Fron Rea
return value t 0 r

End Dequeue
21 6 6 8 5
1
96
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value) value = 12
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ― i i+1
Fron Rea
return value t 0 r

End Dequeue
21 6 6 8 5
1
97
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value) value = 12
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ― i i+1
Fron Rea
return value t 0 r

End Dequeue
21 6 8 8 5
1
98
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value) value = 12
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ― i i+1
Fron Rea
return value t 0 r

End Dequeue
21 6 8 8 5
1
99
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value) value = 12
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ― i i+1
Fron Rea
return value t 0 r

End Dequeue
21 6 8 5 5
1
100
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value) value = 12
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ― i i+1
Fron Rea
return value t 0 r

End Dequeue
21 6 8 5 5
1
101
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value) value = 12
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ― i i+1
Fron Rea
return value t 0 r

End Dequeue
21 6 8 5 5
1
102
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value) value = 12
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ― i i+1
Fron Rea
return value t 0 r

End Dequeue
21 6 8 5 5
1
103
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value) value = 12
return 12
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ― i i+1
Fron Rea
return value t 0 r

End Dequeue
21 6 8 5 5
1
104
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value)
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ― Rea
Fron
r
return value t 0
End Dequeue
12
1
105
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value)
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ― Rea
Fron
r
return value t 0
End Dequeue
12
1
106
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value) value = 12
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ― Rea
Fron
r
return value t 0
End Dequeue
12
1
107
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value) value = 12
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ― i i+1
Rea
Fron
r
return value t 0
End Dequeue
12
1
108
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value) value = 12
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ― i i+1
Rea
r Fron
return value t 0
End Dequeue
12
1
109
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value) value = 12
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ― i i+1
Rea
r Fron
return value t 0
End Dequeue
12
1
110
Array Based Implementation ― Dequeue()
Algorithm Dequeue(value) value = 12
return 12
If Rear == 0 Then return NULL
value = Queue[Front]
For i = Front to Rear-1
Queue[i] = Queue[i+1]
Rear ― ― i i+1
Rea
r Fron
return value t 0
End Dequeue
12
1
111
DLL Based Implementation ― Dequeue()

Front

Rear
NULL

NULL
12 4 0

112
DLL Based Implementation ― Dequeue()

Front

Rear
NULL

NULL
12 4 0

value = 12

113
DLL Based Implementation ― Dequeue()

Front

Rear
NULL

NULL
12 4 0

value = 12

114
DLL Based Implementation ― Dequeue()

Front

Rear
12
NULL

NULL
4 0

value = 12

115
DLL Based Implementation ― Dequeue()

Front

Rear
NULL

NULL
4 0

value = 12

116
DLL Based Implementation ― Dequeue()

Front

Rear
NULL

NULL
4 0

value = 12
return 12

117
DLL Based Implementation ― Dequeue()

Front
Rear
NULL

NULL
999

118
DLL Based Implementation ― Dequeue()

Front
Rear
NULL

NULL
999

value = 999

119
DLL Based Implementation ― Dequeue()

Front
Rear
NULL

NULL
999

value = 999

120
DLL Based Implementation ― Dequeue()

Front
Rear
NULL

NULL
value = 999

121
DLL Based Implementation ― Dequeue()

Front
Rear
NULL

NULL
value = 999
return 999

122
Applications of Queue

■ Handling of interrupts in real-time systems. The interrupts are

handled in the same order as they arrive i.e First come first served.

■ Serving requests on a single shared resource, like a printer, CPU task

scheduling etc.

123
DEQUE
■ DEQUE stands for Double-Ended Queue.

■ It is a variation of queue data structure.

■ In simple queue, we can insert only at REAR and read & delete only
from FRONT.

■ In DEQUE, we can do the enqueuer and dequeuer operation at both

REAR and FRONT.
124
Priority Queue
■ A priority queue or PQUEUE is just like a regular queue with a different
ENQUEUE operation.

■ We can read and delete only from FRONT.

■ But, we save the priority of each value with the value. And all the values are
sorted w.r.t their priorities.

■ The value with highest priority value is placed at the FRONT while the
value at REAR has the lowest priority.
125
Priority Queue ― Array Based Implementation

Fron Rea
t 0 r

12 21 6 8
20 9 1 8 6

4 126
Priority Queue ― Array Based Implementation

Fron Rea
t 0 r

12 21 6 8
20 9 1 8 6

3 0
11
4 127
Priority Queue ― Array Based Implementation

Fron Rea
t 0 r

12 21 6 8
20 9 1 8 6

3 0
11
4 128
Priority Queue ― Array Based Implementation

Fron Rea
t 0 r

12 21 6 8 8
20 9 1 8 6 6

3 0
11
4 129
Priority Queue ― Array Based Implementation

Fron Rea
t 0 r

12 21 6 8 8
20 9 1 8 6 6

3 0
11
4 130
Priority Queue ― Array Based Implementation

Fron Rea
t 0 r

12 21 6 6 8
20 9 1 8 8 6

3 0
11
4 131
Priority Queue ― Array Based Implementation

Fron Rea
t 0 r

12 21 6 6 8
20 9 1 8 8 6

3 0
11
4 132
Priority Queue ― Array Based Implementation

Fron Rea
t 0 r

12 21 21 6 8
20 9 1 9 8 6

3 0
11
4 133
Priority Queue ― Array Based Implementation

Fron Rea
t 0 r

12 21 21 6 8
20 9 1 9 8 6

3 0
11
4 134
Priority Queue ― Array Based Implementation

Fron Rea
t 0 r

12 0 21 6 8
20 11 1 9 8 6

3 0
11
4 135
Priority Queue ― Array Based Implementation

Fron Rea
t 0 r

12 0 21 6 8
20 11 1 9 8 6

4 136
Priority Queue ― SLL Based Implementation

Front

Rear

NULL
12 4 0
20 11 9

137
Priority Queue ― SLL Based Implementation

Front

Rear

NULL
12 4 0
20 11 9

NULL
New 0
Node 11
138
Priority Queue ― SLL Based Implementation

Front

Rear

NULL
12 4 0
20 11 9

Current
Node

NULL
New 2
Node 10
139
Priority Queue ― SLL Based Implementation

Front

Rear

NULL
12 4 0
20 11 9

Current Current
Node Node.Next

NULL
New 2
Node 10
140
Priority Queue ― SLL Based Implementation

Front

Rear

NULL
12 4 0
20 11 9

Current Current
Node Node.Next

NULL
New 2
Node 10
141
Priority Queue ― SLL Based Implementation

Front

Rear

NULL
12 4 0
20 11 9

Current Current
Node Node.Next

New 2
Node 10
142
Priority Queue ― SLL Based Implementation

Front

Rear

NULL
12 4 0
20 11 9

Current
Node

New 2 Current
Node 10 Node.Next
143
Priority Queue ― SLL Based Implementation

Front

Rear

NULL
12 4 2 0
20 11 10 9

Current
Node

New Current
Node Node.Next
144
Priority Queue ― SLL Based Implementation

Front

Rear
NULL
4
11

If List has only 1 element.

145
Priority Queue ― SLL Based Implementation

Front

Rear
NULL
4
11

NULL
New 0
Node 22

146
Priority Queue ― SLL Based Implementation

Front

Rear
NULL
4
11

New 0
Node 22

147
Priority Queue ― SLL Based Implementation

Front

Rear
NULL
4
11

New 0
Node 22

148
Priority Queue ― SLL Based Implementation

Front

Rear
NULL
New 0 4
Node 22 11

149
Practice Question

■ With the help of your knowledge of analyzing time complexity of

algorithms, represent time complexity of the algorithms discussed in
this lecture in terms of Big-Oh.

150
 End of Lecture

THANK YOU
151
