Digital ImageProcessing-color Image Processing

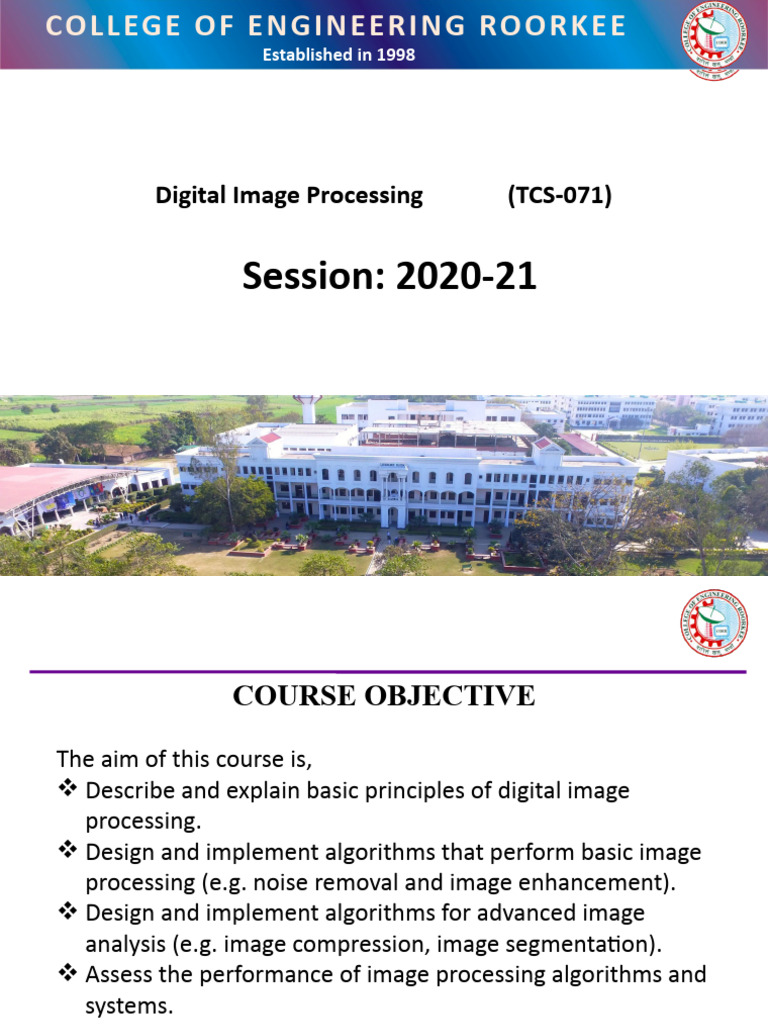

COL LEGE OF E N GI N E ER I N G ROOR K EE
Established in 1998
Digital Image Processing (TCS-071)
Session: 2020-21
Digital Image Processing

COURSE OBJECTIVE
The aim of this course is,

 Describe and explain basic principles of digital image
processing.
 Design and implement algorithms that perform basic image
processing (e.g. noise removal and image enhancement).
 Design and implement algorithms for advanced image
analysis (e.g. image compression, image segmentation).
 Assess the performance of image processing algorithms and
systems.

Color Image Processing

Color Image Processing:-

 Color is a powerful descriptor that often
simplifies object identification and extraction
from a scene.
 Human can discern thousands of color shades
and intensities, compared to about only two
dozen shades of gray.

Preview

Preview

 Color image processing is divide into two major

area:
 Full-Color Processing: images are acquired
with a full-color sensor, such as a color TV
camera or color scanner.
 Pseudo-Color Processing: The problem is one of
assigning a color to a particular monochrome
intensity or range of intensities.

Color Fundamentals
The experiment of Sir Isaac Newton, in 1666.

Color Fundamentals (con’t)c

Color Fundamentals
• Colors are seen as variable combinations of the primary color s of light:
red (R), green (G), and blue (B).
• The primary colors can be mixed to produce the secondary colors:

magenta (red+blue), cyan (green+blue), and yellow (red+green).
• Mixing the three primaries, or a secondary with its opposite primary color,
produces white light.
Primary and secondary colors of light

Color Fundamentals
• However, the primary colors of pigments are cyan (C),
magenta (M), and yellow (Y), and the secondary colors are
red, green, and blue.
• A proper combination of the three pigment primaries, or a
secondary with its opposite primary, produces black.
Primary and secondary colors of pigments

Color Fundamentals (con’t)c
 Basic quantities to describe the quality of light source:

 Radiance: Total amount of energy that flows from the
light source (in W).
 Luminance: A measure of the amount of energy an
observer perceives from the light source (in lm)
 Brightness: A subjective descriptor that embodies the
achromatic notion of intensity and is practical
impossible to measure.

Color Fundamentals (con’t)
Standard wavelength values for the

primary colors


 The characteristics generally used to distinguish one color

from another are Brightness, Hue, and Saturation.
 Hue: Represents dominant color as perceive by an
observer.
 Saturation: Relative purity or the amount of white light
mixed with a hue
 Hue and saturation taken together are called Chromaticity,

and therefore, a color may be characterized by its Brightness
and Chromaticity.

 Tri-stimulus values: The amount of Red, Green and Blue

needed to form any particular color
Denoted by: X, Y and Z
 Tri-chromatic coefficient:
X Y Z
x y z
X Y  Z X Y  Z X Y  Z
x  y  z 1

Chromaticity Diagram
Green Point =
62% green,
25% red,
13% blue.

Color Gamut
produced by RGB
monitors
Color Gamut
produced by high
quality color printing
device

Color characteristics
The characteristics used to distinguish one color

from another are:
 Brightness: means the amount of intensity
(i.e. color level).
 Hue: represents dominant color as perceived
by an observer.
 Saturation: refers to the amount of white light
mixed with a hue.

Color Models
 The purpose of a color model (also called color space
or color system) is to facilitate the specification of
colors in some standard, generally accept way.
 RGB (red,green,blue) : monitor, video camera.
 CMY(cyan,magenta,yellow),CMYK (CMY, black) model for
color printing.
 and HSI model,which corresponds closely with the way
humans describe and interpret color.

The RGB color model
• In this model, each color appears in its primary colors red,
green, and blue.
• This model is based on a Cartesian coordinate system.
• The color subspace is the cube shown in the figure below.
• The different colors in this model are points on or inside the
cube, and are defined by vectors extending from the origin.

The RGB color model…
• All color values R, G, and B have been normalized in the range [0, 1].
However, we can represent each of R, G, and B from 0 to 255.
• Each RGB color image consists of three component images, one for each
primary color as shown in the figure below. These three images are
combined on the screen to produce a color image.
Scheme of RGB color image

The RGB color model…
• The total number of bits used to represent each pixel in RGB image is
called pixel depth.
• For example, in an RGB image if each of the red, green, and blue images is
an 8-bit image, the pixel depth of the RGB image is 24-bits.
• The figure below shows the component images of an RGB image.
Full color Red Green Blue
A full-color image and its RGB component images

The RGB Color Models

The RGB Color Models (con’t)


Safe RGB Colors (Safe Web colors)


The CMY and CMYK Color Models
 Cyan, Magenta and Yellow are the secondary colors

of light
 Most devices that deposit colored pigments on
paper, such as color printers and copiers, require CMY
data input.
 C  1  R 
 M   1  G 
    
 Y  1  B 
where, all color values have been normalized to the range [0, 1].

The CMY and CMYK Color Models
 In printing, combining equal amounts of cyan, magenta, and yellow
produce muddy-looking black.
 In order to produce true black, a fourth color, black, is added, giving rise to
the CMYK color model.
Full color Cyan Magenta

Yellow
A full-color image and its

Black
CMYK component images

The HSI color model
• The RGB and CMY color models are not suited for describing colors in terms
of human interpretation. When we view a color object, we describe it by its
hue, saturation, and brightness (intensity).
• Hence the HSI color model has been presented. The HSI model decouples
the intensity component from the color-carrying information (hue and
saturation) in a color image.
• This model is an ideal tool for developing color image processing
algorithms.
• The hue, saturation, and intensity values can be obtained from the RGB
color cube. That is, we can convert any RGB point to a corresponding point
is the HSI color model by working out the geometrical formulas.

The HSI Color Models



 Converting colors from RGB to HSI
 if B  G
H 
360   if B  G
 1 
[( R  G )  ( R  B )]
1  2 
  cos  1/ 2 
 [( R  G ) 2
 ( R  B )( G  B )] 
 
3
S  1 [min( R, G, B )]
( R  G  B)
1
I  ( R  G  B)
3
 Converting colors from HIS to

RGB
 RG sector : 0  H  120
B  I (1  S )
 S cos H 
R  I 1  
 cos( 60 
 H ) 
G  3I  ( R  B )


RGB
 GB sector : 120  H  240
H  H  120
R  I (1  S )
 S cos H 
G  I 1  
 cos( 60 
 H ) 
B  3I  ( R  G )


RGB
 BR sector : 240  H  360
H  H  240
G  I (1  S )
 S cos H 
B  I 1  
 cos( 60 
 H ) 
R  3I  (G  B )


RGB H H S
S I I RGB

Pseudocolor Image Processing
 Pseudocolor (also called false color) image processing

consists of assigning colors to gray values based on a
specified criterion.
 The principal use of pseudocolor is for human visualization

and interpretation of gray-scale events in an image or
sequence of images.

Intensity Slicing

Intensity Slicing (con’t)



Gray Level to Color Transformations






Basic of Full Color Image Processing
Let c represent an arbitrary vector in RGB color space
cR   R 
c  cG   G 
cB   B 
For an image of size M*N,
 c R ( x, y )   R ( x, y ) 
c( x, y )  cG ( x, y )  G ( x, y )
cB ( x, y )   B ( x, y ) 

Basic of Full Color Image Processing

Basic of Full-Color Image Processing
 Major categories of full-color Image process-

ing:
 Per-color-component processing
 Vector-based processing

Basic of Full-Color Image Processing
Color Transformation
Processing the components of a color image

within the context of a single color model.
g ( x, y )  T  f ( x, y ) 
si  Ti r1 , r2 ,  , rn , i  1,2,..., n
Color components of g Color components of f
Color mapping functions

Full-Color Image Processing
Color Transformation
CMYK
 Some difficulty in interpreting the

RGB
HUE:
 Discontinuity where 0 and 360º
meet.
 Hue is undefined for a
HSI
saturation 0
Color Transformation: Modify the Intensity
si  kri i  1,2,3 s1  r1
g ( x, y )  kf ( x, y )
si  kri  (1  k ) i  1,2,3
s2  r2
Digital Image Processing s3  kr3
Color Transformation: Color Complement

Color Transformation: Color Complement

Color Transformation: Color Slicing
Motive: Highlighting a specific range of colors in an

Basic Idea:
 Display the color of interest so that they stand out
from background
 Use the region defined by the colors as a mask for
further processing
  W
0.5 if  rj  a j  
si    2  any1 j  n , i  1,2,..., n
r otherwise
i
1. Colors of interest are enclosed by cube (or hypercube

for n>3)
  W
0.5 if  rj  a j  
si    2  any1 j  n , i  1,2,..., n
r otherwise
i
2. Colors of interest are enclosed by Sphere
 n
 0.5 if  (rj  a j )  R0
2 2
si   j 1
, i  1,2,..., n
ri otherwise

Cube Sphere

Color Transformation: Tone and Color Correction
The tonal rang of an image, also called its key-type,

refers to its general distribution of color intensities.
 High-key images: Most of the information is

concentrated at high intensities.
 Low-key images: Most of the information is
concentrated at low intensities.

Color Transformation: Tonal Correction
Middle-key Image

High-key Image

Low-key Image

Color Transformation: Color Correction
The proportion of any color can be increased by decreasing the
amount of the opposite (or complementary) color in the image or by
raising the proportion of the two immediately adjacent colors or
decreasing the percentage of the two colors adjacent to the
complement.
Magenta 
Removing Red Adding Green

and Blue

Color Transformation: Color Correction

Color Transformation: Histogram Processing
Histogram
Equalizing the Saturation
Intensity Adjustment

Color Image Smoothing
Averaging:
1
c ( x, y ) 
K
 c( x , y )
( x , y )S xy
1 
  R ( x, y ) 
 K ( x , y )S xy 
1 
c ( x, y )    G ( x, y ) 
 K ( x , y )S xy 
1 
 K  B ( x, y ) 
 ( x , y )S xy 
Red
Green Blue

Hue Saturation Intensity

Averaging R,G and B Averaging Intensity Difference

Color Image Sharpening
The Laplacian of Vector c :
  2 R ( x, y ) 
 2 
 c( x, y )   G ( x, y )
2
  2 B ( x, y ) 
 

Color Image Sharpening
Sharpening R,G and B Sharpening Intensity Difference

Color Segmentation
Segmentation is a process that partitions an

image into regions
 Segmentation in HIS Color Space

 Segmentation in RGB Vector Space
 Color Edge Detection

Color Segmentation: in HIS Color Space

Color Segmentation: in RGB Vector Space
z is similar to a if the distance between them is less than a
specified threshold.
Euclidian Distance: D(z, a)  z  a

 (z  a)T (z  a) 1/ 2
 ( z  a )  ( z  a 
1/ 2
G )  ( z B  aB )
2 2 2
R R G
D(z, a)  (z  a) C (z  a)

1 1/ 2
Generalized form: T

Color Segmentation: in RGB Vector Space

Color Segmentation: Color Edge Detection

R G B
u r g b
x x x
R G B
v r g b
y y y
2 2 2
R G B
g xx  u T u   
x x x
2 2 2
R G B
g yy  v v 
T
 
y y y
R R G G B B
g xy  u v 
T
 
x y x y x y
1  2 g xy 
  tan 
1

2  g xx  g yy 
1/ 2
 
F ( )   g xx  g yy  g xx  g yy cos 2  2 g xy sin 2 
1 
2 



Noise in Color Images



Color Image Compression

THANK YOU!

Digital ImageProcessing-color Image Processing

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Digital ImageProcessing-color Image Processing

Uploaded by

Copyright:

Available Formats

COL LEGE OF E N GI N E ER I N G ROOR K EE

Digital Image Processing (TCS-071)

Digital Image Processing

The aim of this course is,

Digital Image Processing

Digital Image Processing

Color Image Processing:-

Digital Image Processing

Digital Image Processing

Digital Image Processing

 Color image processing is divide into two major

Digital Image Processing

The experiment of Sir Isaac Newton, in 1666.

Digital Image Processing

Digital Image Processing

• The primary colors can be mixed to produce the secondary colors:

Primary and secondary colors of light

Digital Image Processing

Primary and secondary colors of pigments

Digital Image Processing

 Basic quantities to describe the quality of light source:

Digital Image Processing

Standard wavelength values for the

Digital Image Processing

Digital Image Processing

 The characteristics generally used to distinguish one color

 Hue and saturation taken together are called Chromaticity,

Digital Image Processing

 Tri-stimulus values: The amount of Red, Green and Blue

Digital Image Processing

Digital Image Processing

Digital Image Processing

The characteristics used to distinguish one color

Digital Image Processing

Digital Image Processing

Digital Image Processing

Scheme of RGB color image

Full color Red Green Blue

A full-color image and its RGB component images

Digital Image Processing

Digital Image Processing

Digital Image Processing

Digital Image Processing

Safe RGB Colors (Safe Web colors)

Digital Image Processing

Digital Image Processing

 Cyan, Magenta and Yellow are the secondary colors

Digital Image Processing

Full color Cyan Magenta

A full-color image and its

Digital Image Processing

Digital Image Processing

Digital Image Processing

Digital Image Processing

Digital Image Processing

 Converting colors from HIS to

Digital Image Processing

 Converting colors from HIS to

Digital Image Processing

 Converting colors from HIS to

Digital Image Processing

Digital Image Processing
