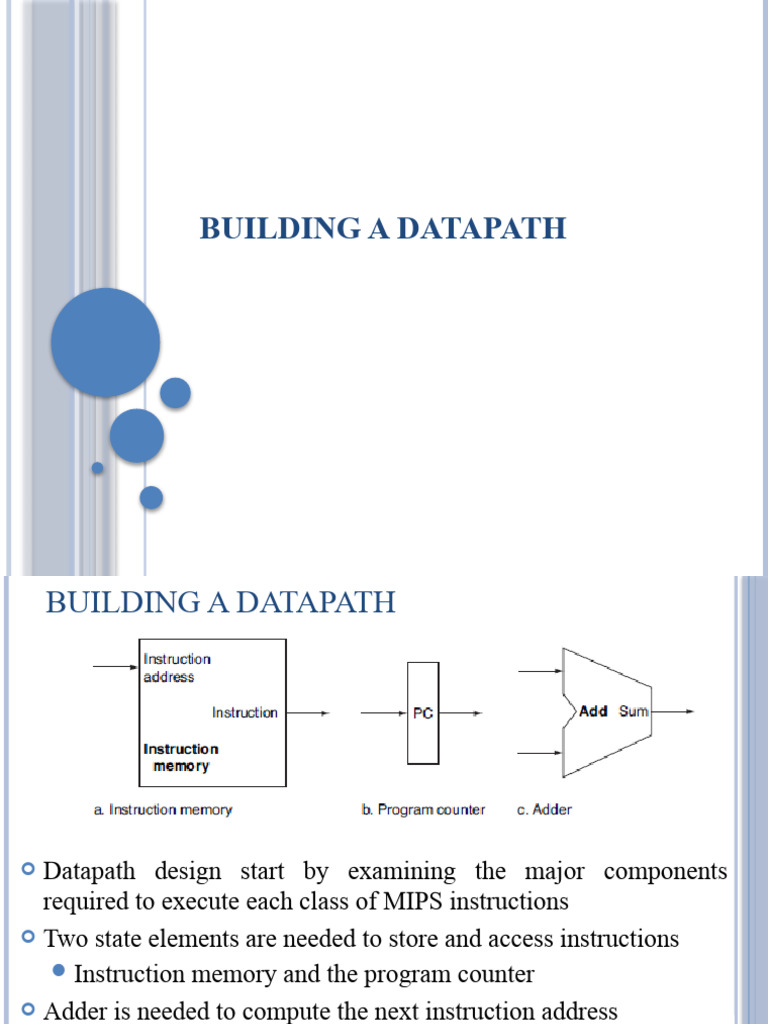

Datapath design start by examining the major components
required to execute each class of MIPS instructions Two state elements are needed to store and access instructions Instruction memory and the program counter Adder is needed to compute the next instruction address
Instruction memory provide only read access because the datapath
does not write instructions BUILDING A DATAPATH (2) Instruction memory Output at any time reflects the contents of the location specified by the address input Require no read control signal
The program counter
32‑bit register written at the end of every clock cycle Does not need a write control signal The adder is an ALU wired to always add its two 32‑bit inputs and place the sum on its output To execute any instruction, we must start by fetching the instruction from memory To prepare for executing the next instruction, program counter is incremented so that it points at the next instruction, 4 bytes later BUILDING A DATAPATH (3) A portion of the datapath used for fetching instructions and incrementing the program counter R-FORMAT INSTRUCTIONS (OR) ARITHMETIC- LOGICAL INSTRUCTIONS Read two registers Perform an ALU operation on the contents of the registers Write the result to a register This instruction class includes add, sub, AND, OR, and slt add $t1,$t2,$t3, which reads $t2 and $t3 and writes $t1 The processor’s 32 general-purpose registers (MIPS) are stored in a structure called a register file Register file Collection of registers Any register can be read or written by specifying the number of the register in the file R-FORMAT INSTRUCTIONS (2) The register file contains the register state of the computer ALU is needed to operate on the values read from the registers R-format instructions have three register operands
For each instruction
need to read two data words from the register file write one data word into the register file
For each data word to be read from the registers, we need
an input to the register file that specifies the register number to be read and an output from the register file carrying the value that has been read from the registers R-FORMAT INSTRUCTIONS (3)
To write a data word, we will need two inputs:
one to specify the register number to be written and one to supply the data to be written into the register Two elements needed to implement R-format ALU operations R-FORMAT INSTRUCTIONS (4) The register file always outputs the contents of whatever register numbers on the Read register inputs Writes, controlled by the write control signal, which must be asserted for a write to occur at the clock edge Need a total of 4 inputs - 3 for register numbers and one for data And two outputs (both for data) The register number inputs are 5 bits wide to specify one of 32 registers (32 = 25) Data input and two data output buses are each 32 bits wide The ALU, which takes two 32‑bit inputs and produces a 32 ‑bit result, as well as a 1-bit signal if the result is 0 The operation performed by ALU is controlled with the ALU operation signal, which will be 4 bits wide LOAD WORD AND STORE WORD INSTRUCTIONS lw $t1,offset_value($t2) sw $t1,offset_value ($t2)
These instructions compute a memory address by adding the base
register ($t2), to the 16‑bit signed offset field If the instruction is a store, the value to be stored must also be read from the register file resides in $t1 If the instruction is a load, the value read from memory must be written into the register file ($t1)
Need both the register file and the ALU
Sign extension unit To sign-extend the 16‑bit offset field in the instruction to a 32‑bit signed value Data memory unit - to read from or write to LOAD WORD AND STORE WORD INSTRUCTIONS The data memory must be written on store instructions Data memory has read and write control signals, an address input, an input for the data to be written into memory DATAPATH FOR BRANCH INSTRUCTIONS The beq instruction has three operands Two registers that are compared for equality 16‑bit offset used to compute the branch target address relative to the branch instruction address beq $t1,$t2,offset Branch target address is computed by adding the sign-extended offset field of the instruction to the PC Base for the branch address calculation is the address of the instruction following the branch PC + 4 (next instruction address) in the instruction fetch datapath, is the base for computing the branch target address The offset field is shifted left 2 bits Shift increases the effective range of offset field by a factor of 4 DATAPATH FOR BRANCH INSTRUCTIONS (2) BRANCH INSTRUCTIONS (2) The datapath for a branch uses ALU - To evaluate the branch condition Adder - To compute the branch target as the sum of the incremented PC and the sign-extended, lower 16 bits of the instruction shifted left 2 bits branch datapath must do two operations: compute the branch target address compare the register contents branch is taken When the condition is true (the operands are equal) the branch target address becomes the new PC branch is not taken If the operands are not equal the incremented PC should replace the current PC DELAYED BRANCH
Instruction immediately following the branch is always
executed, independent of whether the branch condition is true or false Condition is false, the execution looks like a normal branch Condition is true, a delayed branch first executes the instruction immediately following the branch in sequential instruction order before jumping to the specified branch target address BUILDING A DATAPATH The operations of arithmetic-logical (or R-type) instructions and the memory instructions datapath are quite similar The key differences are the following: The arithmetic-logical instructions use the ALU, with the inputs coming from the two registers The memory instructions can also use the ALU for address calculation Second input is sign-extended 16-bit offset field from the instruction The value stored into a destination register comes from the ALU (for an R-type instruction) or the memory (for a load) THE DATAPATH FOR THE MEMORY INSTRUCTIONS AND THE R-TYPE INSTRUCTIONS Datapath for the operational portion of the memory-reference and arithmetic-logical instructions that uses a single register file and a single ALU ARCHITECTURE COMBINES THE ELEMENTS REQUIRED BY DIFFERENT INSTRUCTION CLASSES
