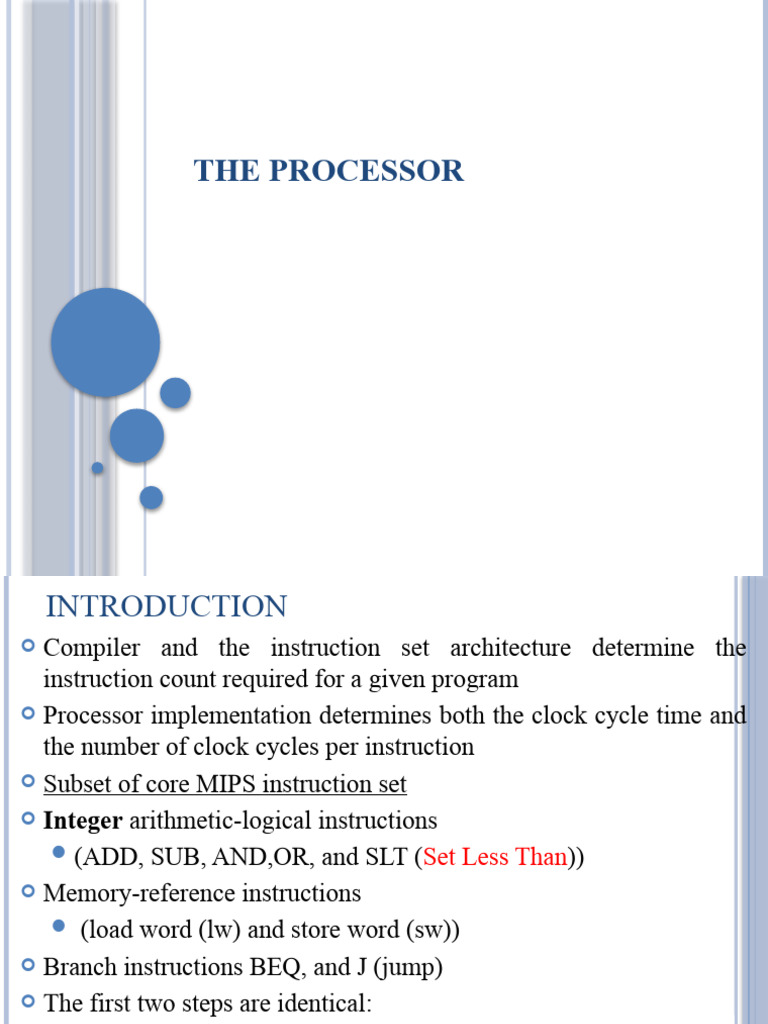

THE PROCESSOR

INTRODUCTION
 Compiler and the instruction set architecture determine the
instruction count required for a given program
 Processor implementation determines both the clock cycle time and
the number of clock cycles per instruction
 Subset of core MIPS instruction set

 Integer arithmetic-logical instructions

 (ADD, SUB, AND,OR, and SLT (Set Less Than))
 Memory-reference instructions
 (load word (lw) and store word (sw))
 Branch instructions BEQ, and J (jump)

 The first two steps are identical:

 1. Fetch the instruction
 2. Read one or two registers
 For the load word instruction, we need to read only one register
 INTRODUCTION (2)
 The simplicity and regularity of the instruction set simplifies the
implementation
 By making the execution of many of the instruction classes
similar
 Except jump, all instruction classes, use ALU after reading the
registers
 The memory-reference instructions for an address calculation
 The arithmetic-logical instructions for the operation
execution
 Branches for comparison
 After using the ALU, the actions required to complete various
instruction classes differ
 A memory-reference instruction will need to access the memory
either to read data for a load or write data for a store
 An arithmetic-logical or load instruction must write the data
INTRODUCTION (3)
 A branch instruction, may need to change the next instruction
address based on the comparison
 Otherwise, the PC should be incremented by 4 to get the address
of the next instruction
HIGH LEVEL VIEW OF MIPS
IMPLEMENTATION
 Showing the major functional units and their inter connections
 Shows most of the flow of data through the processor
 Omits two important aspects of instruction execution
 Multiplexer & control unit
 All instructions start by using the program counter
 PC supply the instruction address to the instruction memory
 The register operands specified by the fields of that instruction
are fetched
 Register operands operated on to compute
 a memory address (for a load or store),
 an arithmetic result (for an integer arithmetic-logical
instruction),
 or a compare (for a branch)
 The result from the ALU must be written to a register (AL
instruction)
 For load or store, the ALU result is used as an address to either
store a value from the registers or load a value from memory into
the registers
 The result from the ALU or memory is written back into the
register file
 Branches require the use of the ALU output to determine the next
instruction address
 The thick lines interconnecting the functional units represent
buses (consisting of multiple signals)
MIPS SUBSET IMPLEMENTATION INCLUDING
MULTIPLEXORS AND CONTROL UNIT
 A control unit has the instruction as an input
 Determine control lines for the functional units and multiplexors
 The top multiplexor (“Mux”) controls what value replaces the
PC (PC + 4 or the branch destination address)
 Controlled by AND gate with input as Zero output of the ALU
and a control signal indicating the instruction is a branch
 The middle multiplexor, to the register file, steer the output of
the ALU (in the case of an AL instruction) or the output of the
data memory (in case of a load) for writing into the register file
 Bottommost multiplexor determine whether the second ALU
input is from the registers (for an AL instruction OR a branch)
or from the offset field of the instruction (for a load or store)
 The added control lines are straightforward and determine
 The operation performed at the ALU,
 Whether the data memory should read or write,
 and whether the registers should perform a write operation
