Coursework Layout Update Version
Coursework Layout Update Version

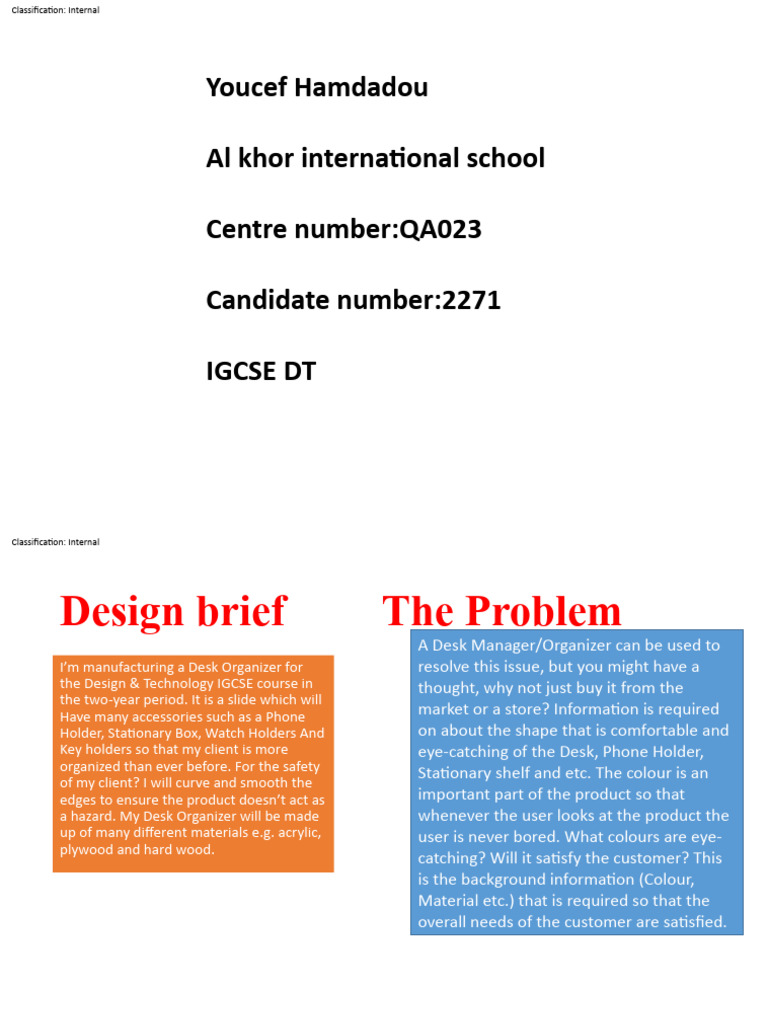

Youcef Hamdadou
Centre number:QA023
Candidate number:2271
IGCSE DT
Classification: Internal
What is the problem or opportunity? Why do you want to solve this problem?
The problem is that Al Khor lacks a range of The problem has been identified as many people have
bespoke Gadget Tidy items that are reasonably seen the lack of Gadget tidy items that fit their likings.
priced and fit the user’s taste without having to The lack of these products creates a problem for shops
travel far or shipping in the product that would that need to sell products.
create an additional cost.
Target Market
Research Plan
• Introduction and Primary research
In this slide I will include the key factors which I will then incorporate into my final
product. This slide will help me carry out my research which will lead to a better
product.
In my Primary Research I will carry out surveys and questionnaires and this will help me
complete the requirements of my target user. I will also observe existing products from
different shops and manufacturing companies which will give me new ideas for my
product and a better understanding of the market
Classification: Internal
Make a phone holder, Simple, classy Yes, this would hold your phone in any
Product analysis of existing products and a more vibey look place when needed to watch videos or
meetings
Product disassembly T wist the base to remove it and add It would help in aesthetics and would
a holder to balance it make it much flexible
Questionnaire and results I would make a Questionnaire, so I T his would help me find opinions for
know people opinions people
Client's interview I would ask them what do I change to improve what they want
Classification: Internal
Criterion 2
Product analysis 1
Aesthetics: It is a black colored smooth
plastic texture it follows an organic looking
style.
Material: Plastic and rubber hard plastic in the
base and soft rubber on top
Size: height 30 cm width 20 cm
Safety: It is relatively safe, although it
does have sharp corners and edges
Function: Its main function is to hold
the phones by getting a grip on a table
Cost: It is worth 15$ The material
used is pretty cheap and widely
available in stocks
Manufacture: The products is mass
produced and costs around 7$ to be
made
Classification: Internal
Criterion 2
Product analysis 2
Aesthetics: Warm, rich and affecting, its surface has a
tactile and sensuous strength, while the range of timber hues
and the depth of individual grain delights the eye.
Material: steel and wood the wood is the base to
hold everything and steel holding the wood
chunk that is holding the watch
Size: height 15cm width 20cm
Product analysis 3
Aesthetics: Simple, classy and a more vibey
look and it has a smooth layer and its very
soothing
Material: Plastic and marble layers around the
faces of the design and plastic from the inner
layer
Size: height 18 cm width 30 cm
Product analysis 4
Aesthetics: It has a classy look with
Product Disassembly
Classification: Internal
Criterion 2
Made out
of beach Aesthetics Mood Board
Modern
Made out of
polystrene
Ma
of de
o
wo ak
Minimalistic
od Made
of glass
Retro
Vintage
Classification: Internal
Criterion 2
Questionnaire
• What material do you prefer?
• What type of wood would you prefer?
• How much would you pay for a Gadget Tidy?
• What overall aesthetic do you prefer?
• What structure do you want for each material?
Classification: Internal
Criterion 2
Material
Material Number of Percentage Types of material Number of people Percentage(%)
people (%) Pine 3 18%
Wood 17 34% Meranti 2 12%
Plastic 12 24% Oak 7 41%
Acrylic 12 24% Plywood 3 18%
Metal 9 18% MDF 1 5.5%
Total 50 100% Other 1 5.5%
Total 17 100%
Questionnaire Results
9
12
17
12
Prices
Prices Number of people Percentage(%)
100$-110$ 12 24%
110$-120$ 21 42%
120$-130$ 8 16%
130$-140$ 9 18%
TOTAL 50 100%
Prices
60
50
40
30
20
10
0
100$-110$ 110$-120$ 120$-130$ 130$-140$ TOTAL
Classification: Internal
Criterion 2
Aesthetics Opinions
Aesthetics Number of people Percentage(%)
Classic 21 42%
Modern 14 28%
Colorful 7 14%
Industrial 8 16%
Retro 50 100%
Asthetics
Retro
Industrial
Colorful
Modern
Classic
0 10 20 30 40 50 60
Classification: Internal
Criterion 2
Structure
Structures Number of people Percentage(%)
Bended 15 30%
Straight 13 26%
Horizontal 12 24%
Slanted 10 20%
Total 50 100%
Classification: Internal
Criterion 2
Site Survey
m
ete
80 Centim
Full and objective research into the design brief and 7-10
3 intended user with thorough analysis of data/ information leading to a detailed
and justified specification for the product
Relevant research into the design brief and intended user with appropriate 4-6
2 analysis of data leading to a clear and partly justified specification for the
product.
1-3
Minimal examination and research into the design brief and intended user
1
resulting in a limited specification for the product.
4-5
3
Comprehensive investigation and full analysis of the design need, the
identification of the intended user and a clear and full design brief.
3-2
2
Relevant investigation with appropriate analysis of the design need, the
identification of the intended user and a functional design brief.
1
1
Limited investigation with an attempt at some analysis of the design
need which results in a simple design brief.
0
0 No creditable response.
Identifying a need the problem and who, what where) The problem is missing
Evaluation : I have decided to listen to the client review and I'm going to add feet in the
bottom of this design to make sure that nothing goes wrong and hopefully no accidents
happen.
Client review : it’s a very nice design and the acrylic makes it look good the phone holder on
the top is a very good add on, but it would have been better if you have added feet under to
make sure that its balanced and not risking anything fall from it.
Classification: Internal
•Criterion 3
9
Target market:
8
I have published a survey in Facebook
7
and tiktok and 82% have said that
Design 7 looks the best out of all of
6 them and it looks more useful
5
4 Conclusion:
In conclusion, I have decided that I will
3
take my client’s suggestion
2 into consideration and I will add two extra
rods in both side for design idea 7. This
1 way, my product will better meet
the specification points and it will
0
design design design design design design design design also satisfy my client.
idea 1 idea 2 idea 3 idea 4 idea 5 idea 6 idea 7 idea 8
Design idea
Classification: Internal Section 3: Generation and exploration of design ideas.
A wide range of imaginative solutions which are conceptually different. Ideas are developed and clarified with reference to the specification.
Appropriate drawing techniques are used and are well presented. 16-20
4
Detailed and concise annotations explore technical aspects of each idea including consideration of possible materials and constructions.
Ideas are evaluated with clear reference to each specification point.
A range of imaginative solutions which are conceptually different. Main ideas are developed and clarified with reference to the specification.
Appropriate drawing techniques used with annotations to explore most of the technical aspects including consideration of possible materials and 11-15
3
constructions.
Ideas are evaluated with some reference to the specification points.
A limited range of solutions. Some ideas are clarified with reference to the specification.
6-10
2 Use of appropriate technical drawings with limited annotations to explore some aspects of each idea.
Main ideas are evaluated with some reference to the specification points.
A narrow range of ideas with tendency to focus on one or two ideas with little or no reference to the specification points.
1 Basic sketching skills are used. 1-5
Little or no reference to the evaluation of design ideas.
Reference to specification
Personal evaluation
Client Feedback
Analysis of design ideas
Classification: Internal
Card
modelling
Classification: Internal
Development Ideas 1
Development Ideas
2
My second development
is going to add holes in
the top of design because
it needs space on the top
for the pencils to go
through and hold on.
Classification: Internal
Development ideas 3
Development
Material: Plywood
Step 1: Measure the frame so it 90 mm each side
Step 2:Cut it using a tenon saw
Step 3: Sand the frame and make sure the edges and sanded
Classification: Internal
Step 1: Measure out the length and width and thickness using a steel ruler
Step 2: sand it off to make it look smooth
Classification: Internal
Dimensions and Measurements for the Boxes
STEP 1
Measure and marking out the cuts
for the finger joint on the ply wood .
STEP 3
Join and clamp them together for
dry fit and to find
the measurements of the base .
STEP 4
STEP 1 Equipment Step 3 Equipment Measure and mark out
• Pencil • F clamp the ply wood base .
• Tri Square Step 4 Equipment STEP 5
• Steel Ruler • Pencil Cut the base Health and safety Step
• Marking Gauge • Tri Square 5 Try to Assign a
• Steel Ruler teacher to cut it for
Step 2 Equipment you
Step 5 Equipment
• Fret Saw
• Band saw
Classification: Internal
Step 1: Measure out the length and width and thickness using a steel ruler
Step 2: sand it off to make it look smooth
Classification: Internal
Step 1 :Measure the height length and width using a steel ruler
Step 2 : Put it to get laser cut by the laser cutter
Step 3 : Sand it to make sure its smooth
Classification: Internal
3D Model
Classification: Internal
Cutting List
Name: Youcef hamdadou Date:8/11/23 Required:
Acrylic Between Lower base and upper Acrylic Red 300mm 150mm 3mm 1
base
mark out where aluminium rods will be placed on Try square , marking gauge , Make sure hammer is stable Make sure measurements
all three compartments . centre punch , hammer are accurate
Place compartments on pillar drills and set the Pillar drill Safety glasses , not loose Ensure depth stop is in
depth . clothing , tied hair the, correct place , test
with scrap piece first
Drill all three compartments on the marking out Pillar drill , 15mm forstner bit Safety glasses , not loose Ensure drill is centred
using a 15mm forstner bit . clothing , tied hair ,secured in a
vice when drilling
Place aluminium rod in the centre lathe . Centre lathe Safety glasses , not loose Check measurements with
clothing , tied hair a digital calliper
Face off the aluminium . Centre lathe Safety glasses , not loose Ensure tool is set right
clothing , tied hair Correct speed of centre
lathe
Turn and reduce ends to 15 mm diameter Centre lathe Safety glasses , not loose Speed , check diameter
clothing , tied hair with digital calliper
Polish with wet and dry Wet and dry paper. Ensure smooth finish
Part it off . Parting tool Safety glasses , not loose Check dimension
clothing , tied hair
Process
Production plan for the Base Tools Heath and safety Quality control
Cut the meranti into shape Tenon saw, ruler Safety goggles needed and DOUBLE CHECK measurements
concentration
Sand the meranti to match the shape Disk sander Safety goggle and concentration Make sure to not sand over the
marking out
Than stick the bases and acrylic Contact Adhesive Ensure to have the exact fit
together and let it sit
Mill out the phone holder and drill the Miller, drill Safety goggle Ensure exact fit
holes to place the rods
Measure and mark out the curved Plywood Mark out using try Check Measurements Be aware of pointed and sharp tools
shape using a template. square, marking
Mark out where the grooves will gauge, steel rule.
go.
Create the grooves with router Plywood Table Router Double check adjustments on the Keep hands away, supervised, check
table and milling machine. Milling Machine table. Test depth on scrap piece. setting, speed depth. Extraction, mask
goggles.
Cut the curves Plywood Fret Saw Stay on the waste side Keep hands away from blade, goggles,
extraction
Smooth the edges using a range of Plywood Glass paper: P60, Check surface quality Dust mask
glass papers. 120, 240, 600.
Classification: Internal
Step 1
Making aluminum rods cutting
them up and polishing them
Classification: Internal
Step 2
Step 3
Classification: Internal
Step 4
Classification: Internal
Step 5
Classification: Internal
Step 6
Classification: Internal
Evaluation
SPECIFICATION DESCRIPTION - EVALUATION
Aesthetics • Traditional design The colours are of natural mahogany. It looks rich and attractive; however, it is
• Neutral colours the same design throughout making the lamp look boring. The lamp shade is a
deep red that matches with the textured mahogany. It fits the neutral colours
well.
Costs • Ranges from 50 – 120QAR It may be in the more expensive side as it is made of mahogany. However, I think
it will meet the price range.
Customer • It must appeal to teenagers/young adults from The design suits the age range as it is a sophisticated design and has attractive,
ages 15 – 20 rich colours
shape/size • Big enough to hold The size is both tall and large however it lacks curved edges/shapes.
• Curved shape
Safety • Smooth edges It has some sharp edges, eg. The lamp shade, the main body and the drawer. I
could have filed the edges off a bit so that it is safer and makes it more unique
Function • Provides a large area of light As it is tall it can cover a lot of areas with light
Material • Must be made of metal, wood or plastics The product uses all the materials. Lampshade – acrylic, stand – aluminum, and
the main body is made of mahogany wood
Classification: Internal
