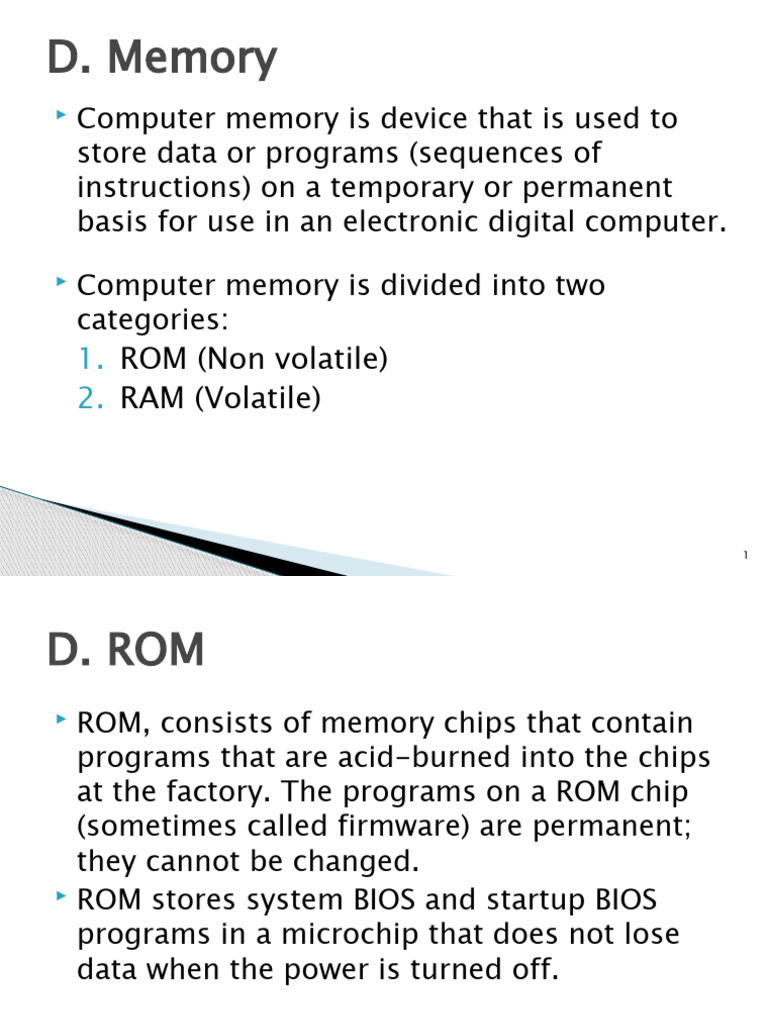

D.

Memory
 Computer memory is device that is used to
store data or programs (sequences of
instructions) on a temporary or permanent
basis for use in an electronic digital computer.
 Computer memory is divided into two
categories:
1. ROM (Non volatile)
2. RAM (Volatile)

1
D. ROM
 ROM, consists of memory chips that contain
programs that are acid-burned into the chips
at the factory. The programs on a ROM chip
(sometimes called firmware) are permanent;
they cannot be changed.
 ROM stores system BIOS and startup BIOS

programs in a microchip that does not lose

data when the power is turned off.

2
D. Flash ROM
 Flash ROM can be used on systemboards, and
it allows upgraded versions of the BIOS to be
written to it without having to physically
replace the chip.
 Technically speaking, Flash ROM is called

EEPROM (electronically erasable programmable

read-only memory), which means you can
change the programming on the chip through
software on your PC.
 The updated programming will be retained,

even when you turn off your PC for long

periods of time, until you change it again.
3
D. BIOS Upgrade
 BE VERY CAREFUL that you upgrade the BIOS
with the correct upgrade.
 Upgrading with the wrong file could make your

system BIOS totally useless.

 If you’re not sure that you’re using the correct

upgrade, DON’T GUESS.

 Check with the technical support for your BIOS

before moving forward.

 To upgrade Flash ROM, follow the directions

that came with your systemboard and the

upgrade software itself.

4
D. RAM
 RAM, can be written to and read from by the
CPU and some applications.
 It is stored on chips that are either socketed

or soldered directly on the systemboard or

housed on little mini-boards.
 Since RAM depends on power from the

computer, all of the data in RAM is lost when

the power is turned off.

5
D. RAM
 RAM is a volatile memory.
 For economic reasons, the main memories

found in personal computers are normally

consists of dynamic RAM (DRAM).
 Other parts of the computer, such as cache

memories and data buffers in hard disks,

normally use static RAM (SRAM).

6
D. RAM
D. RAM
D. RAM
 DRAM (memory) modules
Single In-line Memory Module (SIMM)
Dual In-line Memory Module (DIMM)
 Double Data Rate (DDR)
 (Synchronous DRAM) SDRAM modules operate

at various speeds, depending on the bus

speed whereas SIMM module only operates at
a single speed.

9
D. RAM

10
D. RAM Installation
 When installing SIMMs or DIMMs, remember
to protect the chips against static electricity.
 Always use a ground bracelet as you work.
 Turn the power off and remove the cover to

the case.
 Handle memory modules with care. Ground

yourself before unpacking or picking up a

card.
 Don’t stack cards, because you can loosen a

chip.

11
D. RAM Installation

12
D. RAM Installation
 Place each module securely in its slot. Turn on
the PC and watch the amount of memory being
counted by POST during the boot process.
 If all the memory you expect does not count
up correctly, remove and reseat each module
carefully.
 To remove a module, release the latches on
both sides of the module and gently rotate the
module out of the socket at a 45-degree
angle.

13
D. Memory Upgrade
 When you add more memory to a computer,
ask yourself these questions:
 How much memory do I need?
 How much memory can my computer

physically accommodate?
 What increments of memory does my

systemboard support?
 How much additional memory is cost effective?
 What kind of memory can fit on my

systemboard?

14
D. Memory Upgrade
 What memory is compatible with the memory
I already have installed?
 Adding more memory to improve a slow-

performing PC will probably not help. Perhaps

what you might really need is a more
powerful CPU, or a faster hard drive or
systemboard.
 Therefore it is imperative to observe your

options before rushing to increase memory.

15
D. Memory Summary
 Memory can be viewed as both physical
memory installed on the systemboard and
expansion boards, as well as logical memory
managed by the operating system.
 Two kinds of physical memory are RAM and

ROM.
 System BIOS is stored on ROM chips on the

systemboard. In addition, expansion boards

sometimes have ROM chips on them, holding
BIOS programming to manage the device.
 Two kinds of memory modules are SIMMs and

DIMMs.
16
D. Memory Summary
 There are two kinds of RAM: SRAM and DRAM.
SRAM is faster because it holds data as long as
power is available to the chip. DRAM loses the data
after a very short time and must be refreshed.
 SRAM is used in a memory cache, which speeds up
the overall computer performance by temporarily
holding data and programming that may possibly
be used by the CPU in the near future.
 Flash memory holds data permanently until it is
overwritten, and is commonly used on Flash ROM
chips and memory cards for notebook computers.

17
D. Memory Summary
 Synchronous DRAM is a faster kind of
memory than the less expensive
asynchronous DRAM found on SIMMs.
 SRAM comes as either synchronous or

asynchronous memory. Synchronous is faster

and slightly more expensive than
asynchronous memory.
 The practice of copying BIOS from slower

ROM chips to faster RAM chips for processing

is called shadowing ROM. The area of RAM
holding the BIOS is called shadow RAM.

18
E. Power Supply

19
E. Power Supply
 A computer power supply changes and
conditions the house electrical current in several
ways, functioning as both a transformer and a
rectifier.
 It steps down the voltage from the 220 Volt

house current to 3.3, 5, and 12 volts or to 5 and

12 volts, and changes incoming alternating
current to direct current, which the computer
and its peripherals require.
 The monitor, however, receives the full 220 volts

of AC current, converting that current to DC.
