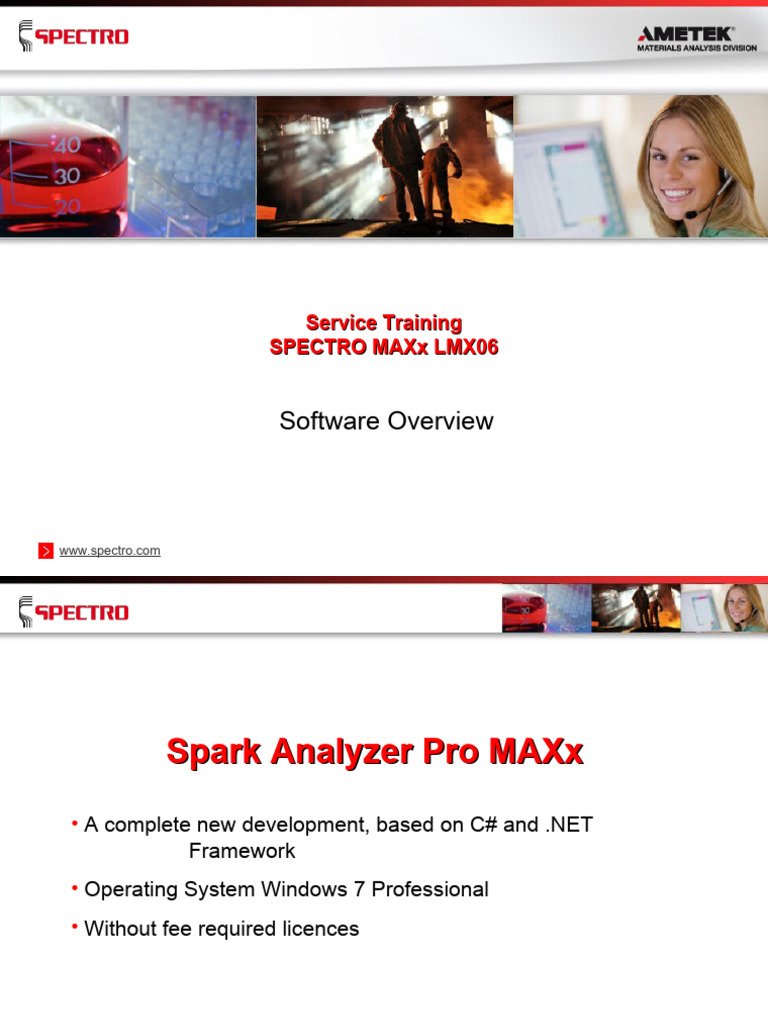

Service Training

SPECTRO MAXx LMX06

Software Overview

www.spectro.com
 Spark Analyzer Pro MAXx
• A complete new development, based on C# and .NET
Framework
• Operating System Windows 7 Professional
• Without fee required licences

www.spectro.com 2
 Overview

• Easy Handling (New Platform)

– Separation of Method Development and Routine Measurement
– Application Profiles – Creation Simplified by Wizard
– Simple Navigation
• ICal
• System Diagnosis
• Service
• Service Report
• User and Service Login
• ...

www.spectro.com 3
Routine Measurement and Method Development

www.spectro.com 4
Routine Operation

• Measurement
• Application Profiles
• Toolbar Navigation

www.spectro.com
Application Profiles

• Application Profiles
– Manual or Automatic Method Selection (APF)
– Automatic Reproducibility Test
– Grade Search / Grade Verification
– Sample IDs
– Print / Export / Display Settings
– Value Formatting Rules
– Function Keys and Toolbar for Measurement Screen

• Profiles are created using a Wizard

www.spectro.com
Method Development

• Creation, Editing, Viewing of

Method Data
• Calibration Measurements
• Usability
– Topic Navigation
– Docking Windows
– Highlight Changes in Yellow
– Calibration Spectra included in
Methods

www.spectro.com
 Overview

• Easy Handling (New Platform)

• ICal
– Primary Reference and Sample Replacement Recording, Master-Slave
ICalization (Method Development)
– ICalization (Routine Measurement)
• System Diagnosis
• Service
• Service Report
• User and Service Login
• ...

www.spectro.com 8
Master-Slave ICalization

• ICal Considers Three Components

– Instrument Differences
– Charge Differences of the Sample
– Time Shifts
• The Shift Resulting from the
Instrument Switch compared to the
Reference is by far the largest
Difference
• The Master-Slave ICalization
Eliminates Errors Resulting from
Inst and Charge

SpecInstrument(Charge_x, t) = SpecReference(Charge0, t0) + Inst + Charge + Time

www.spectro.com
 Overview

• Easy Handling (New Platform)

• ICal
• System Diagnosis
– Instrument Status in all views
– Extensive event logging
– Diagnostics view in the Routine Measurement
• Service
• Service Report
• User and Service Login
• ...

www.spectro.com 10
System Diagnosis (Method Development)

• Instrument status and optics

temperatures in the status bar
• Service Tools dialog for Firmware
Diagnostics (DMB)
• Constant Light Test

www.spectro.com
System Diagnosis (Routine Measurement)

• Status indicator in the status bar

• Quick access to the Diagnosis
View
• Extended component information
• Encountered errors in the
message table

www.spectro.com
 Overview

• Easy Handling (New Platform)

• ICal
• System Diagnosis
• Service
– Test of valves functionality
– Devices and Firmware access
• Service Report
• User and Service Login
• ...

www.spectro.com 13
Service

• Manual I/O control (Shutter, Mask,

Const-Flow, Flush)

• Access to the Firmware Diagnostics

Tools (DMB) – only with Service Token

www.spectro.com
 Overview

• Easy Handling (New Platform)

• ICal
• System Diagnosis
• Service
• Service Report
– Status Monitor
– Automatic creation of the “Service Report”
• User and Service Login
• ...

www.spectro.com 15
Service Report

• Instrument Data and Configuration

• Firmware and Software Versions
• Current component states

• The “Service Report” contains the

presented information and
preselected files (status, logbooks,
configurations)

www.spectro.com
 Overview

• Easy Handling (New Platform)

• ICal
• System Diagnosis
• Service
• Service Report
• User and Service Login
– User Management
– New flexible Service Token concept
• ...

www.spectro.com 17
Service and User Login

• Different authorization mechanisms

for SPECTRO Service and Users
– Service Token
– User Management

• User Management
– Can be deactivated
– Flexible User’s Permission Roles
(Administrator, Full, Routine and Basic)
– Password security (format, limited
validity time and repetition count)
– Access security (auto-logoff, max. failed
login tries)

www.spectro.com
 Overview

• Easy Handling (New Platform)

• ICal
• System Diagnosis
• Service
• Service Report
• User Management
• ... (there is even more)

www.spectro.com 19
 Overview (Continued)

• Spectra Viewer Pro

– ICal configuration
– Spectra examination

• Sample Result Manager

– Results overview and details
– Print, export
– Filtering, sorting, grouping
– Graphical results summary
• Sample Result Conversion Tool
– SPECTRO XML to 4.4 format
– File based

www.spectro.com 20
