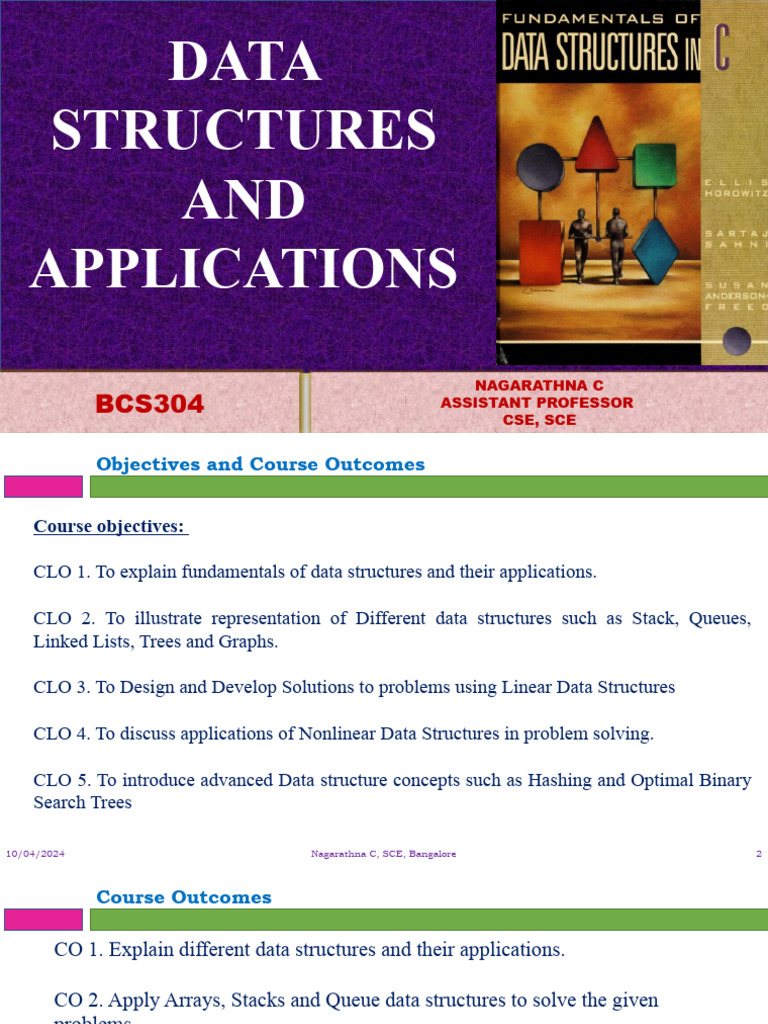

Data Structure Module 1

DATA
STRUCTURES
AND
APPLICATIONS
NAGARATHNA C
BCS304
10/04/2024
ASSISTANT PROFESSOR
CSE, SCE
1
Objectives and Course Outcomes
Course objectives:
CLO 1. To explain fundamentals of data structures and their applications.
CLO 2. To illustrate representation of Different data structures such as Stack, Queues,

Linked Lists, Trees and Graphs.
CLO 3. To Design and Develop Solutions to problems using Linear Data Structures
CLO 4. To discuss applications of Nonlinear Data Structures in problem solving.
CLO 5. To introduce advanced Data structure concepts such as Hashing and Optimal Binary
Search Trees
10/04/2024 Nagarathna C, SCE, Bangalore 2

Course Outcomes
CO 1. Explain different data structures and their applications.
CO 2. Apply Arrays, Stacks and Queue data structures to solve the given
problems.
CO 3. Use the concept of linked list in problem solving.
CO 4. Develop solutions using trees and graphs to model the real-world

problem.
CO 5. Explain the advanced Data Structures concepts such as Hashing

Techniques and Optimal Binary Search Trees.

Module-1
MODULE 1
INTRODUCTION TO DATA STRUCTURES: Data Structures, Classifications (Primitive

& Non-Primitive), Data structure Operations Review of pointers and dynamic Memory
Allocation
ARRAYS and STRUCTURES: Arrays, Dynamic Allocated Arrays, Structures and Unions,
Polynomials, Sparse Matrices, representation of Multidimensional Arrays, Strings
STACKS: Stacks, Stacks Using Dynamic Arrays, Evaluation and conversion of Expressions

INTRODUCTION TO DATA STRUCTURES
Data: Collection of raw facts.
Data structure is representation of the logical relationship

existing between individual elements of data.
Data structure is a specialized format for organizing and

storing data in memory that considers not only the elements
stored but also their relationship to each other.

The choice of a particular data model depends on the two

considerations:
1. It must be rich enough in structure to mirror the actual

relationships of the data in the real world.
2. The structure should be simple enough that one can

effectively process the data whenever necessary.

• Data structure affects the design of both structural & functional aspects of a
program.
Program=algorithm + Data Structure
• Algorithm is a step by step procedure to solve a particular function.

algorithm is a set of instruction written to carry out certain tasks & the data
structure is the way of organizing the data with their logical relationship
retained.
• To develop a program of an algorithm, we should select an appropriate data
structure for that algorithm.
• Therefore algorithm and its associated data structures from a program.

BASIC TERMINOLOGY
Elementary Data Organization
Data: Data are simply values or sets of values.
Data items: Data items refers to a single unit of values
Entity: An entity is something that has certain attributes or properties which may be
Field: is a single elementary unit of information representing an attribute of an entity.
Record: is the collection of field values of a given entity.
assigned values.
File: is the collection of records of the entities in a given entity set.

CLASSIFICATION OF DATA STRUCTURE
Data structure are normally divided into two broad categories:
• Primitive Data Structure
• Non-Primitive Data Structure



CLASSIFICATION OF DATA STRUCTURE: Primitive DS
• There are basic structures and directly operated upon

by the machine instructions.
• In general, there are different representation on

different computers.
• Integer, Floating-point number, Character constants,

string constants, pointers etc, fall in this category.

CLASSIFICATION OF DATA STRUCTURE: Non Primitive DS
• There are more sophisticated data structures.

• These are derived from the primitive data structures.
• The non-primitive data structures emphasize on structuring of a group
of homogeneous (same type) or heterogeneous (different type) data
items.
• Lists, Stack, Queue, Tree, Graph are example of non-primitive data
structures.
• The design of an efficient data structure must take operations to be
performed on the data structure.

Linear Data Structure:
A data structure is said to be linear if its elements form a sequence or a linear list.
There are basically two ways of representing such linear structure in memory.
1. One way is to have the linear relationships between the elements represented by
means of sequential memory location. These linear structures are called arrays.
2. The other way is to have the linear relationship between the elements represented
by means of pointers or links. These linear structures are called linked lists.
The common examples of linear data structure are Arrays, Queues, Stacks, Linked
lists

Non-Linear Data Structure:
• A data structure is said to be non-linear if the data are not arranged in

sequence or a linear.
• The insertion and deletion of data is not possible in linear fashion.
• This structure is mainly used to represent data containing a hierarchical

relationship between elements.
• Trees and graphs are the examples of non-linear datastructure.

DIFFERENT BETWEEN THEM
• A primitive data structure is generally a basic structure

that is usually built into the language, such as an
integer, a float.
• A non-primitive data structure is built out of primitive

data structures linked together in meaningful ways,
such as a or a linked-list, binary search tree, AVL
Tree, graph etc.

CLASSIFICATION OF DATA STRUCTURE: NON PRMITIVE DS
The most commonly used operation on data structure are

broadly categorized into following types:
• Create
• Selection
• Updating
• Searching
• Sorting
• Merging
• Destroy or Delete

REVIEW OF POINTERS AND DYNAMIC MEMORY ALLOCATION
Pointer: A pointer is a special variable which contains address of a

memory location. Using this pointer, the data can be accessed.

REVIEW OF POINTERS AND DYNAMIC MEMORY ALLOCATION
General form of pointer declaration is –
type* name;
where type represent the type to which pointer thinks it is pointing to.
Pointers to machine defined as well as user-defined types can be made Pointer

Intialization:
variable_type *pointer_name = 0;
or variable_type *pointer_name = NULL;
char *pointer_name = "string value here";

DYNAMIC MEMORY ALLOCATION
This is process of allocating memory-space during execution-time (or run-

time).
• This is used if there is an unpredictable storage requirement.
• Memory-allocation is done on a heap.
• Memory management functions include:
→ malloc (memory allocate)
→ calloc (contiguous memory allocate)
→ realloc (resize memory)
→ free (deallocate memory)

DYNAMIC MEMORY ALLOCATION
• malloc function is used to allocate required

amount of memory-space during run-time.
• If memory allocation succeeds, then address of

first byte of allocated space is returned. If
memory allocation fails, then NULL is returned.
• free() function is used to deallocate(or free) an

area of memory previously allocated by
malloc() or calloc(). Allocation and deallocation of memory

DANGLING REFERENCE
Whenever all pointers to a dynamically allocated area of storage are lost, the
storage is lost to the program. This is called a dangling reference.
POINTERS CAN BE DANGEROUS
• Set all pointers to NULL when they are not actually pointing to an
object.
• Use explicit type casts when converting between pointer types.
• Pointers have same size as data type 'int'.

ALGORITHM SPECIFICATION
An algorithms must satisfy the following criteria:
1. Input: There are zero or more quantities that are externally supplied.
2. Output: At least one quantity is produced.
3. Definiteness: Each instruction is clear and unambiguous
4. Finiteness: If we trace out the instructions of an algorithm, then for all
cases, the algorithm terminates after a finite number of steps.
5. Effectiveness: Every instruction must be basic enough to be carried out, in
principle, by a person using only pencil and paper.

ALGORITHM SPECIFICATION
Algorithm 1.1: Selection sort algorithm.
Algorithm 1.2: finding the smallest integer.
Algorithm 1.3: Binary search
Algorithm 1.4: Permutations

RECURSIVE FUNCTIONS
• A function calls itself either directly or indirectly during execution.
• Recursive-algorithms when compared to iterative-algorithms are normally

compact and easy to understand.
Various types of recursion

1) Direct recursion: where a recursive-function invokes itself.

RECURSIVE FUNCTIONS
2) Indirect recursion: A function which contains a call to another function which in turn calls
another function and so on and eventually calls the first function.

RECURSIVE FUNCTIONS

ARRAYS
ARRAYS
 An Array is defined as, an ordered set of similar data items. All the data items of an
array are stored in consecutive memory locations.
 The data items of an array are of same type and each data items can be accessed
using the same name but different index value.
 An array is a set of pairs, such that each index has a value associated with it. It can be
called as corresponding or a mapping

ARRAYS

ARRAYS
Example: Program to find sum of n numbers
one-dimensional array
int list[5]; //array of 5 integers
int *plist[5]; //array of 5 pointers to integers
• Address of first element list[0] is called base-address.
• Memory-address of list[i] can be computed by compiler

as
+i*sizeof(int) where =base address

ARRAYS
Program to print both address of ith element of given array & the value found at that address:
DYNAMICALLY ALLOCATED ARRAYS ONE-DIMENSIONAL ARRAYS

ARRAYS
TWO DIMENSIONAL ARRAYS
• These are created by using the concept of array of arrays.
• A 2-dimensional array is represented as a 1-dimensional array in which each element

has a pointer to a 1-dimensional array as shown below
int x[5][7]; //we create a 1-dimensional array x whose length is 5;
//each element of x is a 1-dimensional array whose length is 7.
• Address of x[i][j] = x[i]+j*sizeof(int)

ARRAYS
Prg: Dynamically create a two-dimensional array
CALLOC
• These functions → allocate user-specified amount of memory & → initialize the allocated memory to 0.
• On successful memory-allocation, it returns a pointer to the start of the new block. On failure, it returns the
value NULL.
• To create clean and readable programs, a CALLOC macro can be created

ARRAYS
REALLOC
• These functions resize memory previously allocated by either malloc or calloc.
For example,
realloc(p,s); //this changes the size of memory-block pointed at by p to s < oldSize,
//the rightmost oldSize-s bytes of old block are freed..
• When s>oldSize, the additional s-oldSize have an unspecified value and when s
• On successful resizing, it returns a pointer to the start of the new block. On failure, it returns the value NULL.
• To create clean and readable programs, the REALLOC macro can be created

STRUCTURES AND UNIONS
A structure (called a record in many other programming languages) is a collection of data items,
where each item is identified as to its type and name.
struct {
char name[10];
int age;
float salary;
} person;
 Dot operator(.) is used to access a particular member of the structure.

strcpy(person.name,"james") ;
person.age
person.salary = 35000;

Unions
 This is similar to a structure, but the fields of a union must share their memory
space. This means that only one field of the union is "active" at any given
time.
Self-Referential Structures
• A self-referential structure is one in which one or more of its components is a

pointer to itself.
• These require dynamic storage management routines (malloc & free) to explicitly
obtain and release memory.

typedef struct list

{
char data;
list *link; // list is a pointer to a list structure
};

•Consider three structures and values assigned to their respective fields:

item1.link=&item2;
item2.link=&item3;
•We can attach these structures together as follows
List item1,item2,item3;
item1.data='a';
item2.data='b';
item3.data='c';
item1.link=item2.link=item3.link=NULL;

POLYNOMIALS ABSTRACT DATA TYPE
 A polynomial is a sum of terms, where each term has a form ax e ,
where x=variable, a=coefficient and e=exponent.
 Two example polynomials are:
 The largest (or leading) exponent of a polynomial is called its degree.
 Coefficients that are zero are not displayed.
 The term with exponent equal to zero does not show the variable since x raised to a
power of zero is 1.

• There are standard mathematical definitions for the sum and product of polynomials.
• Assume that we have two polynomials
• A(x)= ∑ai x i & B(x)= ∑bi x i


POLYNOMIAL REPRESENTATION:
• One way to represent polynomials in C is to use typedef to create the type polynomial
as below:
#define MAX-DEGREE 101 /*Max degree of polynomial+1*/
typedef struct
{
int degree;
float coef[MAX-DEGREE];
} polynomial;
• Now if a is a variable and is of type polynomial and n < MAX_DEGREE,

• the polynomial A(x) = Σai xi would be represented as:
a.degree = n
a.coef[i] = an-i , 0 ≤ i ≤ n

This representation leads to very simple algorithms for most of the operations, it wastes a lot
of space
To preserve space an alternate representation that uses only one global array, terms to store all
polynomials.
The C declarations needed are:
MAX_TERMS 100 /*size of terms array*/

typedef struct
{
float coef;
int expon;
} polynomial;
polynomial terms[MAX-TERMS];
int avail = 0;

Consider the two polynomials

A(x) = 2x1000+ 1
B(x) = x4 + 10x3 + 3x2 + 1

Course Outcomes

void attach(float coefficient, int exponent)

{
if (avail >= MAX-TERMS)
{
fprintf(stderr,"Too many terms in the polynomial\n");
exit(EXIT_FAILURE);
}
terms[avail].coef = coefficient;
terms[avail++].expon = exponent;
}
/* add a new term to the polynomial */

SPARSE MATRICES
• A matrix contains m rows and n columns of elements

• If m equals n, the matrix is square.

SPARSE MATRICES
What is Sparse Matrix?

A matrix which contains many zero entries or very few non-zero entries is called as
Sparse matrix.
Sparse Matrix Representation
• An element within a matrix can characterize by using the triple This means that, an
array of triples is used to represent a sparse matrix.
• Organize the triples so that the row indices are in ascending order.
• The operations should terminate, so we must know the number of rows and columns,
and the number of nonzero elements in the matrix.

SPARSE MATRICES
SparseMatrix Create(maxRow, maxCol) ::=
#define MAX_TERMS 101 /* maximum number of terms +1*/
typedef struct
{
int col;
int row;
int value;
} term;
term a[MAX_TERMS];

SPARSE MATRICES
• The representation of matrix in the array “a”

a[0].row contains the number of rows, a[0].col
contains the number of columns and a[0].value
contains the total number of nonzero entries.
• Positions 1 through 8 store the triples representing

the nonzero entries.
• The row index is in the field row, the column

index is in the field col, and the value is in the
field value. The triples are ordered by row and
within rows by columns.
TRANSPOSING A MATRIX
• To transpose a matrix, interchange the rows and columns.

• This means that each element a[i][j] in the original matrix becomes
element a[j][i] in the transpose matrix.
• A good algorithm for transposing a matrix:
for each row i
take element and store it as
element<i,j,value> of the transpose;
• If we process the original matrix by the row indices it is difficult to
know exactly where to place element <i,j,value> in the transpose
matrix until we processed all the elements that precede it.

• This can be avoided by using the column indices to determine the

placement of elements in the transpose matrix.
• for all elements in column j
place element <i,j,value> in
element <j,i,value>

The columns within each row of the transpose matrix will be arranged in ascending order.

STRING
• Each programming languages contains a character set that is used to communicate

with the computer.
• The character set include the following:
• Alphabet: A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
• Digits: 0 1 2 3 4 5 6 7 8 9
• Special characters: + - / * ( ) , . $ = ‘ _ (Blank space)
• String: A finite sequence S of zero or more Characters is called string.
• Length: The number of characters in a string is called length of string.
• Empty or Null String: The string with zero characters.

STRING
• Concatenation:
• Let S1 and S2 be the strings.The string consisting of the characters
of S1 followed by the character S2 is called Concatenation of S1
and S2.
• Ex: ‘THE’ // ‘END’ = ‘THEEND’ ‘THE’ // ‘ ’ // ‘END’ = ‘THE END’
• Substring: A string Y is called substring of a string S if there exist

string X and Z such that S = X // Y // Z If X is an empty string, then Y
is called an Initial substring of S, and Z is an empty string then Y is
called a terminal substring of S.
• Ex: ‘BE OR NOT’ is a substring of ‘TO BE OR NOT TO BE’
‘THE’ is an initial substring of ‘THE END’

STRING
Declaration 1:
#define MAX_SIZE 100 /* maximum size of string */
char s[MAX_SIZE] = {“dog”};
char t[MAX_SIZE] = {“house”};

STRING
Declaration 2:
char s[ ] = {“dog”};
char t[ ] = {“house”};
Using these declarations, the C compiler will allocate just enough space
to hold each word including the null character.

STRING
structure String is objects: a finite set of zero or more characters.

functions: for all s, t ꞒString, i, j, m Ꞓ non-negative integers
• String Null(m) = return a string whose maximum length is m characters, but is initially
set to NULL We write NULL “ ”
• Integer Compare(s,t)= if s equals t

return 0
else if s precedes t
return -1
else
return +1

STRING
• Boolean IsNull(s) = if (Compare(s, NULL))

return FALSE
else
return TRUE
• Integer Length(s) = if (Compare(s, NULL))
return the number of characters in s
else
return 0.
• String Concat(s, t) = if (Compare(s, NULL))
return a string whose elements are those of s
followed by those of t
else
return s.

STRING

STRING
Assume that we have two strings, say string i and string 2, and that we want to
insert string 2 into string 1 starting at the ith position of string 1.

STRING

STRING
Assume that we have two strings, string and pat, where pat is a pattern to be searched for in
string. The easiest way to determine if pat is in string is to use the built-in function strstr. If
we have the following declarations:

Course Outcomes

STRING: Pattern matching by checking end indices first

STRING

STRING: Knuth, Morris, Pratt pattern matching algorithm

THE STACK ABSTRACT DATA TYPE
• This is an ordered-list in which insertions(called push) and deletions(called pop) are

made at one end called the top
• Since last element inserted into a stack is first element removed, a stack is also known
as a LIFO list(Last In First Out).
• When an element is inserted in a stack, the concept is called push, and when an
element is removed from the stack, the concept is called pop.
• Trying to pop out an empty stack is called underflow and trying to push an element in
a full stack is called overflow.


SYSTEM STACK
A stack used by a program at run-time to process function-calls is called system-stack.
• When functions are invoked, programs
→ create a stack-frame (or activation-record) &
→ place the stack-frame on top of system-stack
• Initially, stack-frame for invoked-function contains only
→ pointer to previous stack-frame &
→ return-address
• A new stack-frame is then
→ created for the invoked-function &
→ placed on top of the system-stack

SYSTEM STACK

ARRAY REPRESENTATION OF STACKS
•Stacks may be represented in the computer in various ways such as one-way linked
list (Singly linked list) or linear array.
•Stacks are maintained by the two variables such as TOP and MAX_STACK_SIZE.
•TOP which contains the location of the top element in the stack. If TOP= -1, then it
indicates stack is empty.
•MAX_STACK_SIZE which gives maximum number of elements that can be stored
in stack.
Stack can represented using linear array as shown below

Main stack operations
– Push (int data): Inserts data onto stack.
– int Pop(): Removes and returns the last inserted element from the stack.
• Auxiliary stack operations
– int Top(): Returns the last inserted element without removing it.
– int Size(): Returns the number of elements stored in the stack.
– int IsEmptyStack(): Indicates whether any elements are stored in the stack or not.
– int IsFullStack(): Indicates whether the stack is full or not.


Add an item to a stack

Delete an item in a stack

STACK USING DYNAMIC ARRAYS
Stack CreateS(max-stack-size') ::=

#define MAX—STACK—SIZE 100 /*maximum stack size */
typedef struct
{
int key;
/* other fields */
} element;
element stack[MAX—STACK—SIZE];
int top - -1;
Boolean IsEmpty(Stack) ::= top <0;
Boolean IsFulI(Stack) ::= top >= MAX-STACK-SIZE-1;

STACK APPLICATIONS: POLISH NOTATION
Expressions: It is sequence of operators and operands that reduces to a single value after evaluation is
called an expression.
X=a/b–c+d*e–a*c

 Infix Expression: In this expression, the binary operator is placed in-between the operand.
The expression can be parenthesized or un- parenthesized.
Example: A + B
Here, A & B are operands and + is operand
 Prefix or Polish Expression: In this expression, the operator appears before its operand.
Example: + A B
 Postfix or Reverse Polish Expression: In this expression, the operator appears after its
operand.
Example: A B +


STACK USING DYNAMIC ARRAYS: INFIX TO POSTFIX CONVERSION
An algorithm to convert infix to a postfix expression as follows:

1. Fully parenthesize the expression.
2. Move all binary operators so that they replace their corresponding right
Parentheses.
3. Delete all parentheses.

Function to convert from infix to postfix


The expression a*(b +c)*d which results abc +*d* in postfix
Function to convert from infix to postfix

Data Structure Module 1

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Data Structure Module 1

Uploaded by

Copyright:

Available Formats

DATA

CLO 1. To explain fundamentals of data structures and their applications.

CLO 2. To illustrate representation of Different data structures such as Stack, Queues,

CLO 4. To discuss applications of Nonlinear Data Structures in problem solving.

10/04/2024 Nagarathna C, SCE, Bangalore 2

CO 1. Explain different data structures and their applications.

CO 3. Use the concept of linked list in problem solving.

CO 4. Develop solutions using trees and graphs to model the real-world

CO 5. Explain the advanced Data Structures concepts such as Hashing

10/04/2024 Nagarathna C, SCE, Bangalore 3

INTRODUCTION TO DATA STRUCTURES: Data Structures, Classifications (Primitive

10/04/2024 Nagarathna C, SCE, Bangalore 4

Data: Collection of raw facts.

Data structure is representation of the logical relationship

Data structure is a specialized format for organizing and

10/04/2024 Nagarathna C, SCE, Bangalore 5

The choice of a particular data model depends on the two

1. It must be rich enough in structure to mirror the actual

2. The structure should be simple enough that one can

10/04/2024 Nagarathna C, SCE, Bangalore 6

Program=algorithm + Data Structure

• Algorithm is a step by step procedure to solve a particular function.

10/04/2024 Nagarathna C, SCE, Bangalore 7

Elementary Data Organization

Data: Data are simply values or sets of values.

Data items: Data items refers to a single unit of values

Field: is a single elementary unit of information representing an attribute of an entity.

Record: is the collection of field values of a given entity.

File: is the collection of records of the entities in a given entity set.

10/04/2024 Nagarathna C, SCE, Bangalore 8

Data structure are normally divided into two broad categories:

• Primitive Data Structure

• Non-Primitive Data Structure

10/04/2024 Nagarathna C, SCE, Bangalore 9

10/04/2024 Nagarathna C, SCE, Bangalore 10

10/04/2024 Nagarathna C, SCE, Bangalore 11

• There are basic structures and directly operated upon

• In general, there are different representation on

• Integer, Floating-point number, Character constants,

10/04/2024 Nagarathna C, SCE, Bangalore 12

• There are more sophisticated data structures.

10/04/2024 Nagarathna C, SCE, Bangalore 13

10/04/2024 Nagarathna C, SCE, Bangalore 14

• A data structure is said to be non-linear if the data are not arranged in

• The insertion and deletion of data is not possible in linear fashion.

• This structure is mainly used to represent data containing a hierarchical

• Trees and graphs are the examples of non-linear datastructure.

10/04/2024 Nagarathna C, SCE, Bangalore 15

• A primitive data structure is generally a basic structure

• A non-primitive data structure is built out of primitive

10/04/2024 Nagarathna C, SCE, Bangalore 16

The most commonly used operation on data structure are

10/04/2024 Nagarathna C, SCE, Bangalore 17

Pointer: A pointer is a special variable which contains address of a

10/04/2024 Nagarathna C, SCE, Bangalore 18

General form of pointer declaration is –

Pointers to machine defined as well as user-defined types can be made Pointer

or variable_type *pointer_name = NULL;

char *pointer_name = "string value here";

10/04/2024 Nagarathna C, SCE, Bangalore 19

This is process of allocating memory-space during execution-time (or run-

• This is used if there is an unpredictable storage requirement.

• Memory-allocation is done on a heap.

• Memory management functions include:

MAX_TERMS 100 /size of terms array/
