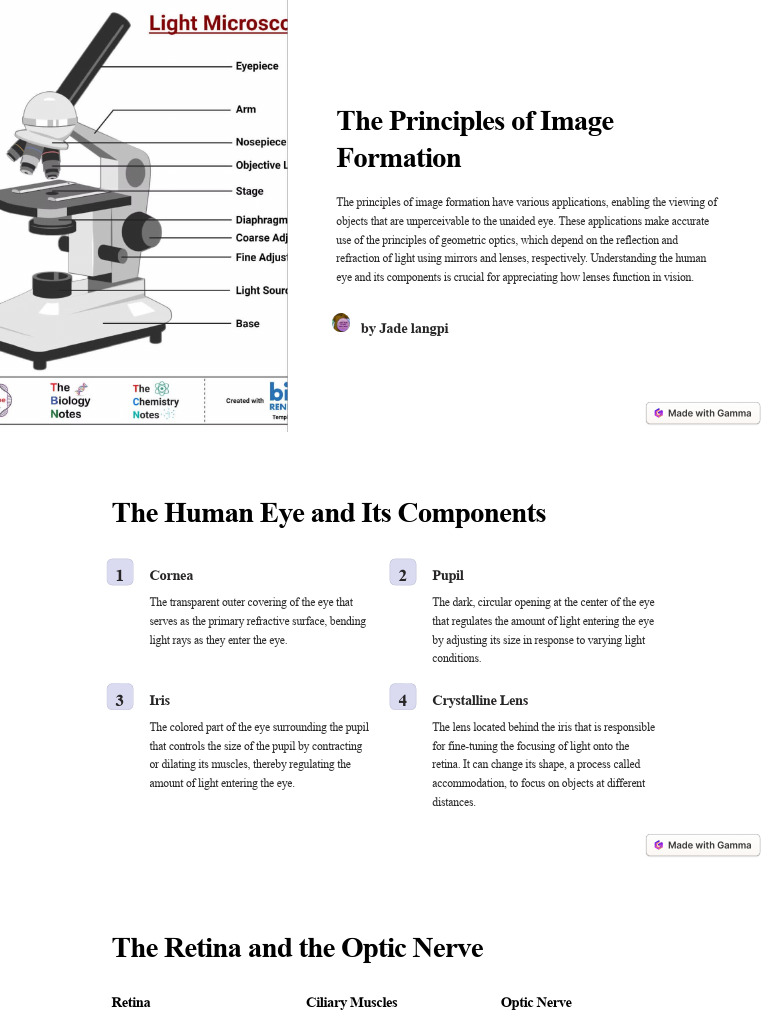

The Principles of Image

Formation
The principles of image formation have various applications, enabling the viewing of
objects that are unperceivable to the unaided eye. These applications make accurate
use of the principles of geometric optics, which depend on the reflection and
refraction of light using mirrors and lenses, respectively. Understanding the human
eye and its components is crucial for appreciating how lenses function in vision.

by Jade langpi
The Human Eye and Its Components
1 Cornea
The transparent outer covering of the eye that
serves as the primary refractive surface, bending
light rays as they enter the eye.
3 Iris
The colored part of the eye surrounding the pupil
that controls the size of the pupil by contracting
or dilating its muscles, thereby regulating the
amount of light entering the eye.
2 Pupil
The dark, circular opening at the center of the eye
that regulates the amount of light entering the eye
by adjusting its size in response to varying light
conditions.
4 Crystalline Lens
The lens located behind the iris that is responsible
for fine-tuning the focusing of light onto the
retina. It can change its shape, a process called
accommodation, to focus on objects at different
distances.
The Retina and the Optic Nerve
Retina
The innermost layer of the eye,
analogous to the film in a camera.
It contains light-sensitive cells
called photoreceptors (rods and
cones) that convert incoming light
into electrical signals, which are
then transmitted to the brain via
the optic nerve.
Ciliary Muscles Optic Nerve
These muscles are responsible for A bundle of nerve fibers that
controlling the shape of the carries visual information from the
crystalline lens during the process retina to the brain, where it is
of accommodation. When the eye processed and interpreted as
needs to focus on nearby objects, images.
the ciliary muscles contract,
causing the lens to thicken.
Conversely, when focusing on
distant objects, the muscles relax,
allowing the lens to flatten.
Correcting Vision Defects
1 Myopia (Nearsightedness)
Myopic individuals can see nearby objects clearly but struggle with distant vision because the images
are focused in front of the retina. Corrective lenses for myopia are concave (diverging) lenses, which
diverge incoming light before it enters the eye, thus shifting the focal point back onto the retina.

2 Hyperopia (Farsightedness)
Hyperopic individuals can see distant objects more clearly than near objects because the images are
focused behind the retina. Corrective lenses for hyperopia are convex (converging) lenses, which
converge incoming light before it enters the eye, bringing the focal point forward onto the retina.

3 Lens Power Calculation

The lens power for correcting vision defects is calculated using the formula: Lens Power = 1/f, where f
is the focal length of the corrective lens in meters. The lens power is expressed in diopters (m^-1).
Correcting Myopia
Joey's Case Lens Power Calculation
Joey is a nearsighted individual who struggles with The lens power for correcting myopia is calculated
seeing distant objects clearly. To calculate the lens using the formula: Lens Power = 1/f, where f is the
power needed to correct his vision, we use the focal length of the corrective lens in meters. The lens
formula: 1/f = 1/p + 1/q, where p is the object power is expressed in diopters (m^-1).
distance (very large, practically zero) and q is the
image distance (80 cm). The resulting lens power is
approximately -1.25 diopters.
Correcting Hyperopia
Rita's Case
Rita is a farsighted individual who struggles with
nearby vision. To determine the lens power required
for her to read texts at a comfortable distance of 25
cm, we use the formula: 1/f = 1/p + 1/q, where p is
the object distance (25 cm) and q is the image
distance (-75 cm). The resulting lens power is
approximately 2.67 diopters.
Lens Power Calculation
The lens power for correcting hyperopia is also
calculated using the formula: Lens Power = 1/f,
where f is the focal length of the corrective lens in
meters. The lens power is expressed in diopters (m^-
1).
The Compound Microscope

Objective Lens Eyepiece Lens Final Image

The first lens in a compound The second lens in a compound The resulting image seen through
microscope, responsible for the microscope, which further the eyepiece is virtual, erect, and
initial magnification of the magnifies the image formed by magnified.
specimen. the objective lens.
Magnification in Microscopes
Objective Lens
The focal length of the objective
lens is a key factor in determining
the overall magnification of the
microscope.
Eyepiece Lens
The eyepiece lens also contributes
to the overall magnification, as it
magnifies the image formed by the
objective lens.
Magnification
The magnification of a microscope
is given by the equation:
Magnification = (distance from the
objective lens to the image it forms)
/ (focal length of the objective lens).
Applications of Image Formation
Viewing Small Objects Microscopes allow us to observe and study small
objects that are not visible to the naked eye, such as
cells, microorganisms, and the intricate structures of
materials.

Astronomical Observations Telescopes, which use the principles of image

formation, enable us to observe distant celestial
objects, such as stars, planets, and galaxies, that are
too far away to be seen with the unaided eye.

Medical Imaging Imaging techniques like X-rays, CT scans, and MRI

scans rely on the principles of image formation to
create detailed images of the human body, allowing
for the diagnosis and treatment of various medical
conditions.
The Versatility of Image Formation
Microscopy
Microscopes use the principles of
image formation to magnify small
objects, enabling the study of cells,
microorganisms, and the intricate
structures of materials.
Astronomy
Telescopes, which also rely on the
principles of image formation, allow
us to observe distant celestial
objects, expanding our
understanding of the universe.
Medical Imaging
Imaging techniques like X-rays, CT
scans, and MRI scans utilize the
principles of image formation to
create detailed images of the human
body, aiding in the diagnosis and
treatment of various medical
conditions.
