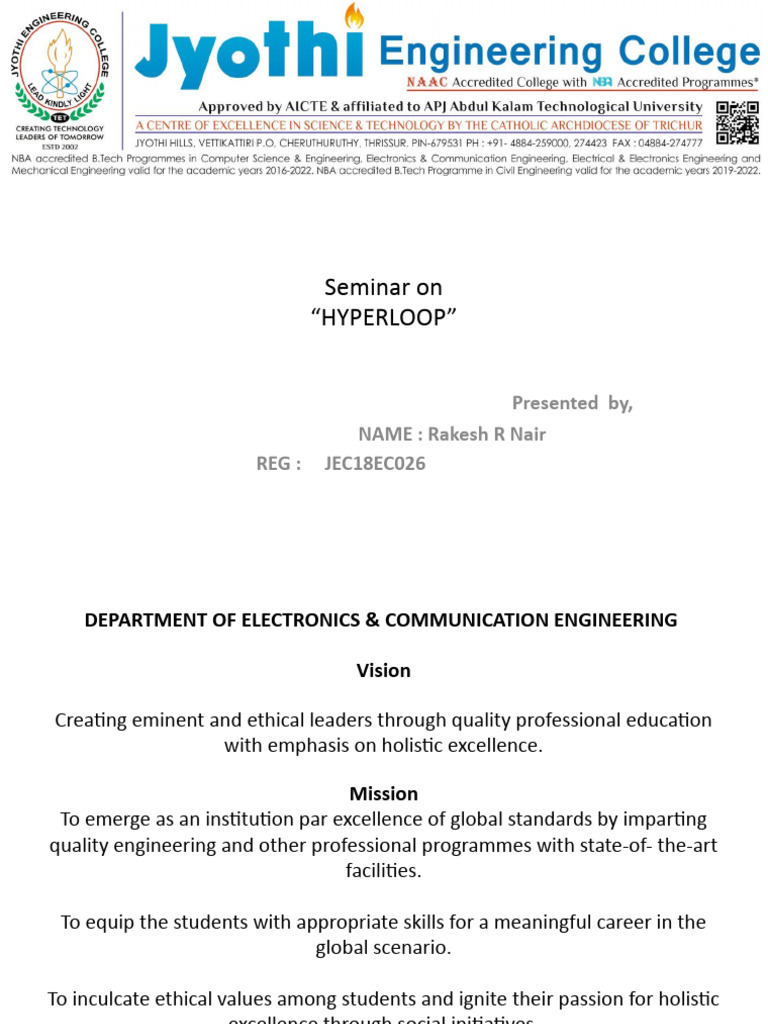

Seminar on

“HYPERLOOP”

Presented by,
NAME : Rakesh R Nair
REG : JEC18EC026
 DEPARTMENT OF ELECTRONICS & COMMUNICATION ENGINEERING

Vision

Creating eminent and ethical leaders through quality professional education

with emphasis on holistic excellence.

Mission
To emerge as an institution par excellence of global standards by imparting
quality engineering and other professional programmes with state-of- the-art
facilities.

To equip the students with appropriate skills for a meaningful career in the
global scenario.

To inculcate ethical values among students and ignite their passion for holistic
excellence through social initiatives.

To participate in the development of society through technology incubation,

entrepreneurship and industry interaction.
 DEPARTMENT OF ELECTRONICS & COMMUNICATION ENGINEERING

Vision

Create eminent and ethical leaders in the field of Electronics and

Communication through quality professional education to excel in
academia and industry.

Mission

Provide theoretical and practical knowledge through quality education and

life skills training to make competent graduates with leadership and social
commitment.

To impart entrepreneurial orientation and motivation for research among

the students through knowledge transfer between industrial, academic &
research institutions.
DEPARTMENT OF ELECTRONICS & COMMUNICATION ENGINEERING

PROGRAMME EDUCATIONAL OBJECTIVES

Graduates shall have fundamental and advanced knowledge in

electronics and communication engineering along with knowledge in
mathematics, science and computing and get employed in national or
international organizations or government agencies.

Graduates shall have ability in analyzing, designing and creating

innovative solutions which lead to a lifelong learning process or higher
qualification, making them experts in their profession thus helping to
solve electronics & communication engineering and social problems.

Graduates shall have good organizing capability, presentation skills,

communicating ability, leadership, team work and ethical practices.
 DEPARTMENT OF ELECTRONICS & COMMUNICATION ENGINEERING

PROGRAMME SPECIFIC OUTCOMES(PSO)

Professional skills: Associate the concepts related to Electronics,

Communication, Embedded Systems, Signal Processing and VLSI to solve real
life problems.

Problem solving ability: Comprehend technology advancement to analyze and

design systems using modern design tools for the benefit of the society

Lifelong learning and ethical Values: Students should be able to develop

communication skills, work as a team, develop leadership qualities, become
professionals or entrepreneurs with ethical values
 Index

• Objective
• Introduction
• Literature review
• Content
• Conclusion
• Advantages
• Applications
• References
 OBJECTIVE
The innovative concept of the vacuum railway - High-Speed
Transportation System has for many years aroused great interest of
people dealing with the issues of modern and effective transport systems.

Transport scientists and engineers see this technology as a great

opportunity for modern societies, at the same time struggling with many
difficult and still unsolved problems.
.
 INTRODUCTION
"Hyperloop is an innovative concept of a new (fifth) mode of transport, also
known as a vacuum railway" ,which consists in moving the vehicle in the
form of a hermetically sealed capsule with the transported passengers or
cargo in low pressure tube .This innovative method of transport was
proposed by Elon Musk 2013
Operating principle of hyperloop
 LITERATURE REVIEW
Demand for passenger capsules for Hyperloop High-Speed Transportation System -
case study from Poland

Published in: IEEE Transactions on Transportation Electrification ( Early Access )

Page(s): 1 - 28
Date of Publication: 15 October 2021
ISSN Information:
Electronic ISSN: 2332-7782
CD: 2372-2088
DOI: 10.1109/TTE.2021.3120536
Publisher: IEEE
Hyperloop Transportation System

Published in:International Research Journal of Engineering and Technology (IRJET)

e-ISSN: 2395 -0056
p-ISSN: 2395-0072
Volume: 04 Issue: 04 |
Date of publication: Apr -2017
 THEORY
• The vactrain concept resembles a high-speed rail system without
substantial air resistance by employing magnetically levitating trains in
evacuated (airless) or partly evacuated tubes.

• However, the difficulty of maintaining a vacuum over large distances has

prevented this type of system from ever being built.

• The Hyperloop is similar to a vactrain system but operates at

approximately one millibar (100 Pa) of pressure.
 WORKING
• Working of hyperloop system is based on magnetic levitation principle.
As we know that the passenger pad travel through low pressure tube
which is pylon-supported tube.

• In hyperloop system an air compressor fan is fitted on front side of pod

which sucks the air. It transfer high pressure air front side to the rear
side of capsule (pod) and it propel the pod. It creates the air cushion
around the pod, so that the pod is suspended in air within the tube.

• On the basis of magnetic levitation principle the pod will be propelled

by the linear induction motor.
• By the linear induction motor the capsule send from one place to another
place to a subsonic velocity that is slower than the speed of sound. The
pod will be self-powered.

• There is solar panel fitted on top of the tube. By this solar panel there is
enough energy is stored in battery packs to operate at night and in cloudy
weather for some periods.

• The energy is also is stored in the form of compressed air. The air
between the capsule acts as a cushions to prevent two capsules from
colliding within the tube.
COMPONENTS OF HYPERLOOP TRANSPORTATION

SYSTEM

• CAPSULE

• TUBE

• PROPULSION

• ROUTE
CAPSULE

The capsule send at a very high speed and it is levitated by a high pressure air
cushion. The design of capsule is start with the aerodynamic shape. There are
two version of capsule are being considered: a passenger only version and a
passenger plus vehicle version
P Tube
The tube is made of steel. There are two tubes which are welded together side
by side configuration to allow the capsules travel in both directions. The tube
will be supported by pillars. There is a solar arrays are provided on a top of
the tubes for the purpose of power to the system
PROPULSION

To accelerate and decelerate the capsule the linear induction motor is used in
hyperloop system. It provides some advantages over a permanent magnet motor.
To accelerate the capsules there is linear accelerators are constructed on a length
of the tube. Stators are placed on the capsules to transfer momentum to the
capsules via the linear accelerators
ROUTE

• USA:
The route suggested in the 2013 alpha-level design document was from the
Greater Los Angeles Area to the San Francisco Bay Area.
• Europe:
IN 2016 Amsterdam or Schiphol to Frankfurt.
In Poland fromWarsaw to Cracow
• India:
➔ In 2016 route between Chennai and Bengaluru, with a conceptual travel
time for 345 km (214 mi) of 30 minutes.
➔ In 2018 between Mumbai and Pune that would cut the travel time from
the current 180 minutes to 20 minutes.
THANK YOU
