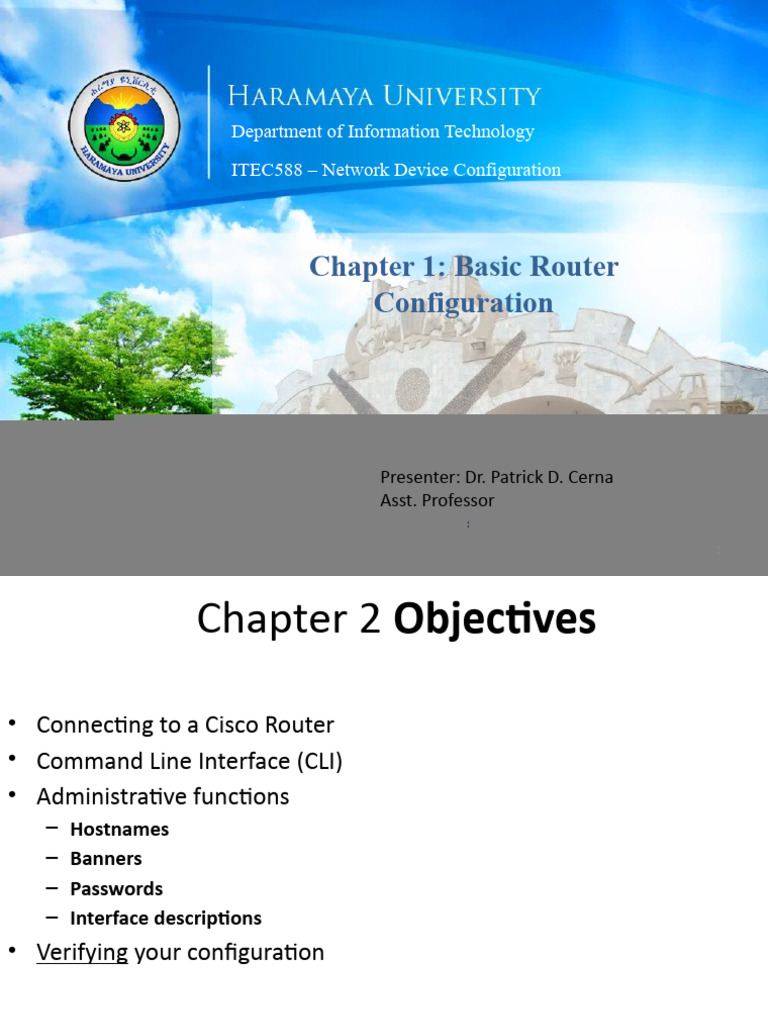

Department of Information Technology

ITEC588 – Network Device Configuration

Chapter 1: Basic Router


Configuration

Presenter: Dr. Patrick D. Cerna


Asst. Professor
:
1
Chapter 2 Objectives

• Connecting to a Cisco Router


• Command Line Interface (CLI)
• Administrative functions
– Hostnames
– Banners
– Passwords
– Interface descriptions
• Verifying your configuration

2
2
Router Access (Connecting to a Cisco Router - 173)
• Console port (console)
– Rollover cable (each end is a mirror-image o/t other)
• RJ-45 to DB-9
• RJ-45 to DB-25
• Auxiliary port (AUX)
– Can function like a console port
– Or, can accept modem commands, i.e., from sources
outside the network (i.e., “out of band”)
• Virtual terminal (VTY)
– This is for telnet access
– This kind of access is from within the network (i.e., “in
band”. 3
Connecting To A Cisco Router

Cisco 2811

Cisco 1841 4
Setup Mode

• Basic Management Setup


• Extended Setup
• Command-Line Interface

5
Command-Line Interface (CLI)
• More flexible than setup mode.
• To use the CLI, just say “No” to entering the initial
configuration dialog.
• Initial prompt consists of two parts
– Hostname
– Greater than symbol (>)

6
p. 179
Overview of Router Modes
• Global changes:
– config terminal or config t
– Changes made to running-config (DRAM)
– To change the startup-config (NVRAM)
• config memory or config mem
• Note: Any configuration changes need to be placed
into RAM.
• Typing “config mem” or “config net” (from a TFTP
host) will append the current running-config

7
p. 1
Configuration Modes
• Global configuration mode
– Router(config)#
• Interface mode
– Router(config–if)#
• Line configuration mode
– Router(config-line)#
• Router configuration mode
– Router(config-router)#

8
Configuration Modes

9
Configuration

• CLI Prompts
• Interfaces
• Sub-interfaces
• Line Commands
• Routing Protocol
Configurations

10
Administrative Functions

The administrative functions that you can configure


on a router and switch are
• Hostnames
• Banners
• Passwords
• Interface descriptions

11
Hostnames & Descriptions
• Hostnames
Router(config)#hostname haramaya
todd(config)#

• Descriptions
Atlanta(config)#int e0
Atlanta(config-if)#description cci_lan

12
Banners
• Purpose: welcome message
• Types
– exec: set EXEC process creation banner
– incoming: set incoming terminal line banner
– login: login banner
– motd: set “Message of the Day” banner
• Delimiting character

13
Banners

14
Setting the Passwords
• 5 passwords:
– 1st two used to set your enable password
• Used to secure privileged mode;
• Router>enable
• Or Router>en (because no other commands at privileged
level . begin with “en”

– Other three are used to configure a password in user mode via:


• console port
• auxiliary port
• Telnet

15
Passwords
• Enable passwords
– Router(config)#enable password cisco
– Router(config)#enable secret cisco
Note: the secret password supersedes the enable password,
i.e., if you set both passwords, you will be asked for the secret
password.
• Auxiliary Password
• Console Password
• Telnet Password
• Encrypting Your Password
Router(config)#service password-encryption
16
Passwords

17
Passwords

18
Passwords

19
Passwords

20
Passwords

21
Interface Descriptions
Setting descriptions on an interface is helpful to the administrator and, like the
hostname, only locally significant. The description command is a helpful one
because you can, for instance, use it to keep track of circuit numbers.

Here’s an example:
Atlanta(config)#int e0
Atlanta(config-if)#description Sales Lan
Atlanta(config-if)#int s0
Atlanta(config-if)#desc Wan to Miami circuit:6fdda4321

You can view the description of an interface either with the show
running-config command or the show interface command.

22
Router Interfaces
• Bringing up an Interface
no shutdown
shutdown
show interface

• Configuring an IP Address on an Interface


Router(config)#int e0
Router(config-if)#ip address 172.16.10.2 255.255.255.0
Router(config-if)#no shut

• Serial Interface Commands


clock rate & bandwidth (entered in kilobits)

23
Viewing, & Saving Configurations
• Viewing & Saving Configurations
– running-config saved in DRAM
– startup-config saved in NVRAM
copy run start
sh run
sh start
erase startup-config

24
References:
• Glen E. Clarke, CompTIA Network+, 4th ed.,
2009 Mc Graw Hill
• CCNA Exploration, 2006, Cisco Press
• Todd Lammle, CCNA Study Guide, 7th Ed.,
2009, Sybex

25
25
