Disciplined Software Engineering: Lecture #1

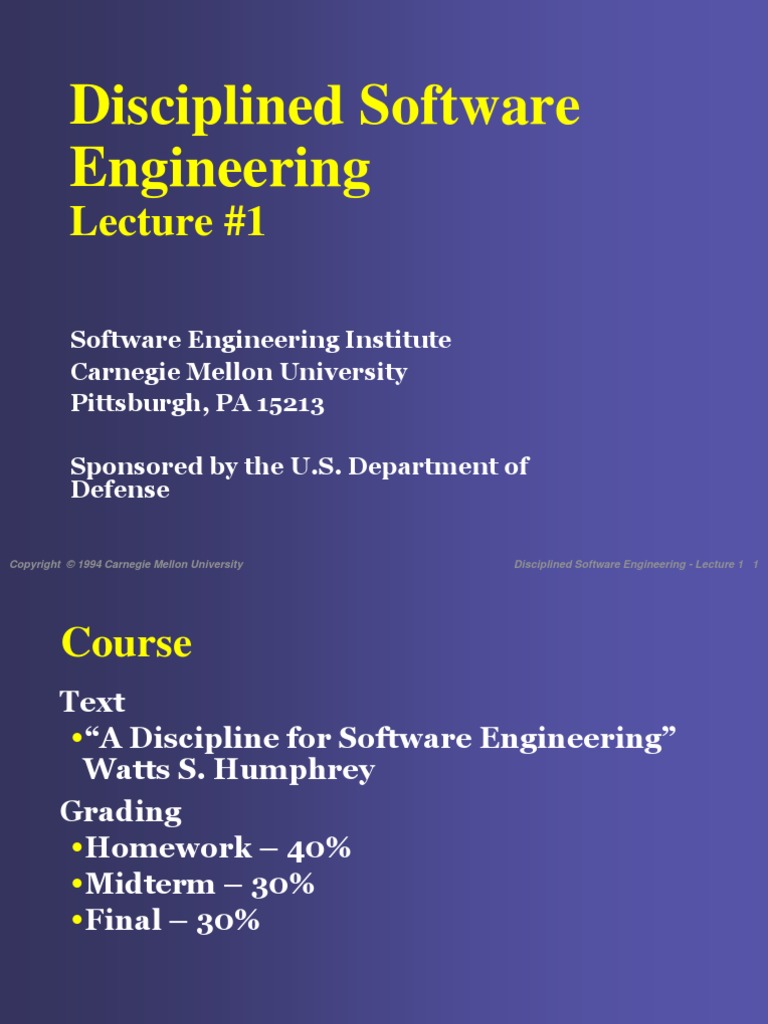

Disciplined Software Engineering
Lecture #1
Software Engineering Institute Carnegie Mellon University Pittsburgh, PA 15213 Sponsored by the U.S. Department of Defense
Copyright 1994 Carnegie Mellon University Disciplined Software Engineering - Lecture 1 1
Course
Text A Discipline for Software Engineering Watts S. Humphrey Grading Homework 40% Midterm 30% Final 30%
Copyright 1994 Carnegie Mellon University
Disciplined Software Engineering - Lecture 1 2
General
The book will be followed very closely. Class time 50 minute lecture 10 break Office Hours 1 hour before/after class by appointment Email or phone calls are fine GTA Chaoyang Liu
Contact Information
Dr. Tom Potok Potokte@ornl.gov www.csm.ornl.gov/~v8q 574-0834
Computational Engineer Position

Modeling and Simulation Group
The Computational Sciences and Engineering Division in the Computing and Computational Sciences Directorate at the Oak Ridge National Laboratory (ORNL) seeks to hire a Computational Engineer with a strong interest and proficiency in computational solutions to engineering problems in the area of structural mechanics. The successful candidate will be expected to ensure that state-of-the-art finite element techniques are employed in applications to structural analysis problems and to participate in developing additional sources of funding that support research and development work within the Group. http://computing.ornl.gov/ http://ornl7.ornl.gov/employment/detail.cfm?id=143 Qualified candidates are invited to send a current resume and a list of three or more references to: D.M. Hetrick, Computational Sciences and Engineering Division, Oak Ridge National Laboratory, PO Box 2008, Oak Ridge, TN 37831-6415 or E-mail hetrickdm@ornl.gov
ORNL, a multiprogram research facility managed by UT-Battelle, LLC, for the U.S. Department of Energy, is an equal opportunity employer committed to building and maintaining a diverse work force.
Schedule
Class Number Date Subject 1 8/26/2001 Introduction 9/2/2001 Labor Day 2 9/9/2001 Planning Overview 3 9/16/2001 Size Estimates 4 9/23/2001 Size Estimates 5 9/30/2001 Schedule Planning 6 10/7/2001 Process Measurement 7 10/14/2001 Design and Code Reviews 8 10/21/2001 Midterm 9 10/28/2001 Software Quality 10 11/4/2001 Design Notation 11 11/11/2001 Design Overview 12 11/18/2001 Scalability and Complexity 13 11/25/2001 Design Verification 14 12/2/2001 Final Review 12/9/2001 Final Lecture 1 No lecture 2 3 4 5 6 7 No lecture 8 9 10 11 12 Review Chapter 1&2 3&4 5 6 7 8 9 Appendix B 10 11 12 Exercise 1A 2A 3A 4A 5A 6A R4 7A 8A 9A 10A R5
Software Engineering
What is it? What is a process?
Course Objectives
To introduce you to a process-based approach to developing software To show you how to measure and analyze your personal software process (PSP) To show you how to use process data to improve your personal performance To show you how to apply these methods to your other tasks
General Information
Prerequisites You must know a programming language. Helpful background familiarity with basic statistics ability to read simple formal notations
Facilities an available development environment spreadsheet capability

Course Overview
Introduction - 1 lecture Planning the process - 4 lectures Defect management - 3 lectures The design process - 2 lectures Scaling up the process - 1 lecture Design verification - 2 lectures Process development - 1 lecture Using the PSP - 1 lecture
Lecture #1 Overview
PSP principles costs and benefits personal software process (PSP) overview
The capability maturity model (CMM) process maturity the CMM and the PSP
The initial PSP0 process
PSP Principles - 1
The quality of a software system is governed by the quality of its worst components. The quality of a software component is governed by the individual who developed it. This is governed by your knowledge discipline commitment
What is this?
The last picture taken from the Mars Lander

A software flaw probably caused the Mars Polar Lander to shut off its descent engines prematurely, sending it on a fatal plunge into the red planet, according to a report released Tuesday "There was inadequate software design and testing. The software should have been designed to prevent premature engine shutdown," he said. "In space, one strike and you're out." The loss to taxpayers was approximately $165M.
Process Examples
Top quarterbacks knows what was his pass completion record for last year. Top sales people know how much money they brought in. Racing teams know how minor changes to their cars will affect performance What do you know about your software development skills?
PSP Principles - 2
As software professionals you should know your own performance. You should measure, track, and analyze your work. You should learn from your performance variations. You should Incorporate these lessons in your personal practices.
With a Stable PSP

You can estimate and plan your work meet your commitments resist unreasonable commitment pressures You will also understand your ability be better able to improve
A PSP Also Provides

A proven basis for developing and practicing industrial-strength personal disciplines A discipline that shows you how to improve your personal process The data to continually improve the productivity, quality, and predictability of your work
What is a PSP?
A personal process for developing software defined steps forms standards A measurement and analyses framework to help you characterize your process A defined procedure to help you to improve your performance
The CMM and the PSP - 1

The capability maturity model (CMM) was developed by the SEI with the help of leading software groups. The CMM characterizes the most effective large-scale software practices. The PSP: applies the CMM is for individual work
SEI Capability Maturity Matrix

Broadly agree to define how a software organization matures and improves Based on manufacturing process improvement and best practices from software engineering Some dramatic successes...
Capability Maturity Matrix

Developed by the Software Engineering Institute (SEI) by Watts Humphry and Mark Paulk. Five levels of maturity for an organization Level 1 - Initial; Level 2 - Repeatable; Level 3 - Defined; Level 4 - Managed; Level 5 - Optimizing.
Initial
Poorly defined procedures and controls No management mechanism to to ensure they are followed Heroic efforts by one or two people saves the day. Projects are late, crisis to crisis
Repeatable
Basic project controls Quality problems No framework for orderly improvement Fault data is being collected
Defined
Commitment to software process evaluation and improvement Appropriate software engineering standards and methods are in place Strong qualitative understanding of the process
Managed
Process is quantified Quality and productivity measured for each key task Wide dissemination of process related information Errors can be predicted with acceptable accuracy
Optimizing
Process improvement feed-back and feedforward controls Rigorous defect causal analysis and defect prevention Proactive management
More on CMM
There are 18 key process areas defined by CMM, including Requirements Management, Software Configuration Management Process Change Management Defect Prevention Each key process area has five common features: 1) goals to be achieved; 2) ability to perform; 3) activities performed; 4) measurement and analysis; 5) verification

5
Level 5: Process change management* Technology innovation* Defect prevention*
4 3
Level 4 Quality management* Process measurement and analysis*
Level 3 Peer reviews* Intergroup coordination Software product engineering* Integrated software management* Training program Organization process definition* Organization process focus*
Level 2 Software configuration management Software quality assurance Software subcontract management Software project tracking and oversight* Software project planning* Requirements management
Level 1
*PSP key process areas


The CMM provides the framework for effective process management. It assumes that the software professionals will follow disciplined personal methods. The PSP provides the framework for disciplined individual work. It assumes effective process management.

Management S Q A / S C M
SEPG - software engineering process group SQA - software quality assurance SCM - software configuration management
S E P G
The Software Engineering Work
the Engineers
PSP Overview - 1
The PSP is introduced in 7 upward compatible steps You write 1 or 2 small programs at each step You gather and analyze data on your work
You use these and analyses to improve your work
PSP Overview - 2
PSP3
Cyclic development
PSP2
Code reviews Design reviews
PSP2.1
Design templates
PSP1
Size estimating Test report
PSP1.1
Task planning Schedule planning
PSP0
Current process Time recording Defect recording Defect type standard
PSP0.1
Coding standard Size measurement Process improvement proposal (PIP)
PSP Overview - 3
PSP0 - you establish a measured performance baseline PSP1 - you make size, resource, and schedule plans PSP2 - you practice defect and yield management PSP3 - you scale up PSP methods to larger projects
At Course Conclusion
You will have practiced the key elements of a level 5 industrial process. You will understand which methods are most effective for you. You will do better work. You will have long-term improvement goals.
Other Course Results

The following charts show how others have improved during the PSP course. These data are for 12 students who took the PSP course at Carnegie Mellon University in the spring of 1994. The data are on: compile time test defects productivity
Compile T ime Range

30
% of Total Time
25 20 15 10 5 0 1 2 3
14 hours to 3 hours
Ma x Avg Min
10
Program Number
Defects Found in T est - Range

180 160
39 Errors to 1 on average
Defects/KLOC
140 120 100 80 60 40 20 0 1 2 3 4 5 6 7 8 9 10 Ma x Avg Min
P ro g ra m N u m b e r
Productivity Range
100 90 80 70 60 50 40 30 20 10 0 1 2 3 4 5 6 7 8 9 10
Big drop in defects Big potential increase In productivity
LOC/Hour
Ma x Avg Min
Program Number
The PSP0 Process

A simple defined personal process Use your current design and development methods. Gather data on your work: time spent by phase defects found in compile and test Prepare a summary report.
The PSP0 Process Elements

A process script A project plan summary form
A time recording log

A defect reporting log A defect type standard
The PSP0 Script - 1

Reference - Table C10, page 652 Planning - estimate development time
Development - develop the product using your current methods Postmortem - complete the project plan summary, with the time spent and defects found and injected in each phase.
The PSP0 Script - 2

Design - design the program, using your current design methods Coding - Implement the program
Compile - compile until defect free Test - test the program and fix all defects
Record defects in the defect log and time per phase in the time log.
PSP0 Plan Summary - 1

Reference - Table C14, page 655 Header - name, date, program, instructor, language Enter your best estimate of the total time the development will take. Enter the actual time in minutes you spent in each phase.
Table C14 PSP0 Project Plan Summary

Student Program Instructor
Time in Phase (min.) Planning Design Code Compile Test Postmortem Total Defects Injected Planning Design Code Compile Test Total Development Defects Removed Planning Design Code Compile Test Total Development After Development Plan Actual
Date Program # Language

To Date To Date %
Actual
To Date
To Date %
Actual
To Date
To Date %

Time - To Date - Enter the total time spent in each phase to date. For program 1A, this is the time spent on program 1A. Time - To Date % - Enter the percent of the total To Date time that was spent in each phase.
Defects injected and removed - Enter the actual numbers of defects injected and removed in each phase.

Defects - To Date - Enter the total defects injected and removed in each phase to date. For program 1A, this is the defects injected and removed with program 1A.
Defects - To Date % - Enter the percent of the total To Date defects injected and removed in each phase.
PSP0 Time Recording Log - 1

Reference - Table C16, page 657 Header - name, date, instructor, and program number Date - Enter the current date.
Start - Enter the time in minutes when you start a project phase.
Table C16 Time Recording Log

Student Instructor
Date Start Stop Interruption Time Delta Time Phase
Date Program #
Comments

Stop - Enter the time in minutes when you stop work on a project phase, even if you are not done with that phase. Interruption time - Enter any time you lost due to interruptions in the start to stop period.
Delta time - Enter the elapsed start to stop time less the interruption time.

Phase note the phase on which you were working use the phase name
Comments - describe the interruption the task you were doing anything else that significantly affects your work
Defect Recording Log - 1

Reference - Table C18, page 659 Header - enter the name, date, instructor, and program number Date - Enter the date when you found and fixed the defect. Number - Enter a unique number for this defect. Start each project with 1.
Defect Types 10 Documentation 20 Syntax 30 Build, Package 40 Assignment 50 Interface
60 70 80 90 100
Checking Data Function System Environment
Table C18 Defect Recording Log

Student Instructor
Date Description: Number Type Inject Remove
Date Program #
Fix Time Fix Defect
Date Description:
Number
Type
Inject
Remove
Fix Time
Fix Defect
Date Description:
Number
Type
Inject
Remove
Fix Time
Fix Defect
Date Description:
Number
Type
Inject
Remove
Fix Time
Fix Defect
Date Description:
Number
Type
Inject
Remove
Fix Time
Fix Defect
Date Description:
Number
Type
Inject
Remove
Fix Time
Fix Defect

Type - Enter the defect type from the defect type standard. Inject - Enter the phase during which you judge the defect was injected. Remove - Enter the phase in which you found and fixed the defect.

Fix time - Enter the time you took to fix the defect. You may time it exactly or use your best judgment. Fix defect - If this defect was injected while fixing another defect, enter the number of that defect or an X if you do not know.
Note - A defect is anything in the program that must be changed for it to be properly developed, enhanced, or used.
Defect Type Standard - 1

Reference - Table 20, page 661 The defect type standard provides a general set of defect categories. While you may replace this standard with your own, it is generally wise to stick with simple type definitions until you have data to guide your changes.
Defect Type Standard - 2

The PSP defect types are: 10 - Documentation 20 - Syntax 30 - Build, package 40 - Assignment 50 - Interface 60 - Checking 70 - Data 80 - Function 90 - System 100 - Environment
Assignment #1
Read preface and chapters 1 and 2 of the text. Use PSP0 to write program 1A. See Appendix D for the program specifications. See Appendix C for the PSP0 definitions and examples. Follow the specifications in Appendix C on the materials to submit and their order and content.
Program 1A
Calculates the standard deviation of a list of numbers. The n numbers are held in a linked list. The standard deviation is calculated as follows:
Std
x
n i1
xavg
n1
i is an index to the numbers, and Xavg is the average value of the numbers.
Suggestions
Keep personal copies of what you turn in Submit your programs on diskettes or to Chaoyang by e-mail. Chaoyang@cs.utk.edu Software must be a windows executable! Please keep accurate track of time.
YOU WILL NOT BE GRADED ON YOUR TIME OR QUALITY!!

Some Suggestions - 1
Keep your programs simple. You will learn as much from small programs as from large ones. Keep your reports and standards simple and short. Do not hesitate to copy or build on the PSP materials. Do it right the first time. If you are not sure, find out.
Actual Time Range

20 18 16 14
Hours
12 10 8 6 4 2 0 1 2 3 4 5 6 7 8 9 10
Ma x Avg Min
Program Number
Some Suggestions - 2
Software is not a solo business so you do not have to work alone. You must, however, produce your own estimates, designs, and code. You may have others review your work and you may change it as a result. You should note this help in your process report, include the review time you and your associates spend, and log the defects found.
PSP0 Evaluation Criteria

Your process report must be: complete legible in the specified order Your process data must be: accurate precise self-consistent
1 - The PSP is a defined process to help you do better work. 2 - Once you have completed this course, you will know how to adjust and extend the PSP to meet your future needs. 3 - In using PSP0, your principal objective is to gather and report accurate and complete data on your work.
Messages to Remember from Lecture 1
