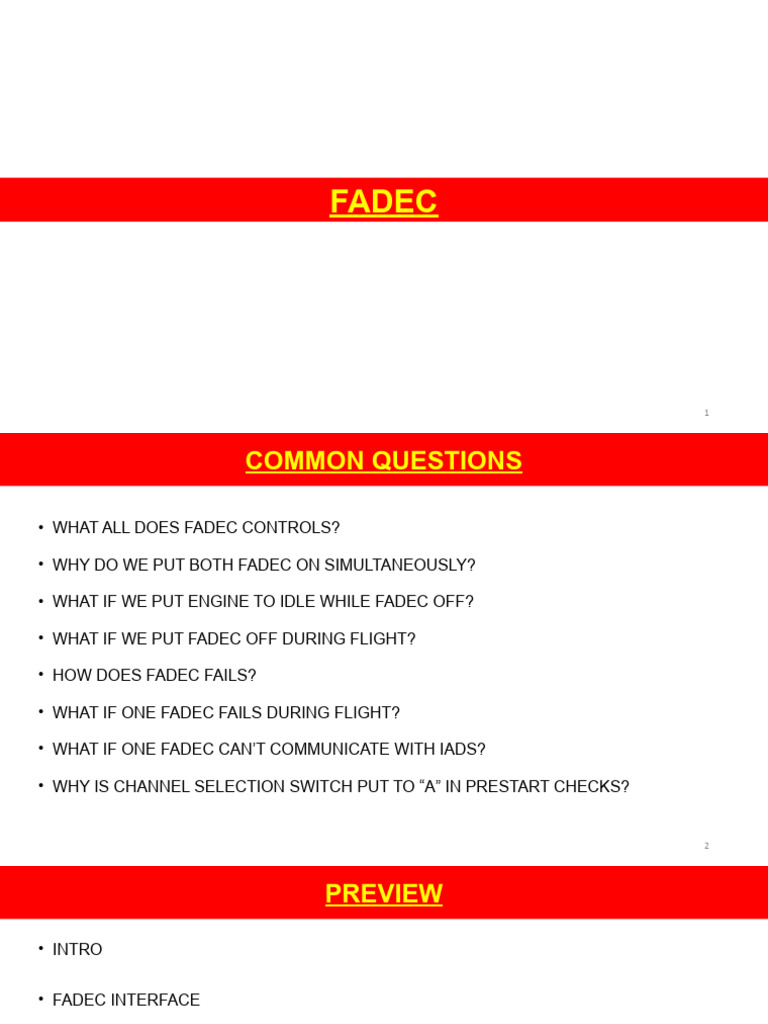

FADEC

1
 COMMON QUESTIONS

• WHAT ALL DOES FADEC CONTROLS?

• WHY DO WE PUT BOTH FADEC ON SIMULTANEOUSLY?

• WHAT IF WE PUT ENGINE TO IDLE WHILE FADEC OFF?

• WHAT IF WE PUT FADEC OFF DURING FLIGHT?

• HOW DOES FADEC FAILS?

• WHAT IF ONE FADEC FAILS DURING FLIGHT?

• WHAT IF ONE FADEC CAN’T COMMUNICATE WITH IADS?

• WHY IS CHANNEL SELECTION SWITCH PUT TO “A” IN PRESTART CHECKS?

2
 PREVIEW

• INTRO

• FADEC INTERFACE

• DUAL CHANNEL ARCHITECTURE

• MAIN FUNCTIONS

• ADDL FEATURES

• EMERGENCIES

3
 INTRO

• ENG CONTROL SYS

• FADEC : FULL AUTHORITY DIGITAL ENGINE CONTROL
• ALSO KNOWN AS DIGITAL ENGINE CONTROL UNIT (DECU)
• FUNCTION : TO ENABLE THE ENG TO CATER TO VARYING POWER REQMTS, KEEPING NR
CONSTANT

4
INTRO

Dual channel eng During start, NG > 69%

alternator

During stop, NG = 60%

Ac power supply Fully stopped

During start, NG = 69%

During stop, NG < 60%

5
FADEC INTERFACE

6
INPUTS

7
OUTPUT

8
 DUAL CHANNEL ARCHITECTURE
• DUAL CHANNEL – TWO INDEPENDENT CHANNELS
• INDEPENDENTLY CONTROLS THE ENG
• INDEPENDENT POWER SUPPLY
• CHANNEL IN CONTROL – CONTROLS THE FUEL FLOW (OTHER IN
WAIT MODE)
• REDUNDANT CHANNEL
• REDUNDANT ELECTRICAL SUPPLY

9
DUAL CHANNEL ARCHITECTURE

• COMPRESSOR DELIVERY PR (P3)

• TORQUE (Q)
• FUEL PR
• OIL PR
• OIL TEMP
• AMBIENT PR (P0)
• AIR INLET TEMP (T1)
• TURBINE GAS TEMP (T4.5)
• COLL PITCH

10
DUAL CHANNEL ARCHITECTURE

11
MAIN FUNCTIONS

12
 MAIN FUNCTIONS

Auto Eng Starting

FADEC Starting Sequence Cranking
Ignition control
Fuel supply

Fuel flow demand Starting

Idle mode
Transition from Idle to Flt mode

13
 MAIN FUNCTIONS

Speed Control during Normal ops

• FADEC maintains NF as close to NR ref value

• NR ref value set by NR SET switch

• SET posn – 96 to 104% in CDU (Default – 100%)
• 102%

• FADEC controls NF – ‘Proportional Integral mode’

• Calculates NG datum - Actual NF
• Modifies NG datum - Coll Pitch feedback by anticipator
• Further modifies NG datum - Equal load sharing via cross talk
• Final NG datum compared with Actual NG

• Addl, Controls NG variation and fuel flow to prevent surge and flameout
during transients
14
 MAIN FUNCTIONS

Eng Protection
• FADEC controls fuel flow – NG, Q or TGT within limit as per selected
ratings
• Selectable Limits
Selectable limits

AEO ICR

OEI MCR

SCR

• Corresponding to each limit

• Max NG - fn of P0 and T1
• Max TGT- - to protect eng
15
• Max Q - to protect MGB
 MAIN FUNCTIONS

• AEO
 BOTH ENG OPERATIVE
 FUEL LIMITER SET TO SLIGHTLY HIGHER VALUE THAN TOP – FOR SMOOTH OP DURING MINOR
EXCURSIONS

• OEI
 DETECTS OEI CONDITIONS VIA CROSS TALKS
 FLAME OUT
 PARTIAL LOSS OF POWER
 GOVERNOR FAILURE
 IDLE OR STOP
 LIVE ENG LIMIT – SCR
 MANUAL SELECT LOWER LIMITS – ICR OR MCR TO PREVENT INADVERTENT USAGE OF SCR OR MCR
 IF NR DROPS < 92%, SCR AUTO SELECTED

16
 MAIN FUNCTIONS

OVER SPEED PROTECTION

• FOR NF & NG

• TWO SENSORS FOR EACH TURBINE

• SHUTDOWN VIA STOP ELECTRO VALVE

• OVER SPEED THRESHOLD

• NG – 117.5% + 1%

• NF – 108.5% + 1%

• CROSS INHIBITION

• OVER SPEED TEST : THROUGH CDU

17
 MAIN FUNCTION

APU mode
• ALLOWS ENG-1 TO BE RUN AS AUXILIARY POWER UNIT TO DRIVE ACCESSORIES
• ACTIVATES ELECTRIC CLUTCH - DRIVE TO ROTORS IS DEACTIVATED
• ACHIEVES THROUGH FLT DR/ ACCR DR SWITCH

18
 OEI TRAIN MODE
OEI TRAIN Mode
• IN-FLT OEI TRAINING INCLUDING LANDINGS
• TRAIN MODE SELECTION
• BOTH ENG REDUCES POWER INITIALLY TO SIMULATE
ENG FAILURE
• ACTUAL POWER INCREASES THEREAFTER
• BOTH ENG SHARES THE POWER REQMT BY GIVING
HALF THE POWER REQD
• ∆Q AND ∆N DISPLAYED TO SIMULATE OEI CONDITIONS
• Q, TGT, NG, NF INDICATED AS ACTUALS
• OEI POWER RATINGS AND BLEED AIR SHUT OFF
FUNCTIONS AVBL AS OF REAL ENG FAILURE

19
 MAIN FUNCTIONS
Indication and Monitoring
• ENG PARAMETER
Q
 TGT
 ∆NG
 NG
 NF
 EOT
 EOP
• CYCLES COUNTERS
 NG CYCLES
 NF CYCLES
 CREEP DAMAGE COUNTERS
• RUN DOWN TIME (RDT)
• FAILURE INDICATION AND CRITICAL WARNINGS

21
 ADDL FEATURE

CROSS TALK
• TWO FADEC EXCH DATA VIA CROSS LINK
• EACH CHANNEL COMMUNICATES WITH CORRESPONDING CHANNEL OF OTHER FADEC
• DATA EXCH SUCH AS
Q
 NG
 NF
 EOT
 EOP
 CRITICAL FAILURES LIKE GOV, FADEC DGRAD ETC

22
 ADDLN FEATURES
AUTO POWER CHECK
• INITIATION OF POWER CHECK THROUGH CDU
• PERFORMS POWER CHECK AND PROVIDES RESULTS THROUGH IADS
NR TRIM FUNCTION
• NR REF VALUE SET BY NR SET SWITCH
 SET POSN – 96 TO 104% IN CDU (DEFAULT – 100%)
 102%
P3 AIR BLEED SHUT OFF
• COMDS SHUT OFF OF P3 BLEED AIR VALVE DURING
 ENG STARTING
 POWER CHECK
 ENG POWER ABOVE ICR LIMIT IN OEI CONDITIONS
Data Link
• DIGITAL DATA LINK BETWEEN FADEC AND IADS FOR EXCH OF DATA

23
 ADDLN FEATURES
POWER LOSS DETECTION
• NG diff > 7%
• Q diff > 45%
• NF diff > 5%
• Cross Talk failure
• Level 3 failure – GOV of one of the FADEC
• FADEC auto selects SCR limit of healthy eng

ENG MATCHING
• Auto matches NG or Q in twin eng op
• Achieved through cross talk
• Selection via NG/TQ matching switch
• Principle:
• NG Matching - eng with lower NG increases its NG to match other
• Q Matching - eng with lower Q increases its Q to match other 24
SCHEMATIC: FADEC - IADS

25
 EMERGENCIES
• There are three levels of indication
• Level 3 failure
• Indicated as GOV 1 or GOV 2 in the cockpit
• Fuel metering likely to be frozen

• Level 2 failure
• Indicated as FADEC 1 DGRAD or FADEC 2 DGRAD in the cockpit.
• Degradation of function, But essential functions are not affected

• Level 1 failure
• Indicated as FADEC1 REDUND FAIL or FADEC 2 REDUND FAIL in the cockpit in IDLE state or STOP state
of the eng
• No effect on engine control
• Over speed shutdown
• Over speed Monitor System Failure

26
EMERGENCIES

27
 EMERGENCIES
FADEC Degrade Failures & Implications
(Critical Cases Highlighted)
SCHEMATIC PAGE DESCRIPTION OF ACTION
DISPLAY FAILURE

FADEC 1/2 HOT MAX FADEC - If warning continues, then :

internal temp. reached - Shut down affected engine
120° C. - Land: ASA practicable in OEI

ENG 1/2 FUEL PR LOW Engine 1/2 fuel pressure FADEC DEGRAD caption will accompany this
low failure. Actions as per Engine Fuel Pressure
Low

ENG 1/2 P3 DRIFT Compressor delivery - Return to base

pressure sensor for ENG - Avoid harsh maneuvers.
1/2 - Avoid rapid collective increase.
CAUTION: Temporary Power Loss of the
affected engine may occur

30
LEVEL 3 FAILURE

31
LEVEL 2 FAILURE

32
LEVEL 2 FAILURE

33
LEVEL 1 FAILURE

34
LEVEL 1 FAILURE

35
 COMMON QUESTIONS

• WHAT ALL DOES FADAC CONTROLS?

• WHY DO WE PUT BOTH FADEC ON SIMULTANEOUSLY?

• WHAT IF WE PUT ENGINE TO IDLE WHILE FADEC OFF?

• WHAT IF WE PUT FADEC OFF DURING FLIGHT?

• HOW DOES FADEC FAILS?

• WHAT IF ONE FADEC FAILS DURING FLIGHT?

• WHAT IF ONE FADEC CAN’T COMMUNICATE WITH IADS?

• WHY IS CHANNEL SELECTION SWITCH GIVEN?

36
